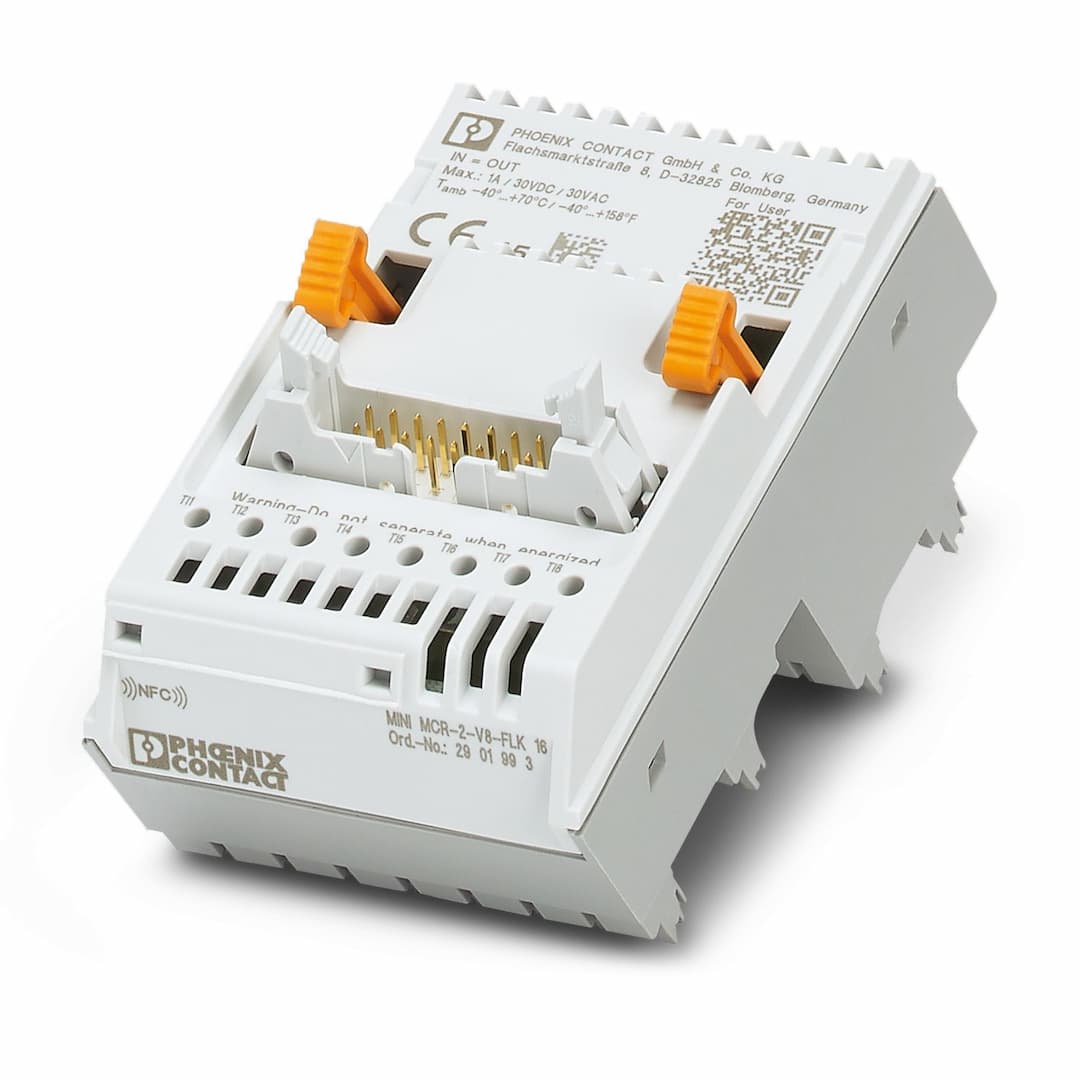

MINI MCR-2-V8-FLK 16
Product ID:19461
Updated: 2026/7/12
Key Features
- 1Fits effortlessly into tight spaces, maximizing your work area.
- 2Engineered for quick setup and integration, reducing downtime and labor costs.
- 3Features a V8 connector system and accommodates up to 16 channels, making it versatile for a wide range of signal inputs.
- 4Built with robust materials for operation in challenging industrial environments.
- 5Ensures accurate and consistent signal handling, enhancing system reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Interface module | Product family | MINI Analog Pro |
| Article revision | 02 | Overvoltage category | II |
| Pollution degree | 2 | Rated insulation voltage | 50 V |
| Test voltage input/output | 0.5 kV | Number of inputs | 8 |
| Configurable/programmable | no | Maximum input current | 4 A (500 mA per ch.) |
| Maximum input voltage | 30 V | Number of outputs | 8 |
| Configurable/programmable | no | Connection method | IDC/FLK pin strip |
| Number of positions | 16 | Pitch | 2.54 mm |
| Ex installation (EPL) | Gc
Div. 2 | Width | 51.1 mm |
| Height | 104.1 mm | Depth | 56.8 mm |
| Color | gray (RAL 7042) | Housing material | PBT 7% GF V0 |
| Degree of protection | IP20 (Finger safety) | Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C | Permissible humidity (operation) | 5 % ... 95 % |
| Permissible humidity (storage/transport) | 5 % ... 95 % | Altitude | ≤ 2000 m |
| Ambient temperature (operation) | -40 °C ... 70 °C | Rated insulation voltage | 50 V AC/DC |
| Height range | > 2000 m ... 3000 m | Ambient temperature (operation) | -40 °C ... 63 °C |
| Rated insulation voltage | 40 V AC/DC | Height range | > 3000 m ... 4000 m |
| Ambient temperature (operation) | -40 °C ... 56 °C | Rated insulation voltage | 30 V AC/DC |
| Height range | > 4000 m ... 5000 m | Ambient temperature (operation) | -40 °C ... 49 °C |
| Rated insulation voltage | 30 V AC/DC | Certificate | CE-compliant |
| Identification | II 3 G Ex ec IIC Gc | Certificate | PxCIF16ATEX2901993U |
| Identification | II 3 G Ex ec IIC Gc | Certificate | PxCIF22UKEX2901993U |
| Identification | Ex ec IIC Gc | Certificate | IECEx BVS 22.0005U |
| Identification | Ex ec IIC Gc | Certificate | 2022122308115723 |
| Identification | UL 61010 Listed
Class I, Div. 2, Groups A, B, C, D T5
Class I, Zone 2, Group IIC T5 | Identification | 2Ex nA IIC T4 Gc U |
| Certificate | BY/112 02.01 TP012 103.01 00081 | Standards/regulations | GB 3836.1
GB 3836.3 |
| Mounting position | any | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Specifications may be subject to change without notice
