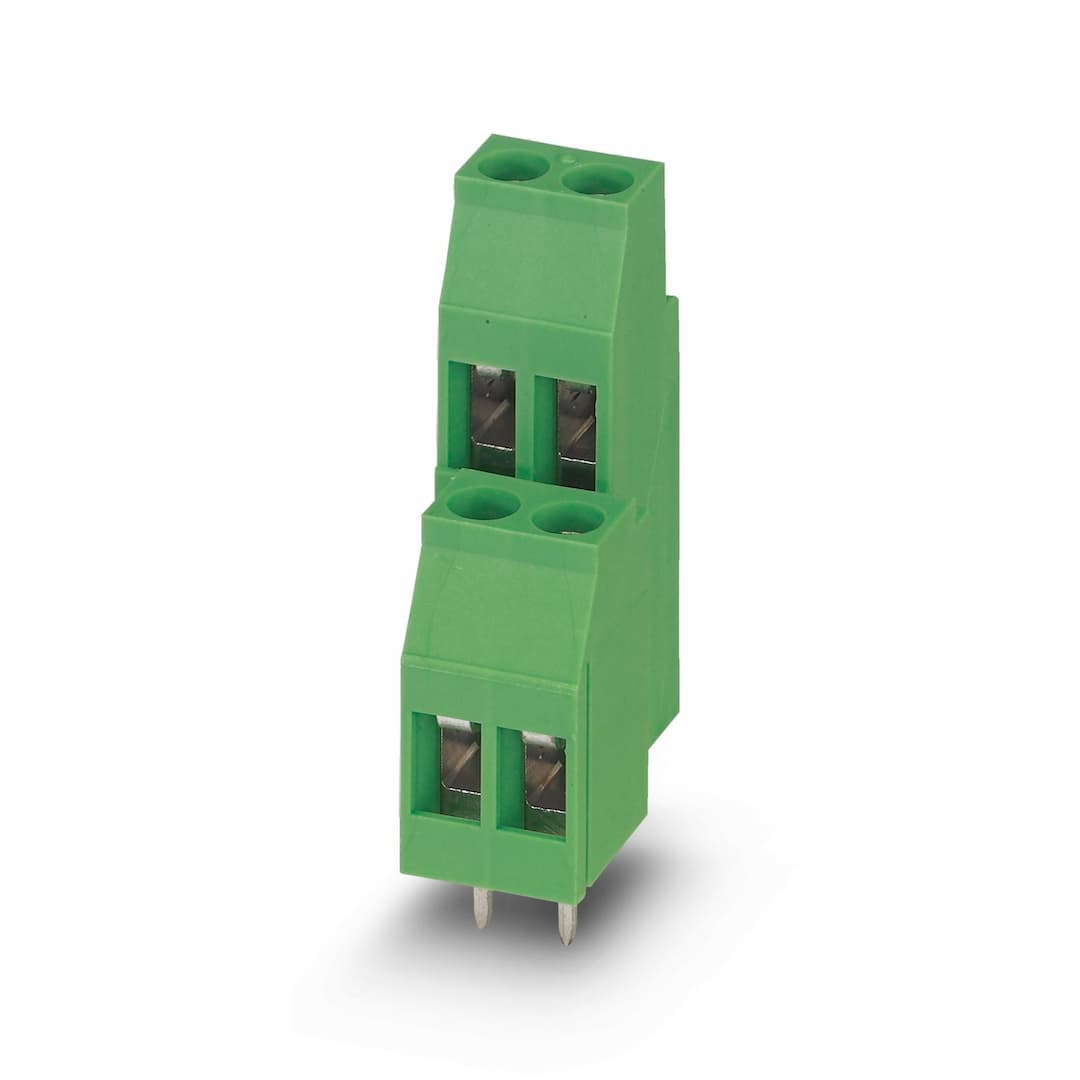

MKKDS 3/ 2-5,08-EX
Product ID:22714
Updated: 2026/7/12
Key Features
- 1Handles up to 22A for efficient power distribution.
- 2Designed with a wave soldering mounting method for reliable connections.
- 3Meets EN-VDE standards for safe and reliable operation.
- 4Supports solid and stranded conductors with various cross-sections.
- 5Constructed from high-quality insulating material (PA) for long-lasting performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Printed circuit board terminal | Product family | MKKDS 3-EX |
| Type | PC terminal block can be aligned | Number of positions | 2 |
| Pitch | 5.08 mm | Pin layout | Linear pinning |
| Article revision | 04 | Rated voltage (II/2) | 630 V |
| Rated voltage (III/2) | 400 V | Rated surge voltage (II/2) | 4 kV |
| Rated surge voltage (III/2) | 4 kV | Rated surge voltage (III/3) | 4 kV |
| Mounting type | Wave soldering | Pin layout | Linear pinning |
| Drive form screw head | Slotted (L) | Color (Housing) | green (RAL 6021) |
| Contact surface | Tin Sn | Width | 12.7 mm |
| Installed height | 31.5 mm | Height | 36.5 mm |
| Length of the solder pin | 5 mm | Length | 22.3 mm |
| Length of the solder pin | 5 mm | Hole diameter | 1.3 mm |
| Pitch | 5.08 mm | Pin spacing | 15.24 mm |
| Type of packaging | packed in cardboard |
Specifications may be subject to change without notice
