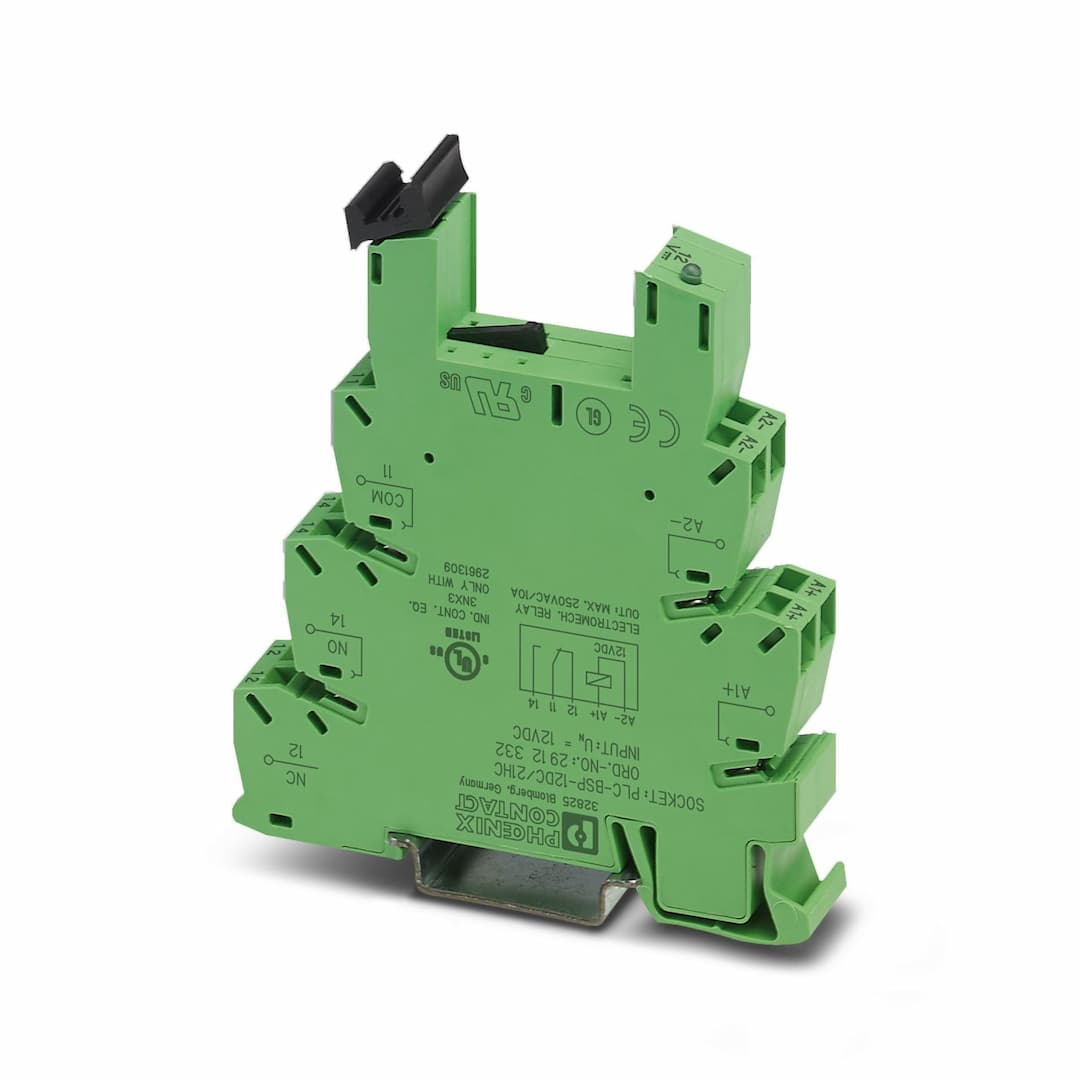

PLC-BSP- 12DC/21HC
Product ID:18899
Updated: 2026/8/2
Key Features
- 1High current connectivity with 8-pin configuration.
- 2Compact 14mm width for DIN rail mounting.
- 3Compatible with PLC applications and BSP-12DC/21HC specifications.
- 4Green color for easy identification in industrial settings.
- 5GL, UL, and cUL recognized for safety and reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
| Product family | PLC-INTERFACE | Application | High continuous currents |
| Set comprises | 2912264 PLC-RSP- 12DC/21HC | Operating mode | 100% operating factor |
| Article revision | 06 | Nominal input voltage U | 12 V DC |
| Protective circuit | Freewheeling diode | Nominal input voltage U | 12 V DC |
| Connection method | Spring-cage connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
| Width | 14 mm | Height | 80 mm |
| Depth | 94 mm | Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -40 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
