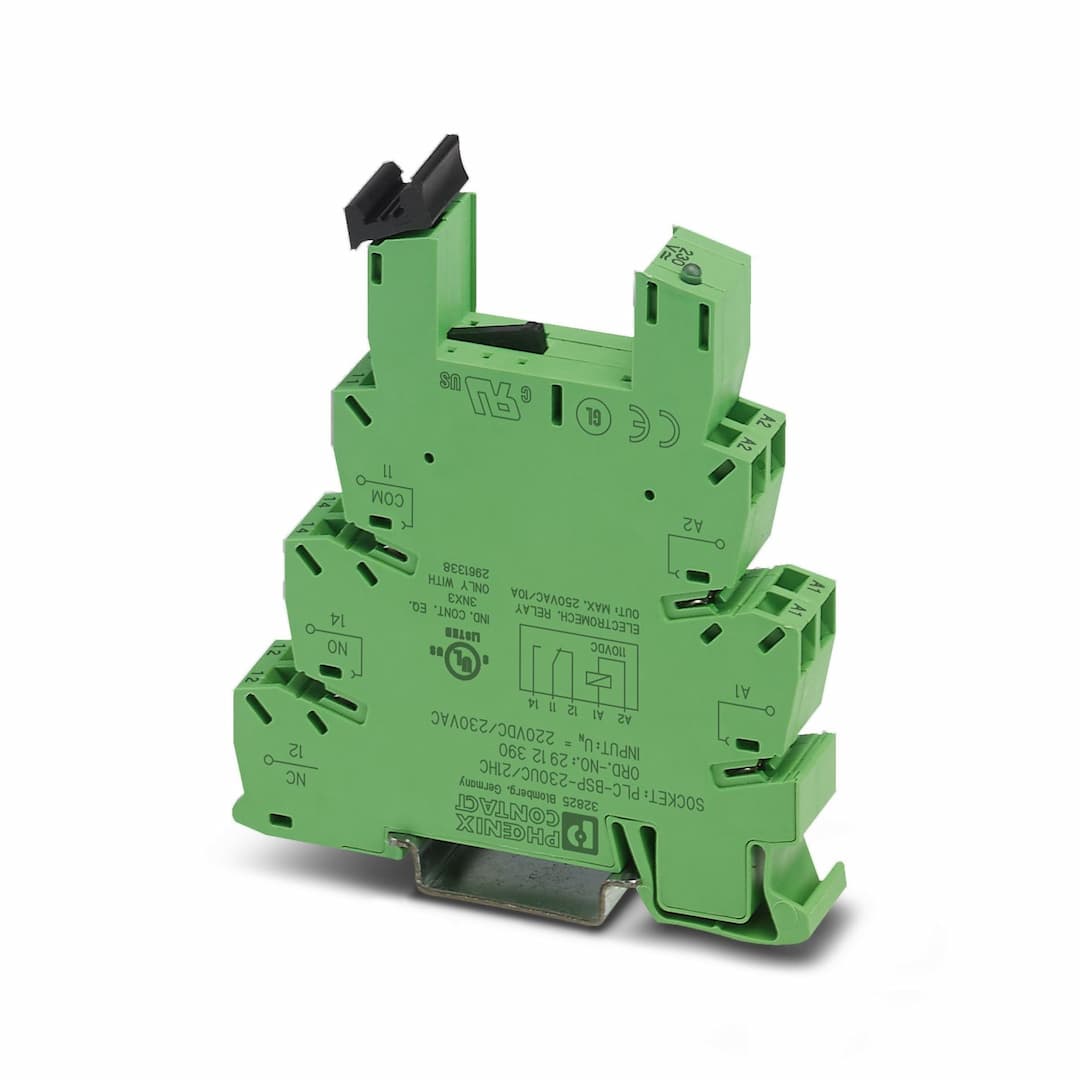

PLC-BSP-230UC/21HC
Product ID:21131
Updated: 2026/7/30
Key Features
- 1High Continuous Currents: Handles high continuous currents with spring-cage connection.
- 2DIN Rail Mounting: Designed for easy mounting on DIN rail NS 35/7,5, 1 PDT.
- 3Wide Operating Temperature: Operates efficiently between -40 °C and 55 °C.
- 4Versatile Conductor Cross Sections: Accommodates conductor cross sections from 0.14 mm² to 2.5 mm².
- 5EMC Class A Compliance: Meets EMC class A product standards for reliable operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
| Product family | PLC-INTERFACE | Application | High continuous currents |
| Set comprises | 2912329 PLC-RSP-230UC/21HC | Operating mode | 100% operating factor |
| Article revision | 06 | Nominal input voltage U | 230 V AC/DC |
| Protective circuit | Bridge rectifier | Nominal input voltage U | 230 V AC/DC |
| Connection method | Spring-cage connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
| Width | 14 mm | Height | 80 mm |
| Depth | 94 mm | Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -40 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
