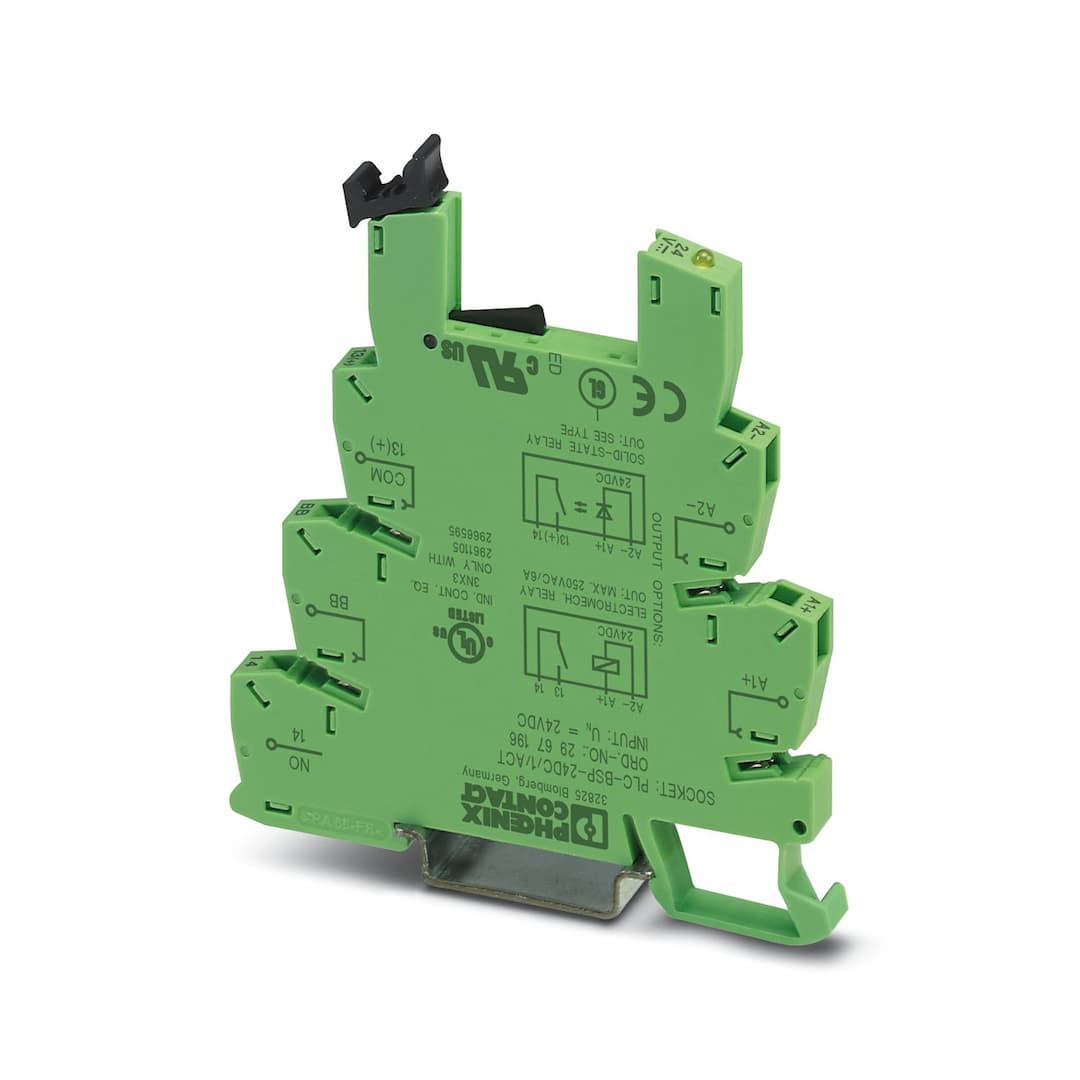

PLC-BSP- 24DC/ 1/ACT
Product ID:19974
Updated: 2026/7/31
Key Features
- 1Compact Design: 6.2 mm width for space-efficient mounting.
- 2Reliable Operation: 100% operating factor ensures consistent performance.
- 3Versatile Connectivity: Spring-cage connection for solid and flexible conductors.
- 4Durable Construction: Made in Germany with high-quality materials.
- 5Compliant with Standards: Meets EMC Class A and UL 94 V0 flammability rating.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
| Product family | PLC-INTERFACE | Application | Output function |
| Set comprises | 2967345 PLC-RSP- 24DC/ 1/ACT
2967507 PLC-OSP- 24DC/ 24DC/ 2/ACT | Operating mode | 100% operating factor |
| Compatible components | Miniature relay, REL-MR-24DC/21AU, REL-MR-24DC/21; Miniature optocoupler, OPT-24DC/24DC/2, OPT-24DC/24DC/100, OPT-24DC/230AC/1 | Protective circuit | Damping diode, polarity protection diode |
| Nominal input voltage U | 24 V DC | Protective circuit | Freewheeling diode |
| Nominal input voltage U | 24 V DC | Compatible components | Miniature relay, REL-MR-24DC/21AU, REL-MR-24DC/21; Miniature optocoupler, OPT-24DC/24DC/2, OPT-24DC/24DC/100, OPT-24DC/230AC/1 |
| Connection method | Spring-cage connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
| Status display | LED | Width | 6.2 mm |
| Height | 80 mm | Depth | 94 mm |
| Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 (Housing) |
| Ambient temperature (operation) | -40 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
Specifications may be subject to change without notice
