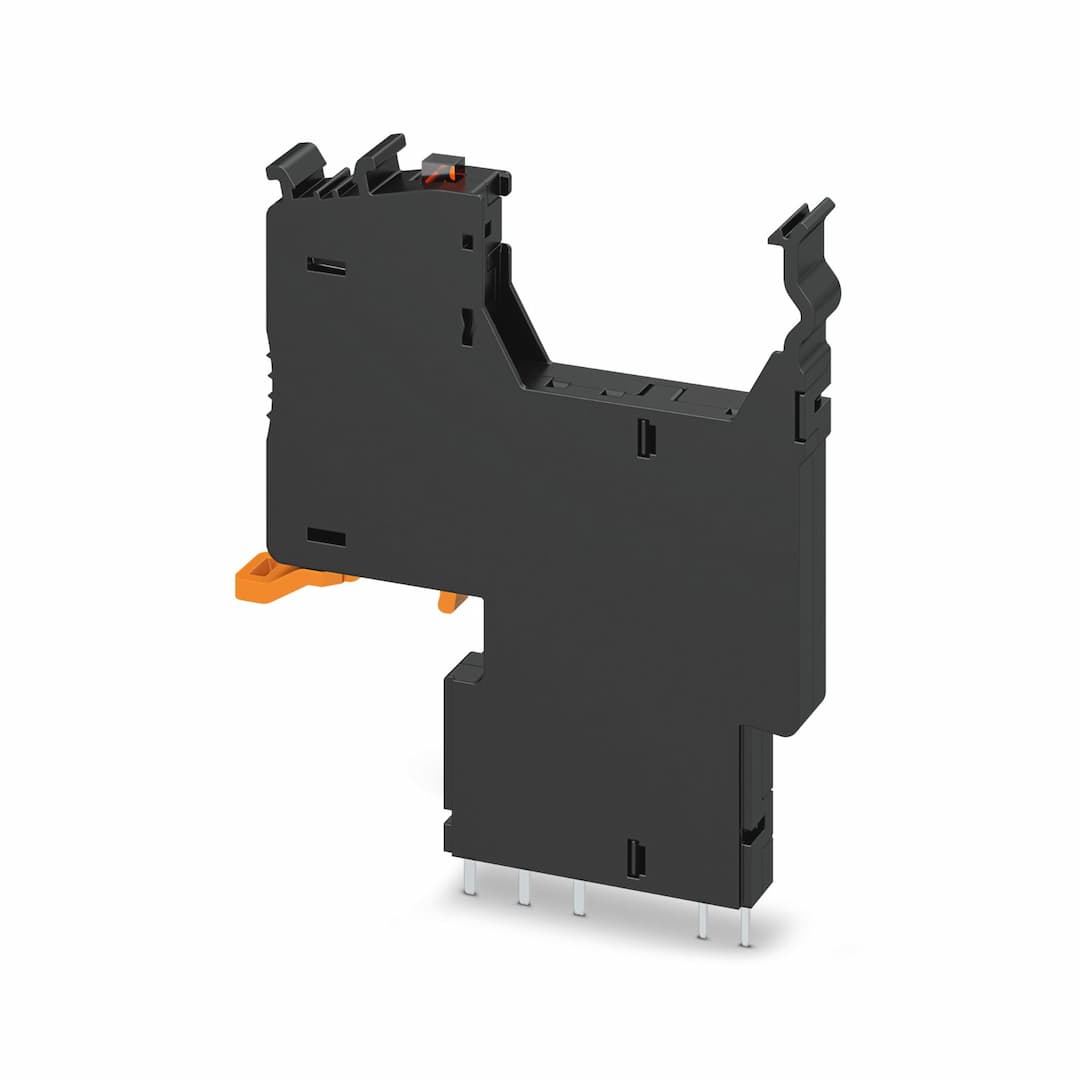

PLC-FA-I-5X20-12-24UC
Product ID:22153
Updated: 2026/7/12
Key Features
- 1Compact Design: 6.2 mm width, 80 mm height, 130 mm depth.
- 2Versatile Voltage Range: Operates on 12-24 V AC/DC.
- 3LED Indication: Alerts with a red LED for fuse failure.
- 4High Breaking Capacity: 100 A breaking capacity.
- 5Durable Construction: IP20 and IP54 degree of protection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Notes on operation | If the fuse is defective, the downstream circuit is not off load. Current consumption when fuse is defective. | Product type | Adapter |
| Product family | PLC-INTERFACE | Application | Adapter |
| Article revision | 02 | Insulation | Safe isolation, reinforced insulation |
| Overvoltage category | III | Pollution degree | 2 |
| Current consumption | 0.6 mA ... 2.3 mA (LED display) | Fuse | G / 5 x 20 |
| Rated insulation voltage | 250 V AC | Rated surge voltage | 6 kV |
| Current consumption | 0.6 mA ... 2.3 mA (LED display) | Width | 6.2 mm |
| Height | 80 mm | Depth | 130 mm |
| Degree of protection | IP20 | Degree of protection (Installation location) | IP54 (Installation location) |
| Ambient temperature (operation) | -40 °C ... 85 °C (observe derating) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 2000 m | Standards/regulations | DIN EN 50178 |
| Mounting position | any |
Specifications may be subject to change without notice
