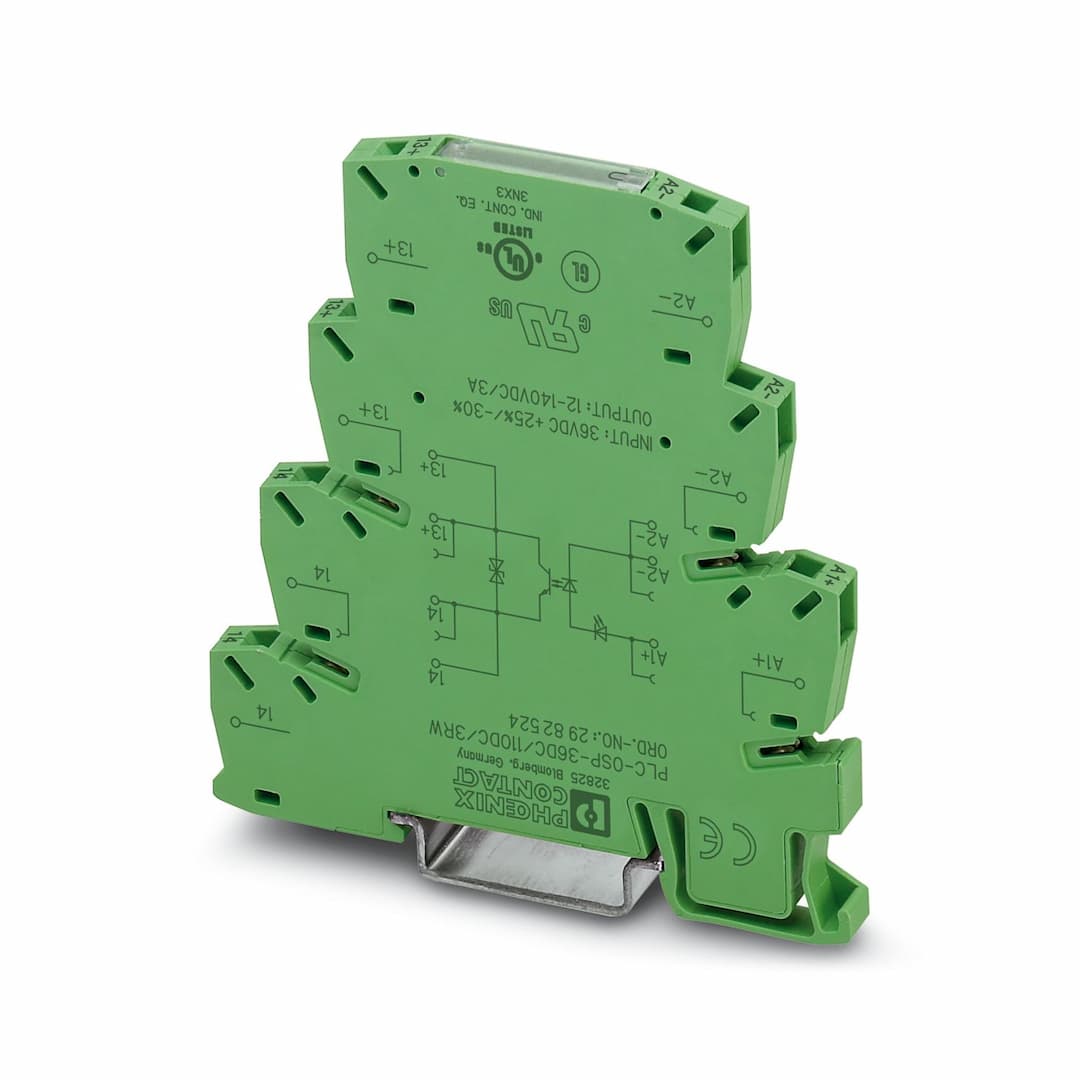

PLC-OSP- 36DC/110DC/ 3RW
Product ID:18181
Updated: 2026/8/3
Key Features
- 1Basic Insulation and Safety: Ensures reliable operation in harsh environments.
- 2Reverse Polarity Protection: Prevents damage from incorrect voltage connections.
- 31 N/O Contact: Provides seamless switching with no contact bounce.
- 4Spring-Cage Connection: Easy and secure connection method for mounting on DIN rails.
- 5Temperature Range: Operates between -25°C to +70°C, suitable for various industrial settings.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Solid-state relay module | Product family | PLC-INTERFACE |
| Application | Railway applications | Operating mode | 100% operating factor |
| Date of last data management | 07.05.2024 | Article revision | 04 |
| Insulation | Basic insulation | Overvoltage category | III |
| Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.43 W |
| Test voltage (Input/output) | 2.5 kV | Rated insulation voltage | 160 V DC |
| Rated surge voltage | 4 kV | Nominal input voltage U | 36 V DC |
| Input voltage range in reference to U | 0.7 ... 1.25 (t < 1 s = 0.6 ... 1.4 x U | Input voltage range | 25.2 V DC ... 45 V DC |
| Switching threshold "0" signal in reference to U | < 0.4 | Switching threshold "1" signal in reference to U | > 0.6 |
| Typical input current at U | 12 mA | Typical response time | 400 µs |
| Typical turn-off time | 100 µs | Operating voltage display | Yellow LED |
| Protective circuit | Reverse polarity protection; Series polarity protection diode
Surge protection | Surge voltage protection | > 150 V |
| Transmission frequency | 50 Hz | Contact switching type | 1 N/O contact |
| Design of digital output | electronic | Output nominal voltage | 110 V DC |
| Output voltage range | 12 V DC ... 140 V DC (t < 1 s = 1.40 x U | Limiting continuous current | 3 A (see derating curve) |
| Surge voltage protection | > 150 V | Voltage drop at max. limiting continuous current | < 150 mV |
| Output circuit | 2-conductor, floating | Protective circuit | Reverse polarity protection; Parallel polarity protection diode
Surge protection |
| Connection method | Spring-cage connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
| Width | 6.2 mm | Height | 80 mm |
| Depth | 86 mm | Color | green (RAL 6021) |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Standards/regulations | IEC 60664
EN 50178 |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
Specifications may be subject to change without notice
