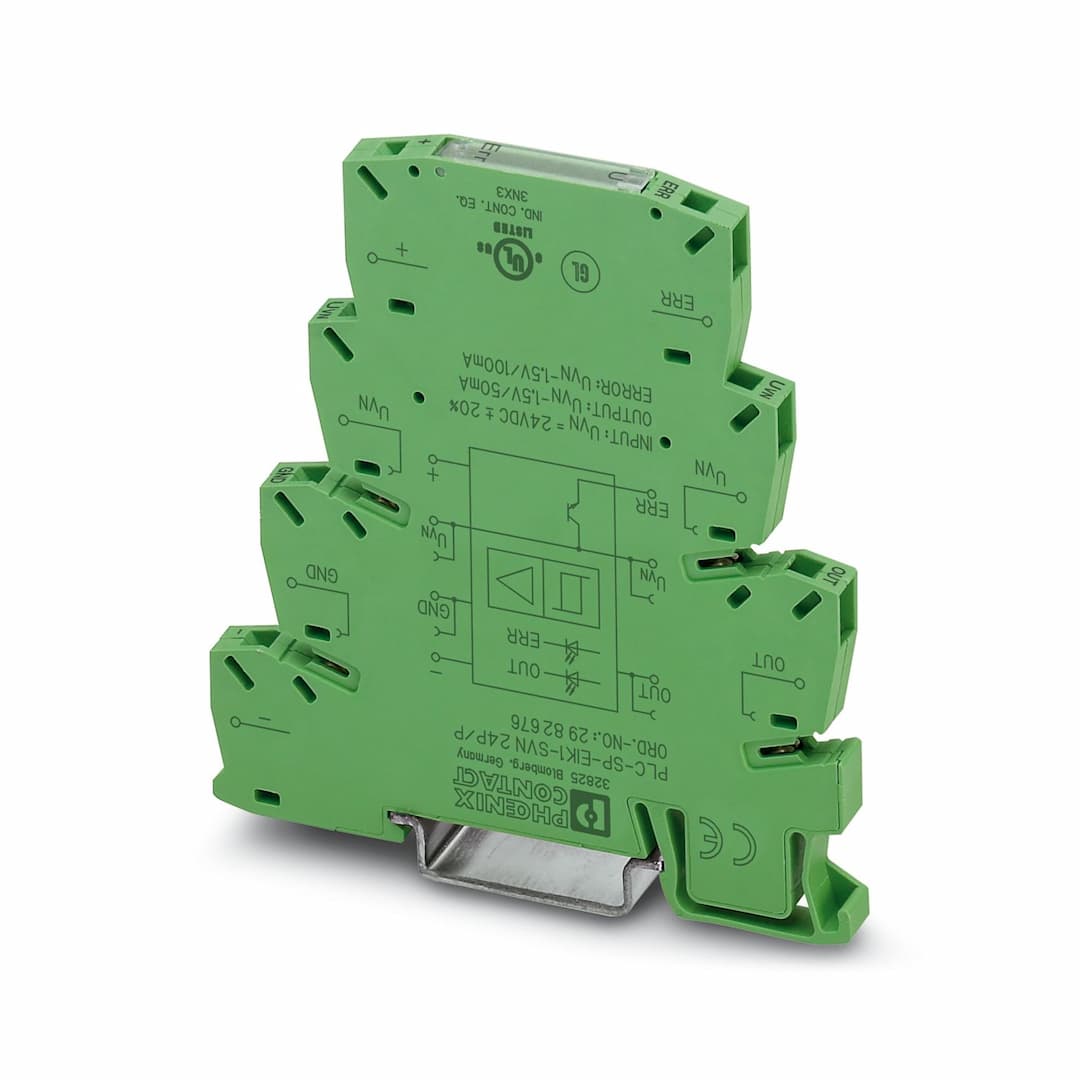

PLC-SP-EIK 1-SVN 24P/P
Product ID:20521
Updated: 2026/7/31
Key Features
- 1Reliable NAMUR Application: Designed for NAMUR proximity sensors applications.
- 2High Output Current: Handles 50mA output current.
- 3Efficient Power Consumption: Max current consumption approx. 70mA at 50mA output.
- 4Enhanced Safety Features: Includes reverse polarity protection and surge protection.
- 5Easy Installation: Compatible with PLC-V8 adapter and DIN rail mounting.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Solid-state relay module | Product family | PLC-INTERFACE |
| Application | NAMUR proximity sensors | Operating mode | 100% operating factor |
| Date of last data management | 13.10.2023 | Article revision | 04 |
| Insulation | Basic insulation | Overvoltage category | I |
| Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.34 W |
| Rated insulation voltage | 50 V DC | Rated surge voltage | 0.4 kV |
| Nominal input voltage U | 8.2 V DC ±10 % | Protective circuit | Surge protection; Suppressor diode |
| Non-load voltage | 8.2 V DC ±10 % | Switching point | ≥ 2.1 mA (In conductive state)
≤ 1.2 mA (In blocking state)
6.3 mA ... 10 mA (in the event of a short-circuit)
0 mA ... 0.35 mA (In the event of a wire break) |
| Switching hysteresis | approx. 0.2 mA | Internal resistance | approx. 1 kΩ |
| Cable length | < 30 m | Designation | Signal output |
| Contact switching type | 1 N/O contact | Design of digital output | electronic |
| Output nominal voltage | ≤ 100 mV (In conductive state)
U | Limiting continuous current | 50 mA |
| Transmission frequency | approx. 350 Hz | Voltage drop at max. limiting continuous current | ≤ 1.5 V (U |
| Status display | LED (green) | Error indication | Red LED |
| Protective circuit | Surge protection; Suppressor diode | Designation | Alarm output |
| Output nominal voltage | U | Limiting continuous current | 50 mA |
| Voltage drop at max. limiting continuous current | ≤ 2 V (U | Error indication | Red LED |
| Protective circuit | Surge protection; Suppressor diode | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
| Connection method | Spring-cage connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
| Height | 80 mm | Depth | 86 mm |
| Color | green (RAL 6021) | Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 50 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Standards/regulations | IEC 60664
EN 50178 | Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing | Mounting position | any |
