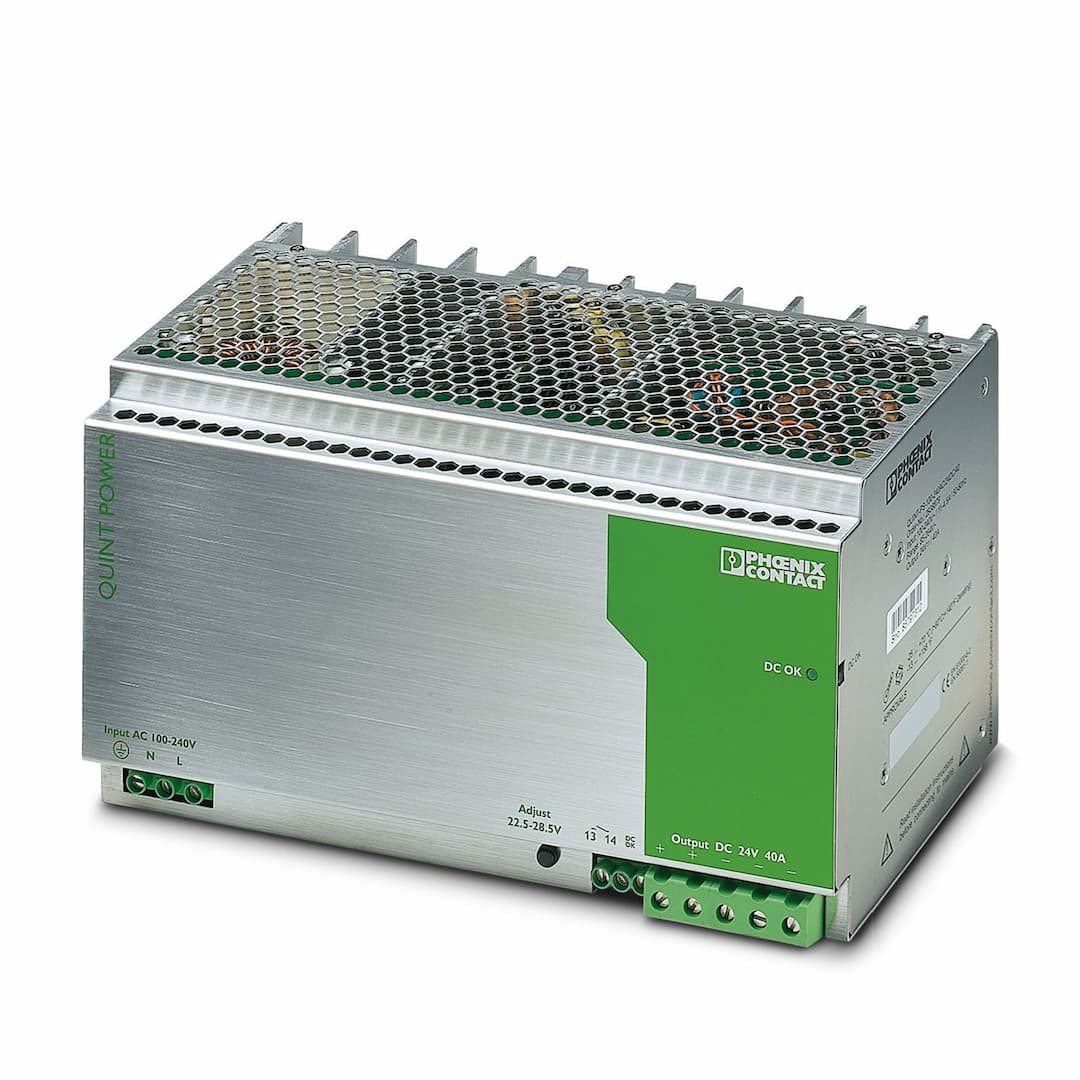

QUINT-PS-100-240AC/24DC/40/SO1
Product ID:17625
Updated: 2026/8/4
Key Features
- 1Wide-Range Input: Supports input voltages from 85 V AC to 264 V AC and 90 V DC to 350 V DC.
- 2Robust Surge Protection: Features type 3 surge protection with a protective plug and base element.
- 3Remote Monitoring: Includes active transistor switching output and floating relay contact for remote monitoring.
- 4High Efficiency: Operates at an efficiency of >92% for 230 V AC and nominal values.
- 5Durable Design: Meets IP20 degree of protection and operates within -25°C to 70°C ambient temperature range.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal input voltage range | 110 V AC ... 240 V AC | Nominal power consumption | 960 W |
| Nominal output voltage | 24 V DC | Nominal output current (I | 40 A |
| Output power | 960 W | Connection in series | yes |
| Connection method | Screw connection | Connection method | Screw connection |
| Number of phases | 1.00 | Product type | Power supply |
| Product family | QUINT POWER | Width | 240 mm |
| Height | 130 mm | Depth | 125 mm |
Specifications may be subject to change without notice
