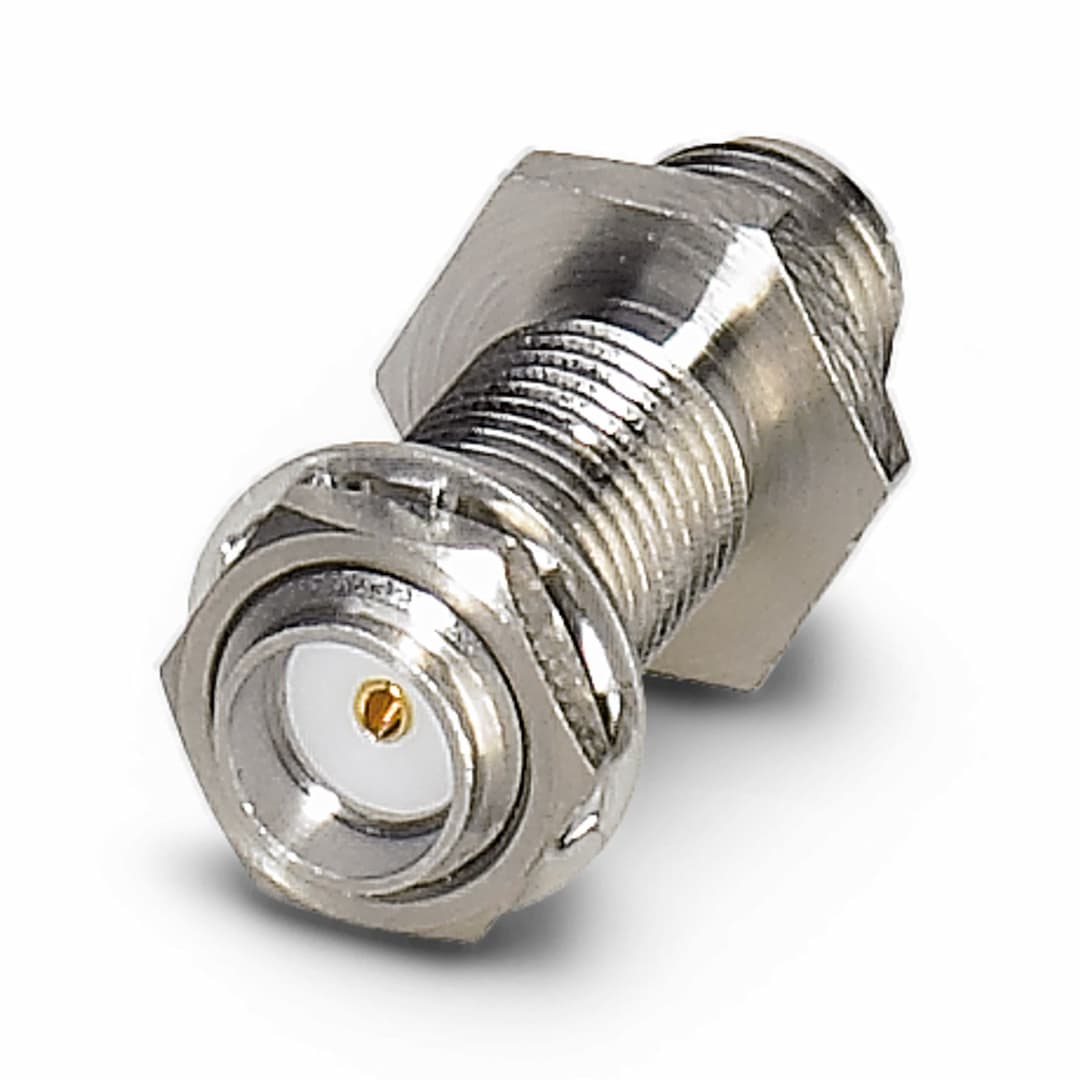

RAD-ADP-SMA/F-SMA/F
Product ID:20440
Updated: 2026/7/31
Key Features
- 1High-Quality Connectivity: Ensures reliable and efficient data transfer between devices.
- 2Technical Precision: Designed with precise SMA/F-SMA/F connections for optimal performance.
- 3Durable Construction: Built with brass (CuZn) housing for long-lasting durability.
- 4Wide Frequency Range: Supports frequencies from 0.3 GHz to 6 GHz, making it versatile for various applications.
- 5Compact Design: Measuring 17.2 mm in width, 15.2 mm in height, and 8 mm in diameter for easy installation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Coaxial adapter | Frequency range | 0.3 GHz ... 6 GHz |
| Impedance | 50 Ω | Connection method | SMA (female) -> SMA (female) |
| Width | 22.2 mm | Diameter | 9.5 mm |
| Hole diameter | 6.5 mm | Housing material | Brass (CuZn) |
| Degree of protection | IP20 | Ambient temperature (operation) | -65 °C ... 165 °C |
| Ambient temperature (storage/transport) | -65 °C ... 165 °C |
Specifications may be subject to change without notice
