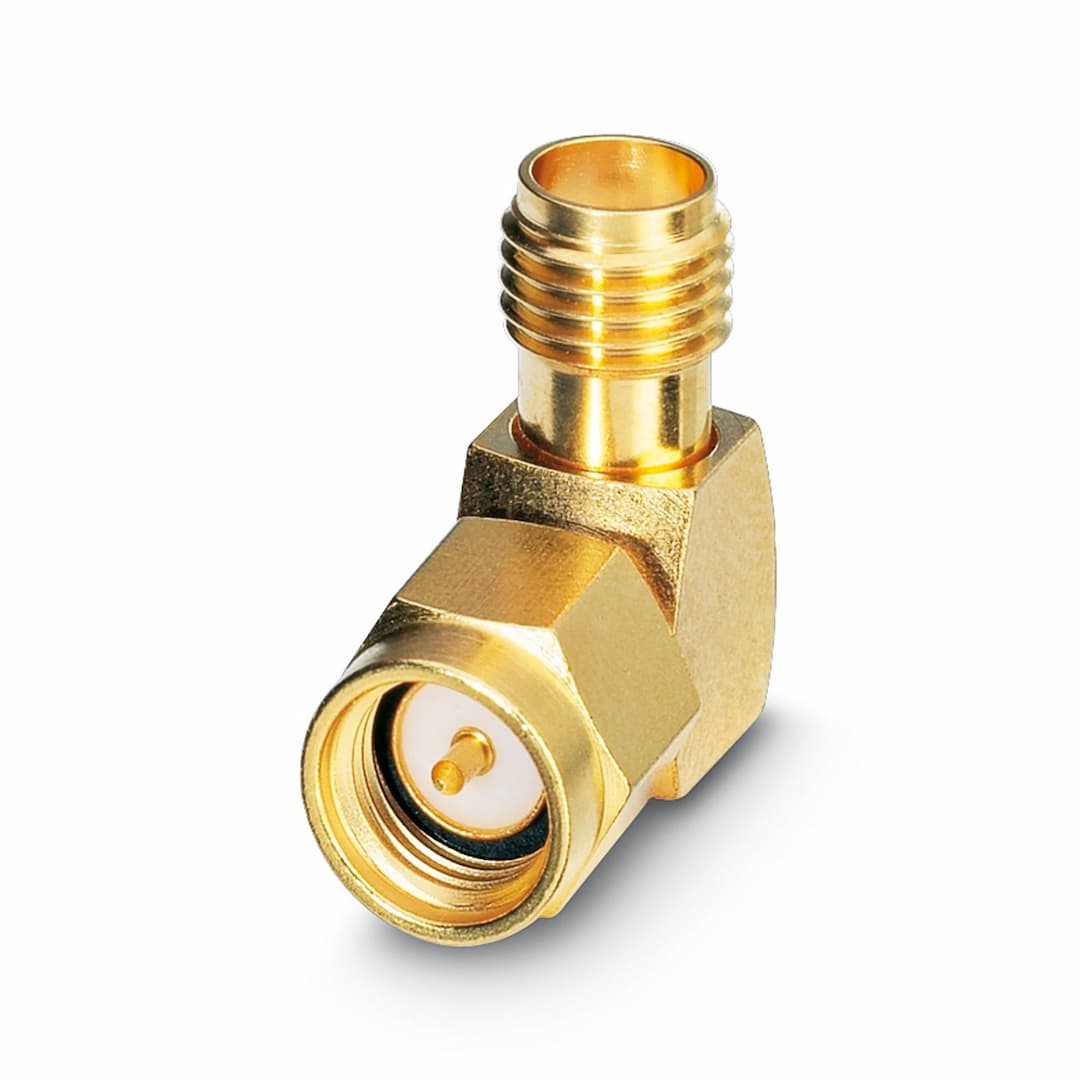

RAD-ADP-SMA/F-SMA/M-90
Product ID:21076
Updated: 2026/7/30
Key Features
- 1Supports frequencies from 0.3 GHz to 6 GHz.
- 2SMA (female) to SMA (male) with a 90° angle.
- 3Made from brass (CuZn) for robust performance.
- 4Ensures reliable operation in various environments.
- 5Designed for control cabinet feed-through and industrial settings.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Coaxial adapter | Frequency range | 0.3 GHz ... 6 GHz |
| Impedance | 50 Ω | Connection method | SMA (female) -> SMA (male) |
| Width | 17.2 mm | Height | 15.2 mm |
| Diameter | 8 mm | Housing material | Brass (CuZn) |
| Degree of protection | IP20 | Ambient temperature (operation) | -65 °C ... 165 °C |
| Ambient temperature (storage/transport) | -65 °C ... 165 °C |
Specifications may be subject to change without notice
