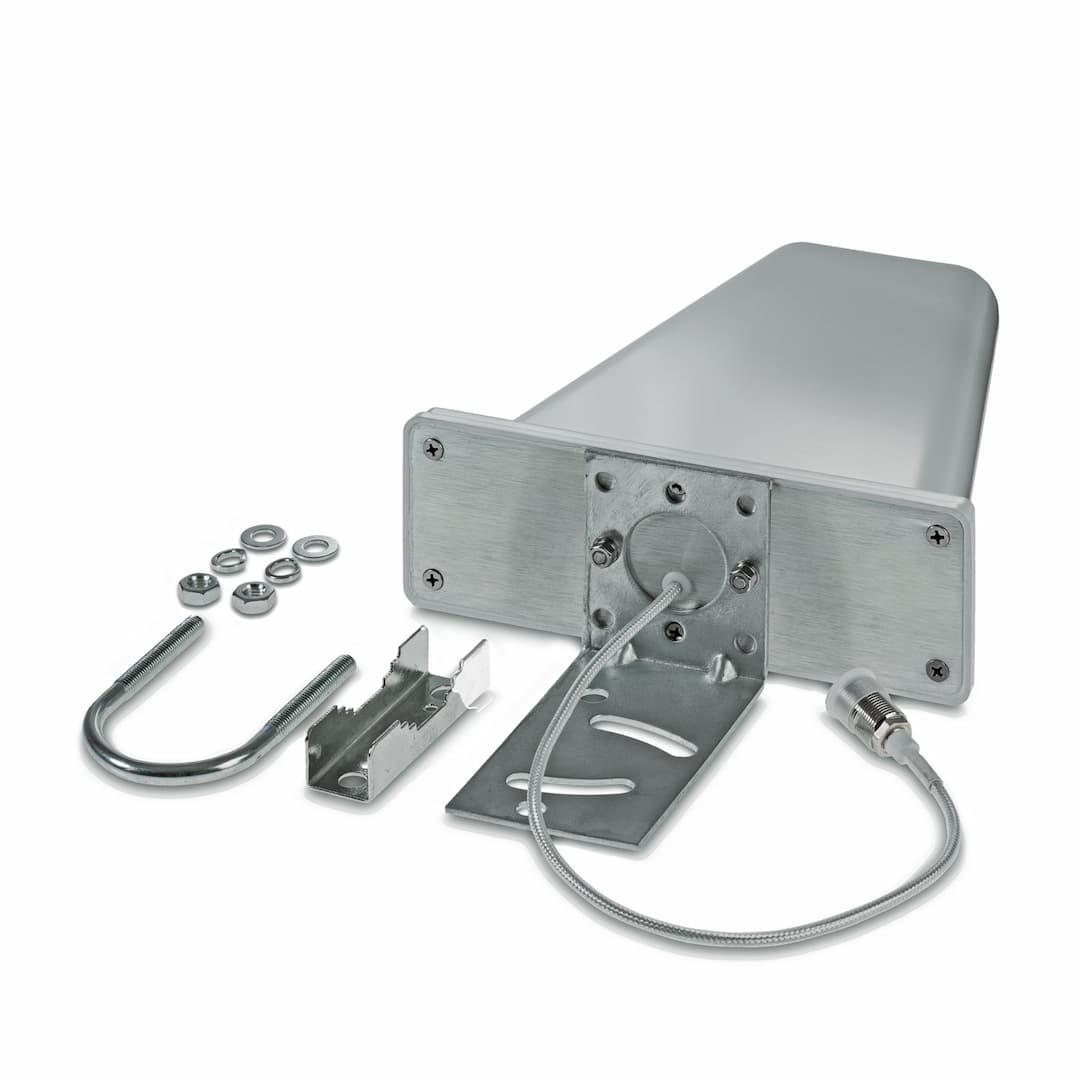

RAD-ANT-GSM/UMTS-QB-YAGI-8
Product ID:23616
Updated: 2026/7/12
Key Features
- 18 dBi gain for strong signal reception and transmission.
- 265° vertical and 90° horizontal beamwidth for comprehensive coverage.
- 3Designed for harsh environments, ensuring reliable performance in demanding conditions.
- 4Operates in the 1900 MHz frequency band, suitable for GSM/UMTS networks.
- 5Built to withstand extreme temperatures and rugged use, ensuring long-lasting service.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Antenna | Gain | 8 dBi |
| Vertical beamwidth | 65 ° | Horizontal beamwidth | 90 ° |
| Frequency band | 1900 MHz
850 MHz
1800 MHz
800 MHz
2100 MHz
900 MHz | Frequency range | 800 MHz ... 2500 MHz |
| Impedance | 50 Ω | Connection method | N (female) |
| Width | 211 mm | Height | 66 mm |
| Length | 292 mm | Connecting cable | yes |
| Ambient temperature (operation) | -40 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Specifications may be subject to change without notice
