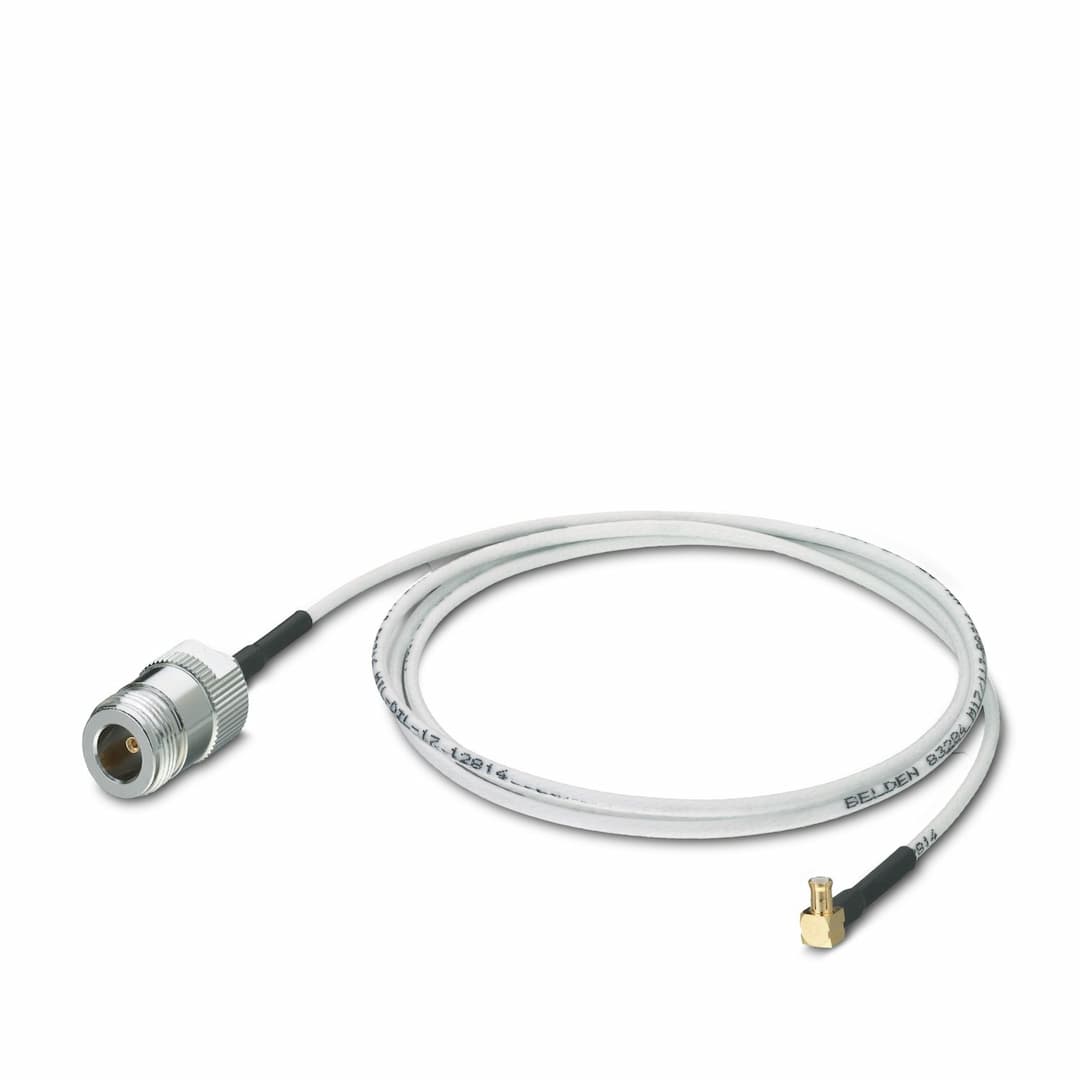

RAD-CON-MCX-N-SB
Product ID:18725
Updated: 2026/8/2
Key Features
- 1Flexible MCX to N Fitting: Connects MCX male to N female connectors.
- 2Low Attenuation: 0.9 dB at 900 MHz for reliable signal transmission.
- 3Durable Construction: Stranded inner conductor for robust performance.
- 4Wide Compatibility: Suitable for OEM point-to-point and multipoint data expandable IO applications.
- 5Easy Installation: Compact design with 2.5 mm outer diameter for smooth integration.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Adapter cable | Frequency range | 0.1 GHz ... 1 GHz |
| Impedance | 50 Ω | Connection method | MCX (male) |
| Connection method | N (female) | Outer sheath, material | Fluorinated ethylene propylene (FEP) |
| Cable length | 1.2 m | Cable type | RG 316 |
| External cable diameter | 2.50 mm | Outer sheath, material | Fluorinated ethylene propylene (FEP) |
| Bending radius, long-term | 25.40 mm | Ambient temperature (operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Specifications may be subject to change without notice
