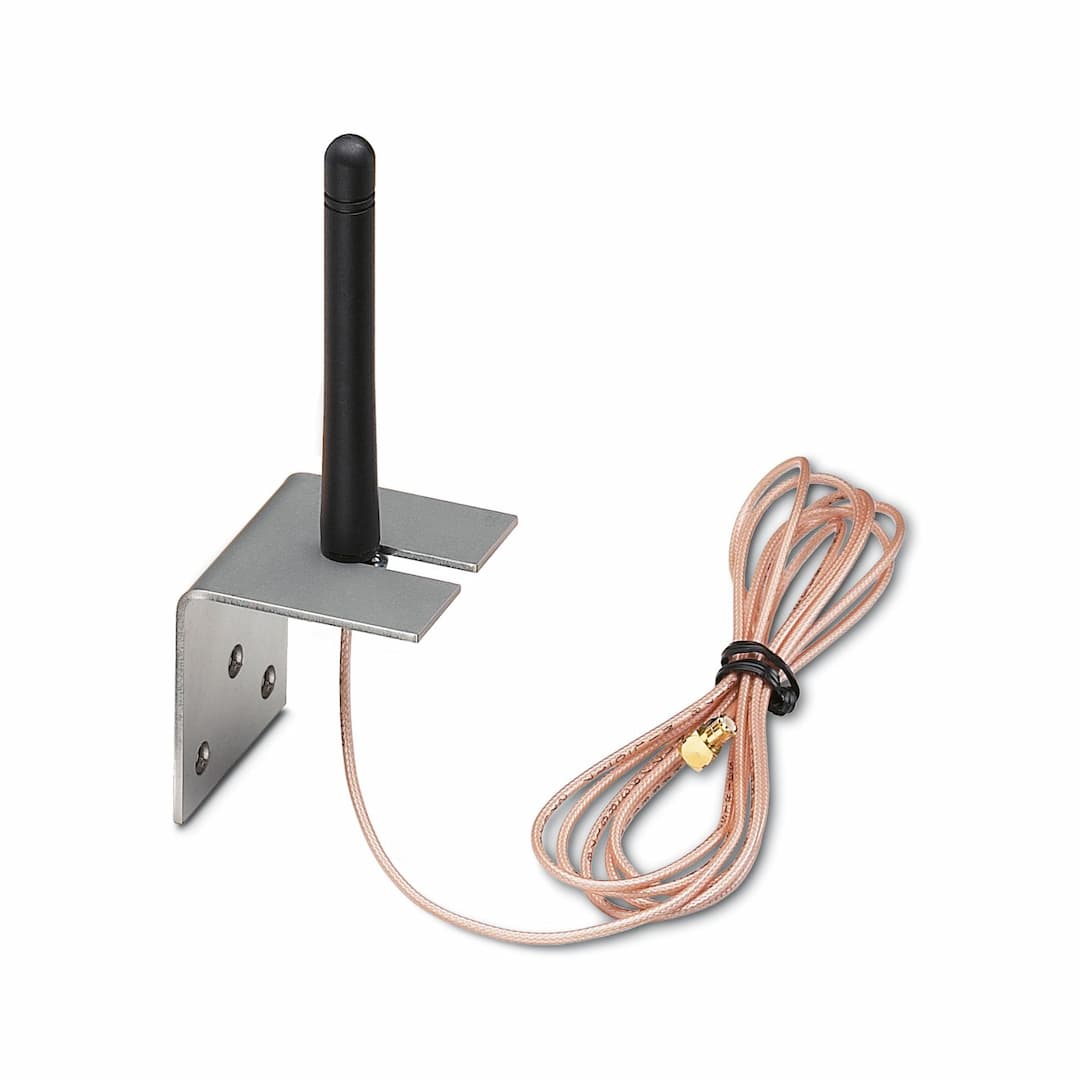

RAD-ISM-2400-ANT-OMNI-2-1
Product ID:17088
Updated: 2026/7/12
Key Features
- 1Omnidirectional antenna with a horizontal beamwidth of 360° and vertical beamwidth of 75°.
- 2IP65 degree of protection ensures reliability in harsh environments.
- 3Includes a 1.5 m connecting cable and mounting bracket for wall mounting.
- 4Suitable for mobile and point-to-multipoint applications with a small range.
- 52 dBi gain, linear vertical polarization, 50 Ω impedance, and RSMA (male) connection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Antenna | Gain | 2 dBi |
| Vertical beamwidth | 75 ° | Horizontal beamwidth | 360 ° |
| Polarization | Linear vertical | Frequency band | 2.4 GHz |
| Frequency range | 2.4 GHz | Impedance | 50 Ω |
| Connection method | MCX (male) | Width | 7.8 mm |
| Height | 82.5 mm | Material | Polyurethane
Polycarbonate PC
V2A |
| Outer sheath, material | Fluorinated ethylene propylene (FEP) | Cable length | 1.50 m |
| Connecting cable | yes | External cable diameter | 2.50 mm |
| Outer sheath, material | Fluorinated ethylene propylene (FEP) | Smallest bending radius, fixed installation | 25.4 mm |
| Degree of protection | IP65 | Ambient temperature (operation) | -20 °C ... 65 °C |
| Ambient temperature (storage/transport) | -30 °C ... 75 °C | Mounting type | Wall mounting |
Specifications may be subject to change without notice
