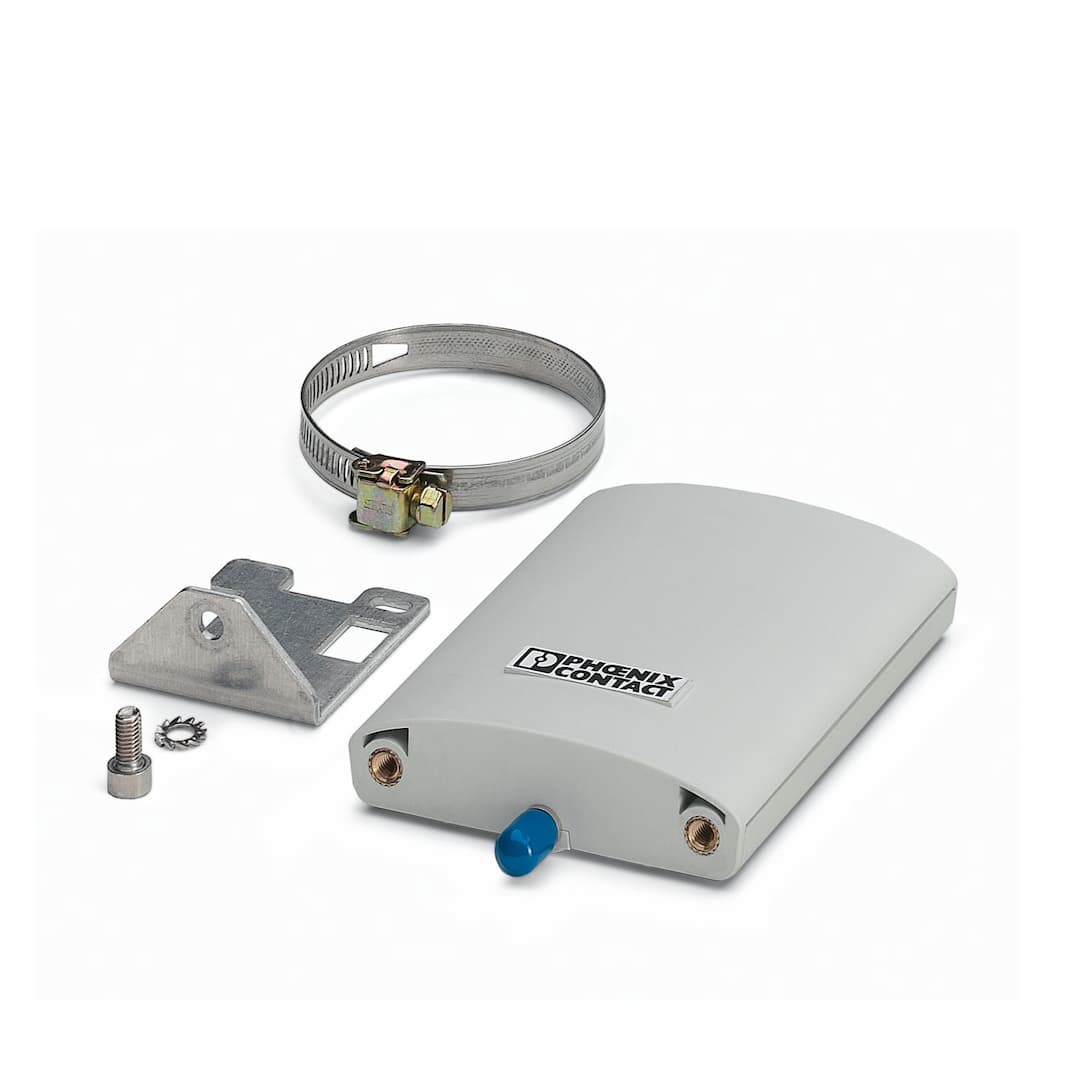

RAD-ISM-2400-ANT-PAN- 8-0
Product ID:19418
Updated: 2026/8/5
Key Features
- 1High-Gain Performance: 8 dBi gain for enhanced signal strength.
- 2Linear Polarization: Ensures stable and efficient signal transmission.
- 3Wide Beamwidth: Horizontal beamwidth of 75° and vertical beamwidth of 70° for broader coverage.
- 4IP55 Protection: Robust against environmental factors like dust and water.
- 5Versatile Mounting: Compatible with mast mounting or wall mounting options.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Antenna | Gain | 8 dBi |
| Vertical beamwidth | 70 ° | Horizontal beamwidth | 75 ° |
| Polarization | Linear vertical | Article revision | 04 |
| Frequency band | 2.4 GHz | Frequency range | 2.3 GHz ... 2.8 GHz |
| Impedance | 50 Ω | Connection method | SMA (female) |
| Outside diameter | 40 mm ... 60 mm (Mast) | Width | 80 mm |
| Height | 100 mm | Length | 20 mm |
| Outside diameter | 40 mm ... 60 mm (Mast) | Material | ASA
V2A
V2A |
| Connecting cable | no | Degree of protection | IP55 |
| Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 75 °C |
| Wind velocity | 12.34568 km/h (Has a force of 15 N) | Mounting type | Mast mounting or wall mounting |
| Assembly note | any |
Specifications may be subject to change without notice
