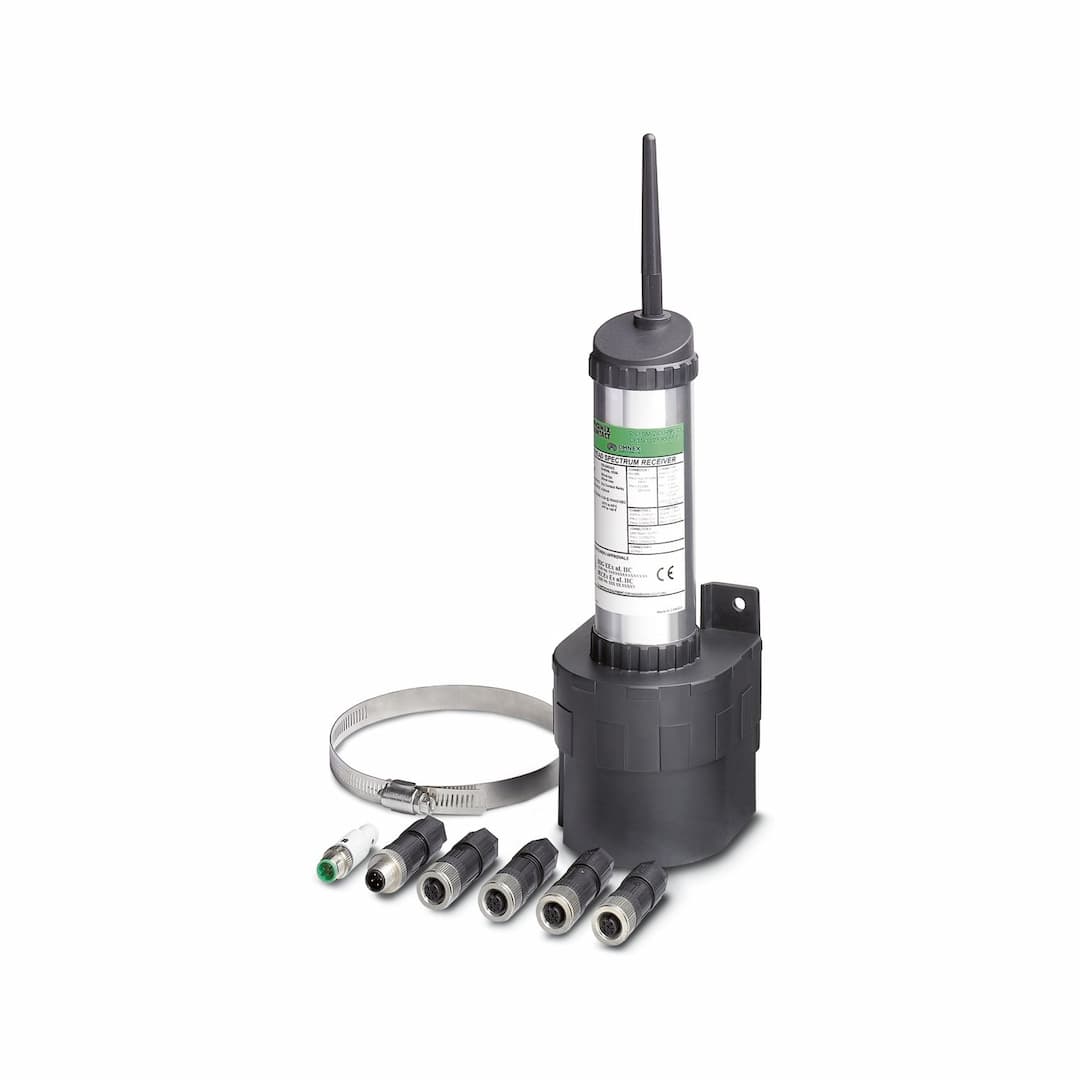

RAD-ISM-2400-PIPE-RX
Product ID:17125
Updated: 2026/8/5
Key Features
- 1Unidirectional 2400 MHz Transmission: Reliable wireless communication for point-to-multipoint connections.
- 2Robust IP65 Protection: Durable against harsh industrial environments with high protection against dust and water.
- 3Wide Supply Voltage Range: Operates on 85 V AC to 250 V AC, ensuring flexibility in various power configurations.
- 4Easy Installation: No parameterization or programming required, simplifying setup and deployment.
- 5Trusted Wireless Technology: Utilizes frequency hopping method for secure and reliable data transmission.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Wireless module | Supply voltage | 24 V DC -50 % / +25 % (at U |
| Supply voltage range | 12 V DC ... 30 V DC | Typical current consumption | 115 mA |
| Max. current consumption | 145 mA (at 24 V DC) | Output name | 2x relay output + 1 x RF link |
| Contact switching type | 3 floating changeover contacts | Contact material | Ag, gold-plated |
| Maximum switching voltage | 250 V AC/DC | Limiting continuous current | 0.5 A |
| Service life electrical | 8x 10 | Mechanical service life | 1x 10 |
| Output name | Current output | Current output signal | 4 mA ... 20 mA |
| Load/output load current output | 700 Ω (at U | Connection method | Spring-cage connection (M12) |
| Conductor cross section flexible min. | 0.14 mm² | Conductor cross section flexible max. | 0.5 mm² |
| Conductor cross section AWG min. | 20 | Conductor cross section AWG max. | 26 |
| Direction | Uni-directional | Channel distance | 100 kHz |
| Number of channel groups | 9 | Number of channels per group | 63 |
| Frequency band | 2.4 GHz | Width | 92 mm |
| Height | 98 mm | Depth | 340 mm |
| Material (Housing) | Aluminum
PBT | Degree of protection | IP65 |
| Degree of protection | IP65 | Ambient temperature (operation) | -20 °C ... 65 °C
-4 °F ... 149 °F |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
| Identification | II 3 G Ex nL IIC T4 | Note | Please follow the special installation instructions in the documentation! |
| Identification | Ex nL IIC T4 | Electromagnetic compatibility | Conformance with R&TTE directive 1999/5/EC |
Specifications may be subject to change without notice
