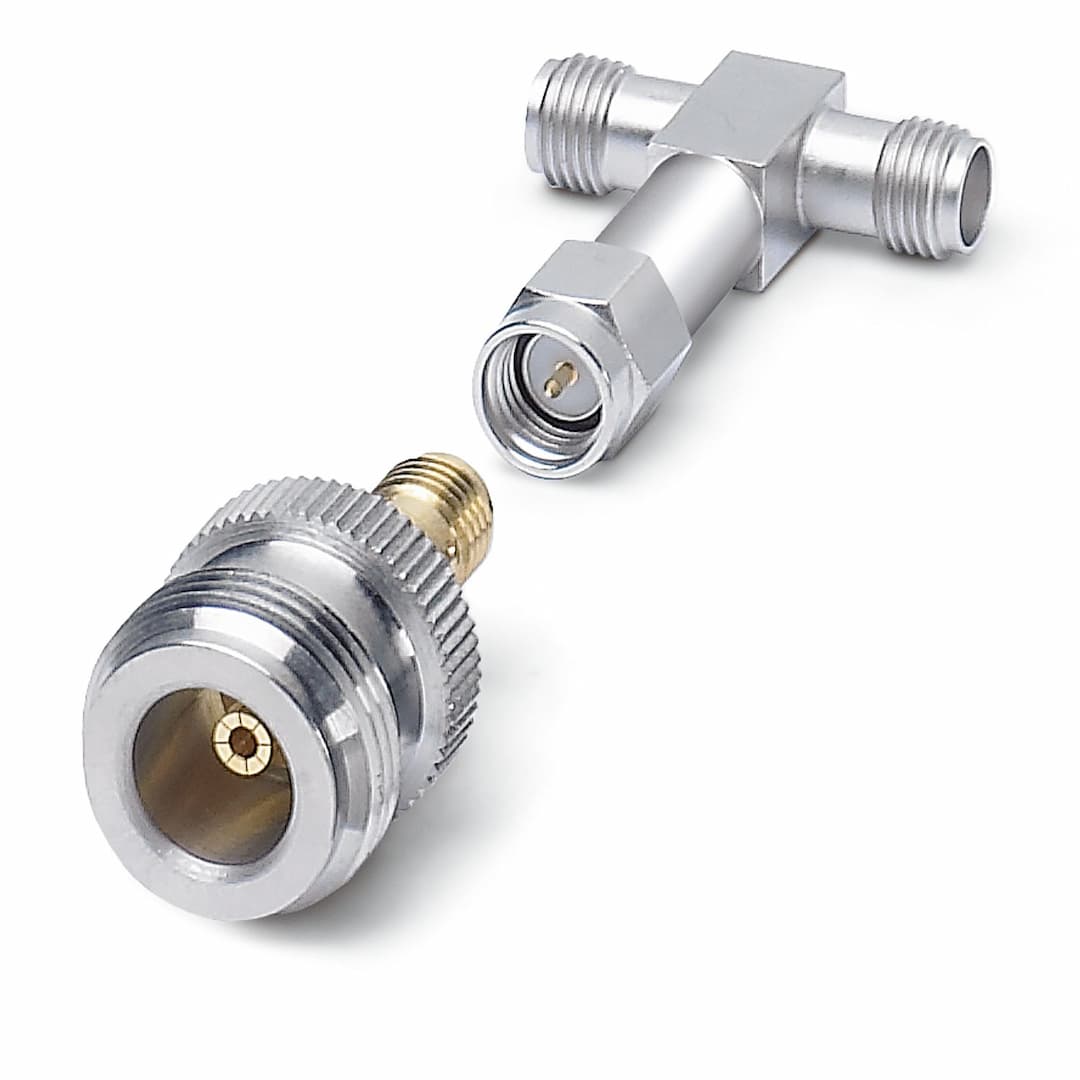

RAD-ISM-2400-SPL-2-SMA
Product ID:17620
Updated: 2026/8/4
Key Features
- 1Distributes antenna signals with minimal loss, ensuring clear reception.
- 2Compact and lightweight, ideal for various applications.
- 3Includes self-vulcanizing weather protection tape for outdoor use.
- 4Simple to install with SMA (female) on the upper ends and SMA (male) on the lower end.
- 5Meets WEEE/RoHS compliance standards for environmental safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Coaxial adapter | Impedance | 50 Ω |
| Connection method | 2x SMA (female), 1x SMA (male) | Frequency range | 2.3 GHz ... 2.5 GHz |
| Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Mounting type | Screw mounting |
| Mounting position | male connector/female connector |
Specifications may be subject to change without notice
