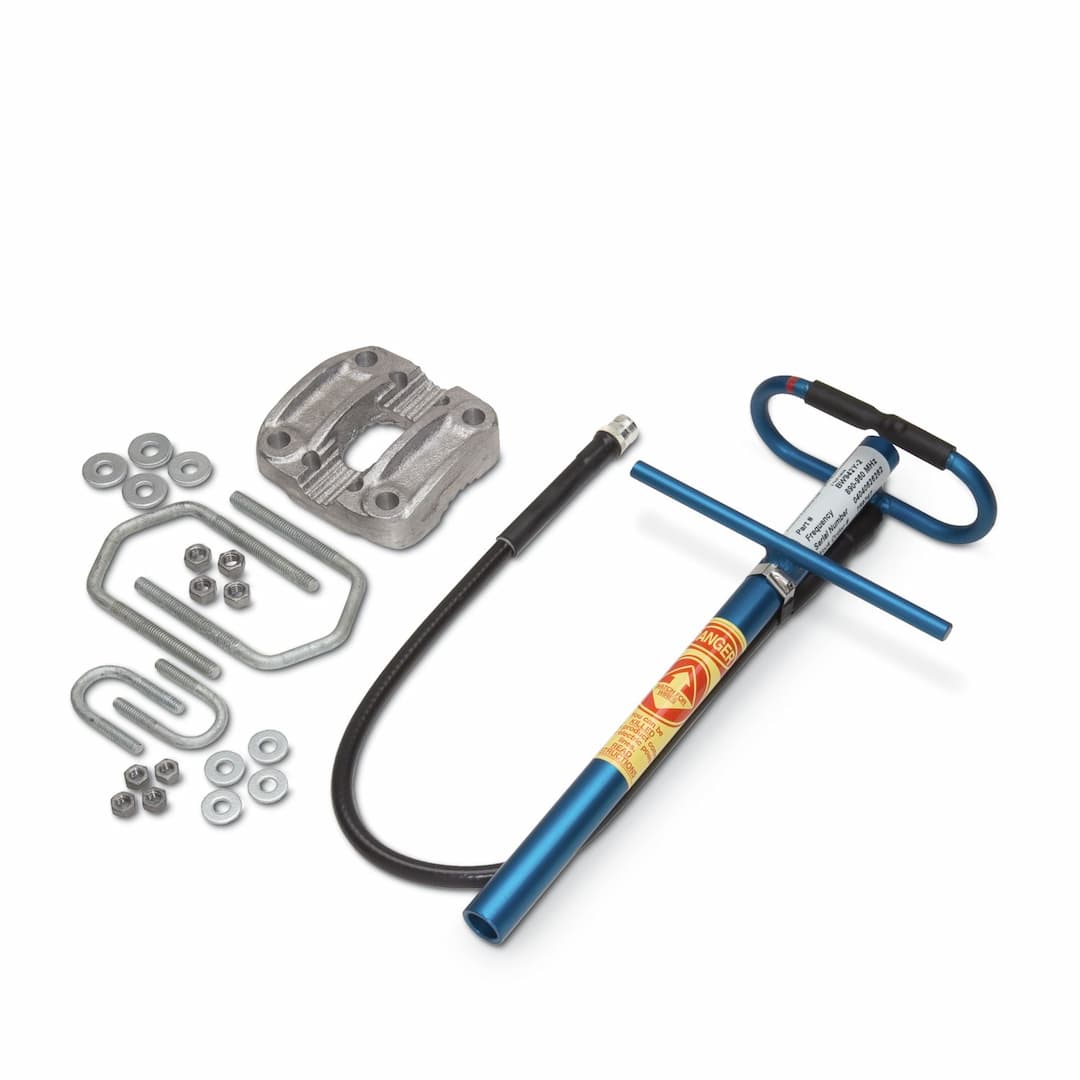

RAD-ISM-900-ANT-YAGI-3-N
Product ID:18691
Updated: 2026/7/12
Key Features
- 1High-Gain Performance: Achieve reliable communication with a gain of 5 dBi.
- 2IP65 Protection: Durable and resistant to harsh environments with IP65 protection.
- 3Versatile Applications: Suitable for stationary and linear mobile applications.
- 4Point-to-Point Connectivity: Ideal for establishing stable point-to-point connections.
- 5Long-Range Coverage: Extend your communication range with a horizontal beamwidth of 168°.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note on application | Only for industrial use | Product type | Antenna |
| Gain | 5 dBi | Vertical beamwidth | 78 ° |
| Horizontal beamwidth | 168 ° | Polarization | Linear vertical or horizontal |
| Frequency band | 900 MHz | Frequency range | 900 MHz |
| Impedance | 50 Ω | Connection method | N (female) with cable (0.6 m) |
| Outside diameter | 32 mm ... 60 mm (Mast) | Width | 6 cm |
| Height | 17 cm | Outside diameter | 32 mm ... 60 mm (Mast) |
| Material | Aluminum
V2A
V2A | Cable length | 0.60 m |
| Connecting cable | yes | Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 80 °C | Wind velocity | 15.4321 km/h |
| Mounting type | Mast mounting |
Specifications may be subject to change without notice
