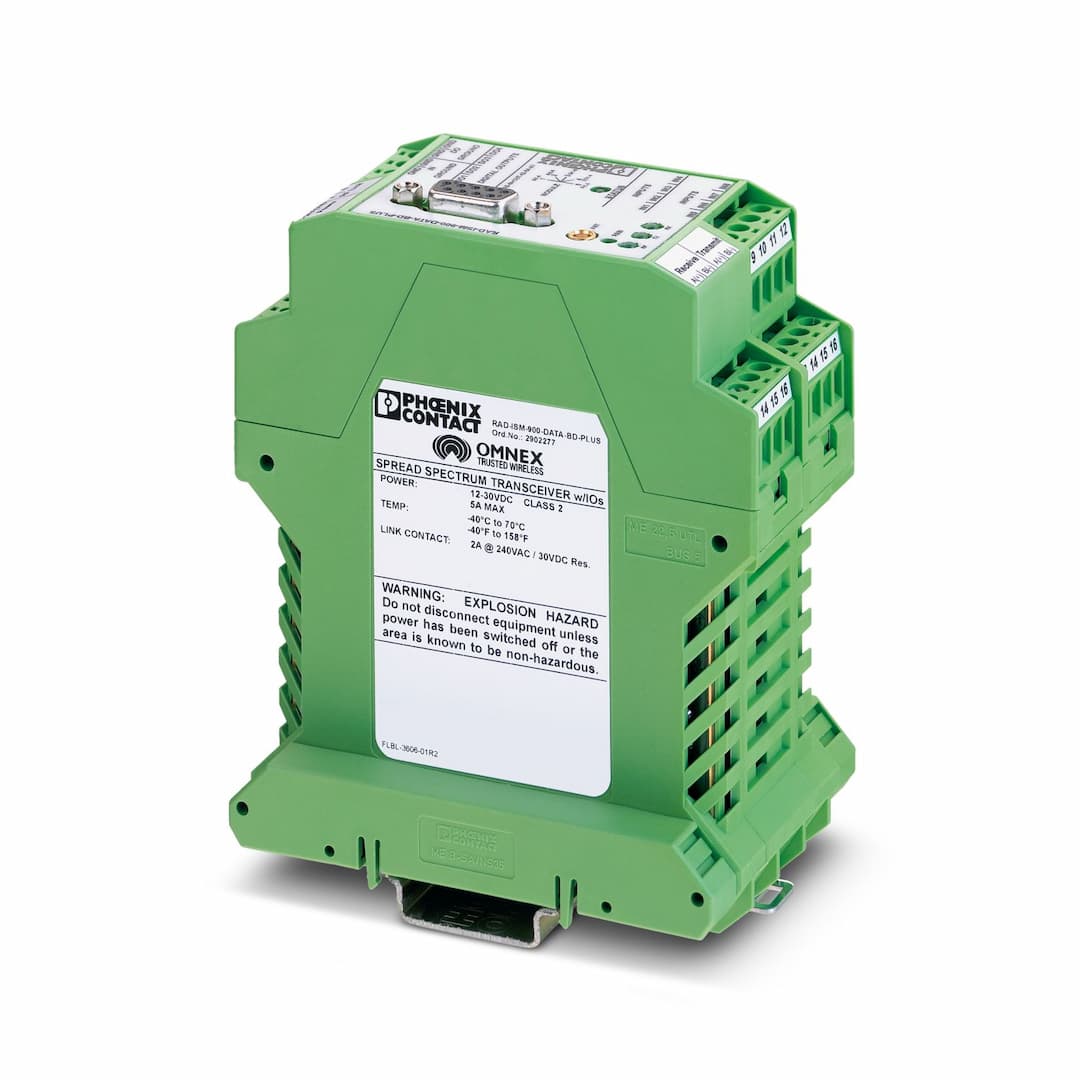

RAD-ISM-900-DATA-BD-PLUS
Product ID:17673
Updated: 2026/8/4
Key Features
- 1Wireless Transceiver with RS-232 and RS-485/RS-422 Interfaces: Supports bi-directional communication for various industrial applications.
- 2Operates in 900 MHz ISM Band: Utilizes the license-free 902 MHz to 928 MHz frequency range for seamless operation.
- 3High Input/Output Capacity: Allows up to 8 analog/digital/pulse inputs and 4 outputs onboard for extensive connectivity.
- 4Compact Design: Measures 64 mm wide, 99 mm high, and 114.5 mm deep, making it suitable for DIN rail mounting.
- 5Durable Construction: Features a polyamide PA non-reinforced housing with an aluminum heatsink for enhanced durability and heat dissipation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Wireless module | Supply voltage | 24 V DC |
| Supply voltage range | 12 V DC ... 30 V DC | Max. current consumption | 4.1 A |
| Power consumption | 4.1 W (maximum) | Switching threshold "0" signal, voltage | ≤ 2.4 V DC |
| Switching threshold "1" signal voltage | ≥ 2.6 V DC | Description of the input | Analog input |
| Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA (with external resistor) | Input resistance current input | 10 kΩ |
| Description of the input | Digital input | Input resistance current input | 10 kΩ |
| Output name | Digital outputs | Number of outputs | 4 |
| Maximum switching voltage | 40 V DC | Max. switching current | 500 mA (sinking) |
| Connection method | Screw connection | Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Cross section AWG | 24 ... 14 | Screw thread | M3 |
| Data rate | 1,2 / 2,4 / 9,6 / 19,2 / 38,4 kBit/s | Connection method | D-SUB-9 female connector |
| File format/coding | Asynchronous | Data flow control/protocols | RTS/CTS |
| Data rate | 1,2 / 2,4 / 9,6 / 19,2 / 38,4 kBit/s | Connection method | COMBICON plug-in screw terminal block |
| Direction | Bi-directional | Frequency | 900 MHz |
| Frequency range | 902 MHz ... 928 MHz | Number of channel groups | 4 |
| Number of channels per group | 63 | Transmission power | 1 W |
| Transmit capacity, maximum | 30 dBm | Minimum receiver sensitivity | -110 dBm |
| Operating modes | bidirectional | Frequency band | 900 MHz |
| Width | 64 mm | Height | 99 mm |
| Depth | 114.5 mm | Color | green |
| Housing material | Polyamide PA non-reinforced with aluminum heatsink | Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Permissible humidity (operation) | 0 % ... 90 % | Conformance | FCC Directive, Part 15.247 |
| Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 | Mounting position | any |
Specifications may be subject to change without notice
