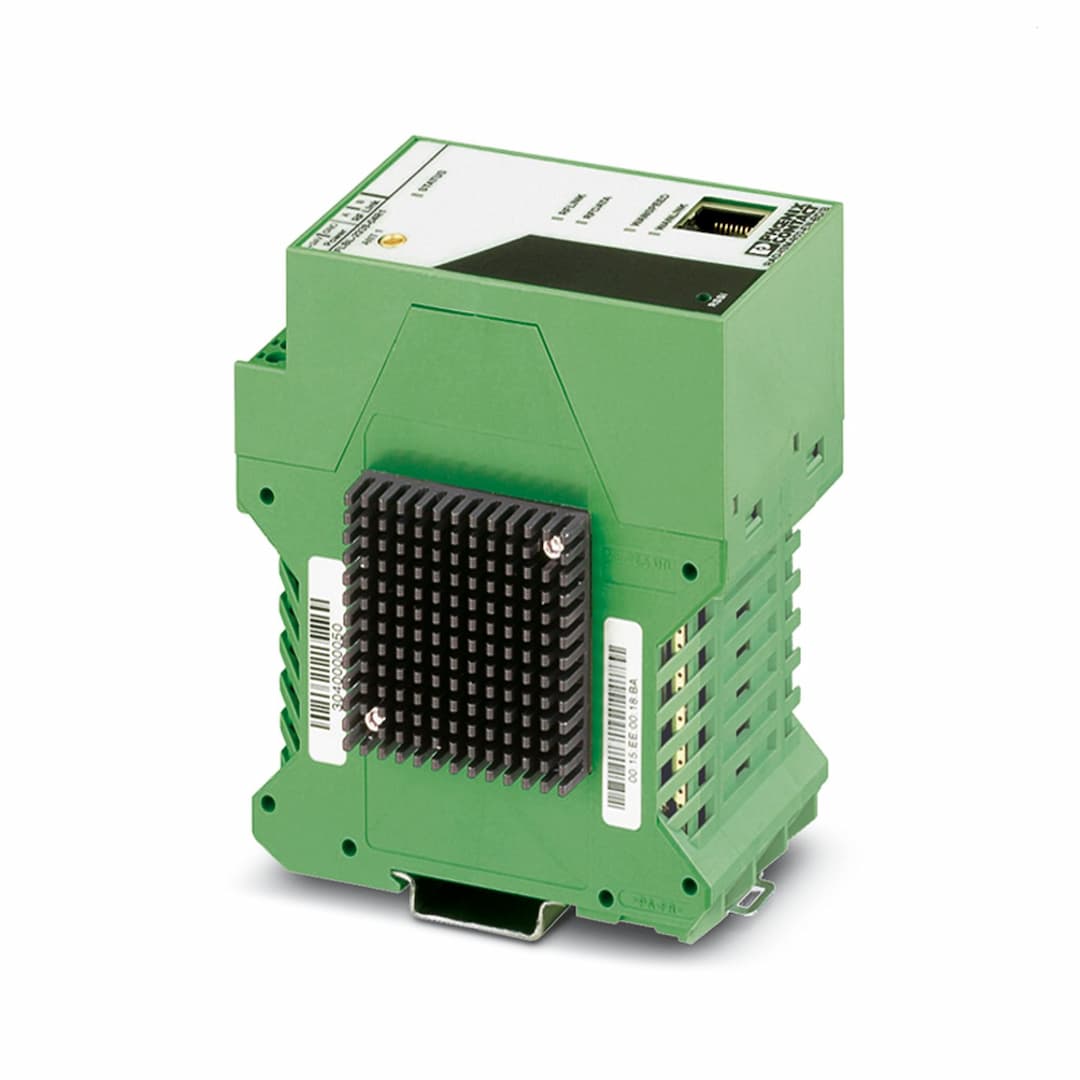

RAD-ISM-900-EN-BD/B
Product ID:18333
Updated: 2026/8/3
Key Features
- 1Secure data transmission with selectable 128/192/256-bit AES encryption.
- 2Simultaneously transmit Ethernet, I/O control, and serial ASCII data without external gateways.
- 3Easily configure and diagnose networks using an integrated web server.
- 4Seamlessly integrate with process and industrial applications.
- 5Operate effectively in high-interference environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Wireless module | Supply voltage | 24 V DC |
| Supply voltage range | 11 V DC ... 30 V DC | Max. current consumption | 250 mA (at 24 V DC) |
| Connection method | Screw connection | Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Cross section AWG | 24 ... 14 | Screw thread | M3 |
| Direction | Bi-directional | Frequency | 900 MHz |
| Frequency range | 902 MHz ... 928 MHz | Transmission power | 1 W (adjustable in 1 dBm increments) |
| Transmit capacity, minimum | 10 dBm | Transmit capacity, maximum | 30 dBm |
| Operating modes | bidirectional | Frequency band | 900 MHz |
| Width | 52 mm | Height | 99 mm |
| Depth | 114.5 mm | Color | green |
| Housing material | Polyamide PA non-reinforced with aluminum heatsink | Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 65 °C | Ambient temperature (storage/transport) | -40 °C ... 75 °C |
| Conformance | FCC Directive, Part 15.247
ISC Directive RSS 210 | Electromagnetic compatibility | FCC Part 15.247 / ISC RSS 210 |
| Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 | Mounting position | any |
Specifications may be subject to change without notice
