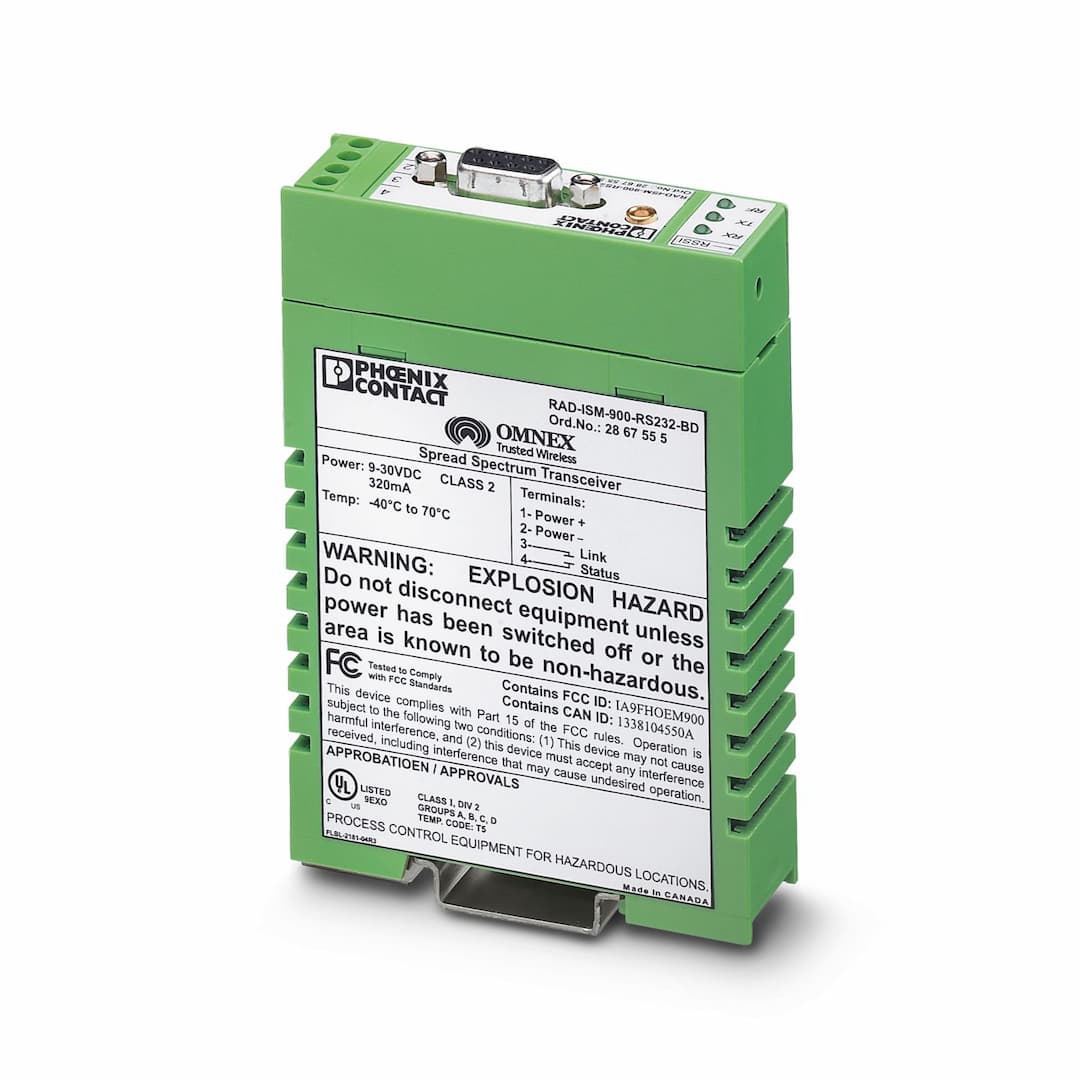

RAD-ISM-900-RS232-BD
Product ID:18030
Updated: 2026/8/4
Key Features
- 1Built with plastic housing and designed for harsh industrial environments.
- 2Supports up to 1,000 feet (305m) in-plant range and 4 to 5 miles (6 to 8km) LOS with Omni antenna.
- 3Supports Modbus RTU and Allen Bradley DF1 protocols for seamless integration.
- 4Access remote radios via secondary port for real-time system health monitoring.
- 5Dimensions are 2.9" x 0.88" x 4.2" (75mm x 22.5mm x 107.5mm) for easy mounting on DIN-rail.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Wireless module | Supply voltage | 24 V DC |
| Supply voltage range | 9 V DC ... 30 V DC | Typical current consumption | 110 mA |
| Max. current consumption | 180 mA | Connection method | Screw connection |
| Stripping length | 8 mm | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² | Cross section AWG | 24 ... 12 |
| Screw thread | M3 | Data rate | 1,2 / 2,4 / 9,6 / 19,2 / 38,4 kBit/s |
| Connection method | D-SUB-9 female connector | File format/coding | Asynchronous |
| Data flow control/protocols | RTS/CTS | Direction | Bi-directional |
| Frequency | 900 MHz | Frequency range | 902 MHz ... 928 MHz |
| Number of channel groups | 4 | Number of channels per group | 63 |
| Transmission power | 1 W | Frequency band | 900 MHz |
| Width | 22.5 mm | Height | 75 mm |
| Depth | 107.5 mm | Color | green |
| Housing material | Polyamide PA non-reinforced | Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 70 °C
-40 °F ... 158 °F | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Conformance | FCC Directive, Part 15.247
ISC Directive RSS 210 | UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D |
| Electromagnetic compatibility | FCC Part 15.247 / ISC RSS 210 | Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 |
| Mounting position | any |
Specifications may be subject to change without notice
