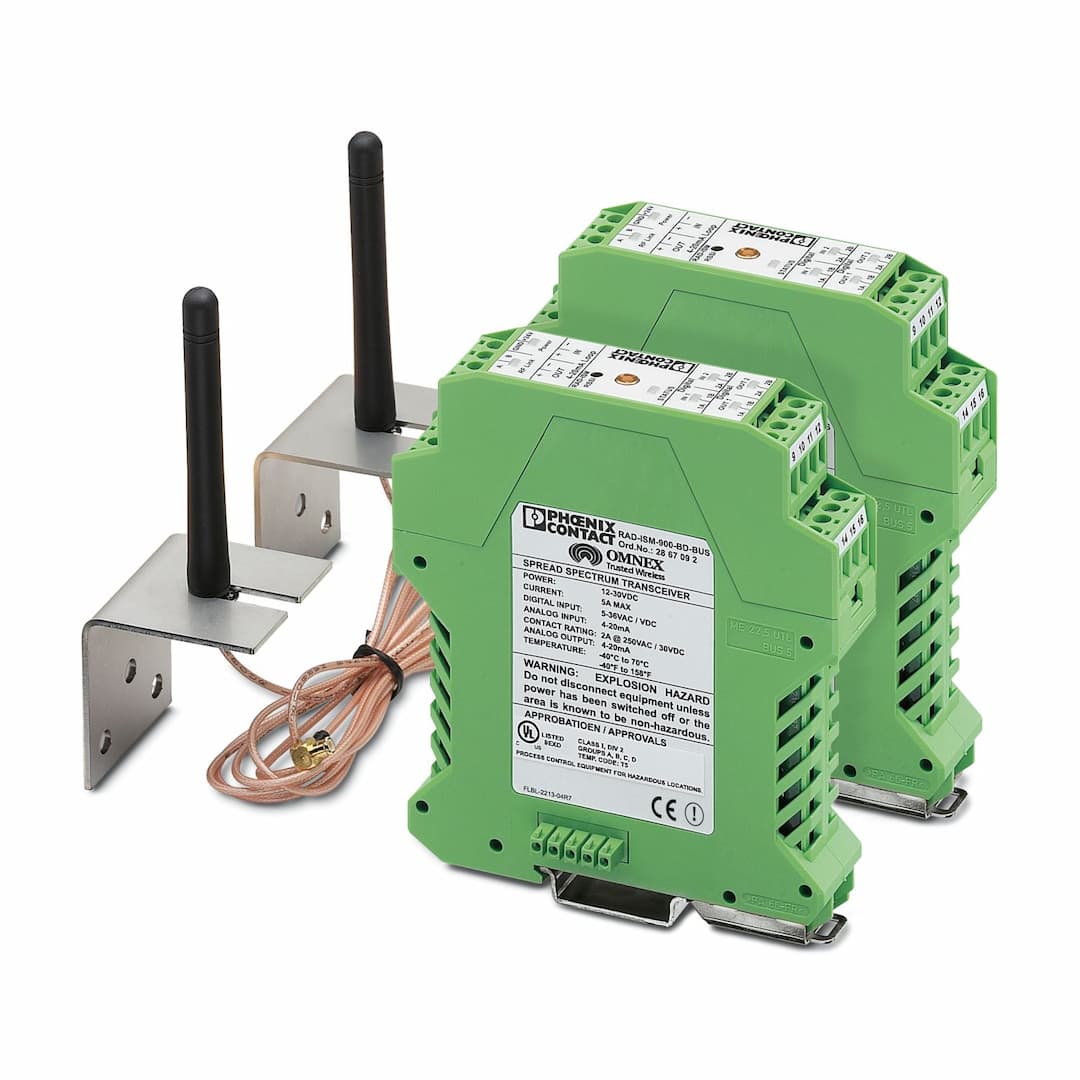

RAD-ISM-900-SET-BD-BUS-ANT-AU
Product ID:23469
Updated: 2026/7/26
Key Features
- 1Up to 254 slaves can be connected to one master, ensuring efficient data transmission in complex systems.
- 2Operates in the license-free 902 - 928 MHz ISM band, reducing costs and regulatory compliance issues.
- 3Configurable as master, slave, or repeater, offering flexibility in network setup and expansion.
- 4Integrated bus foot enables connection to additional I/O modules, enhancing system integration capabilities.
- 5Frequency hopping spread spectrum technology ensures reliable data transmission even in noisy environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Wireless module | Supply voltage | 24 V DC |
| Supply voltage range | 9 V DC ... 30 V DC | Typical current consumption | 75 mA |
| Max. current consumption | 200 mA | Input voltage range | 5 V AC/DC ... 30 V AC/DC |
| Switching threshold "0" signal, voltage | max. 1.5 V DC | Switching threshold "1" signal voltage | min. 5 V DC |
| Description of the input | Current input (analog input) | Current input signal | 4 mA ... 20 mA |
| Input resistance current input | < 170 Ω | Description of the input | Voltage input (digital input) |
| Output name | 2x relay output + 1 x RF link | Number of outputs | 3 |
| Contact switching type | 3 floating N/O contacts | Contact material | Ag, gold-plated |
| Maximum switching voltage | 30 V DC
250 V AC | Limiting continuous current | 2 A |
| Output name | Current output | Number of outputs | 1 |
| Load/output load current output | 700 Ω (at U | Connection method | Screw connection |
| Stripping length | 8 mm | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² | Cross section AWG | 24 ... 14 |
| Screw thread | M3 | Direction | Bi-directional |
| Frequency range | 915.1 MHz ... 927.8 MHz | Number of channel groups | 2 |
| Number of channels per group | 63 | Transmission power | 1 W |
| Frequency band | 900 MHz | Width | 22.5 mm |
| Height | 99 mm | Depth | 114.5 mm |
| Color | green | Housing material | Polyamide PA non-reinforced |
| Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 70 °C
-40 °F ... 158 °F |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Electromagnetic compatibility | FCC Part 15.247 |
| Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 | Mounting position | any |
Specifications may be subject to change without notice
