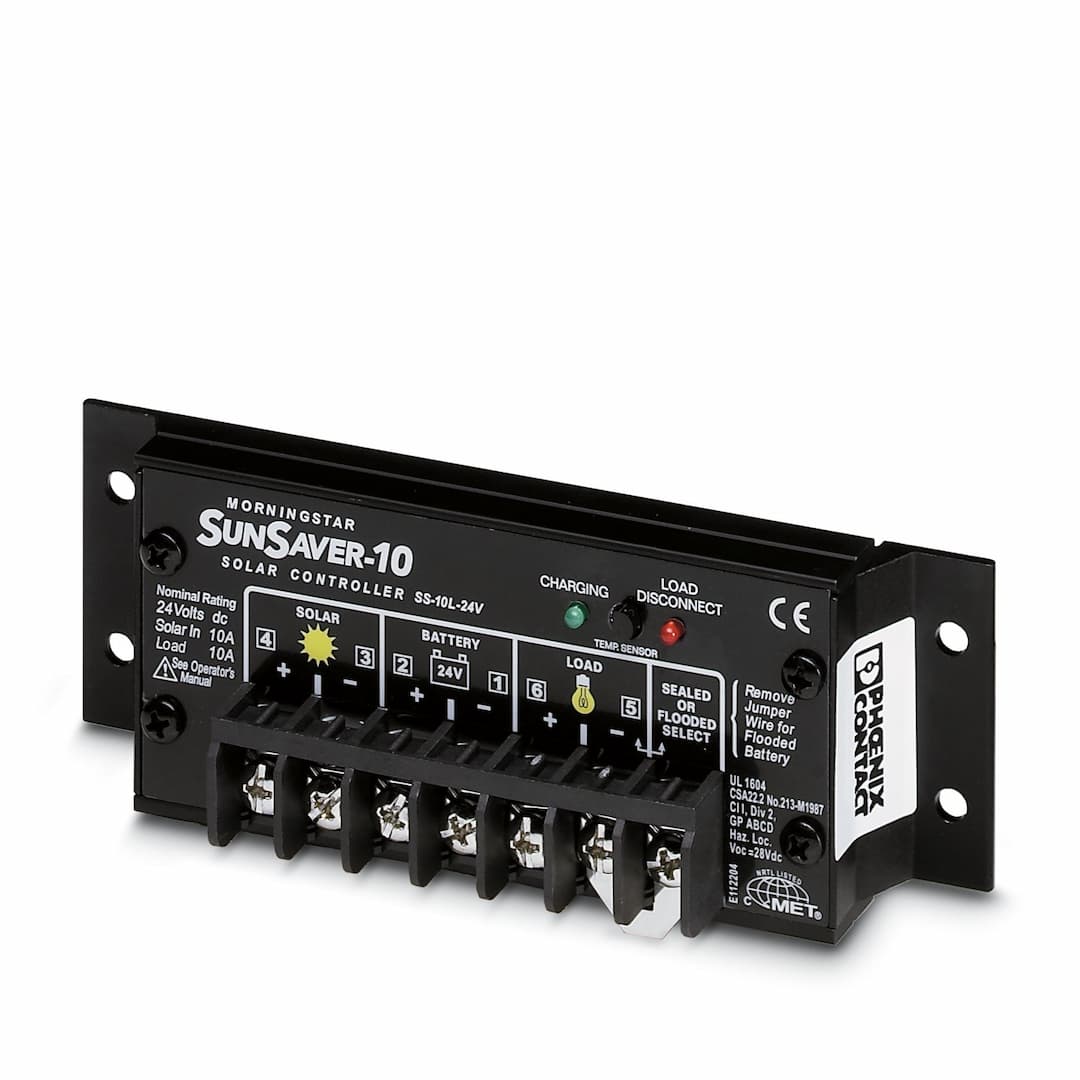

RAD-SOL-CHG-24- 10
Product ID:18165
Updated: 2026/8/3
Key Features
- 1Fully Automatic Operation: Automatically controls the charging process for photovoltaic systems.
- 2Electronic Protection Functions: Ensures safe operation with built-in electronic protection features.
- 3Compact Design: Measures 152 mm wide, 55 mm high, and 34 mm deep.
- 4Robust Ambient Temperature Range: Operates from -40°C to 60°C and stores/transport from -55°C to 80°C.
- 5Aluminum Housing: Durable aluminum construction for long-lasting performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Article revision | 03 | Operating voltage | 24 V DC |
| Cross section AWG | 10 | Width | 152 mm |
| Height | 55 mm | Depth | 34 mm |
| Housing material | Aluminum | Ambient temperature (operation) | -40 °C ... 60 °C |
| Ambient temperature (storage/transport) | -55 °C ... 80 °C | Permissible humidity (operation) | 20 % ... 100 % (non-condensing) |
| Conformance | CE-compliant | Mounting position | Horizontal DIN rail |
Specifications may be subject to change without notice
