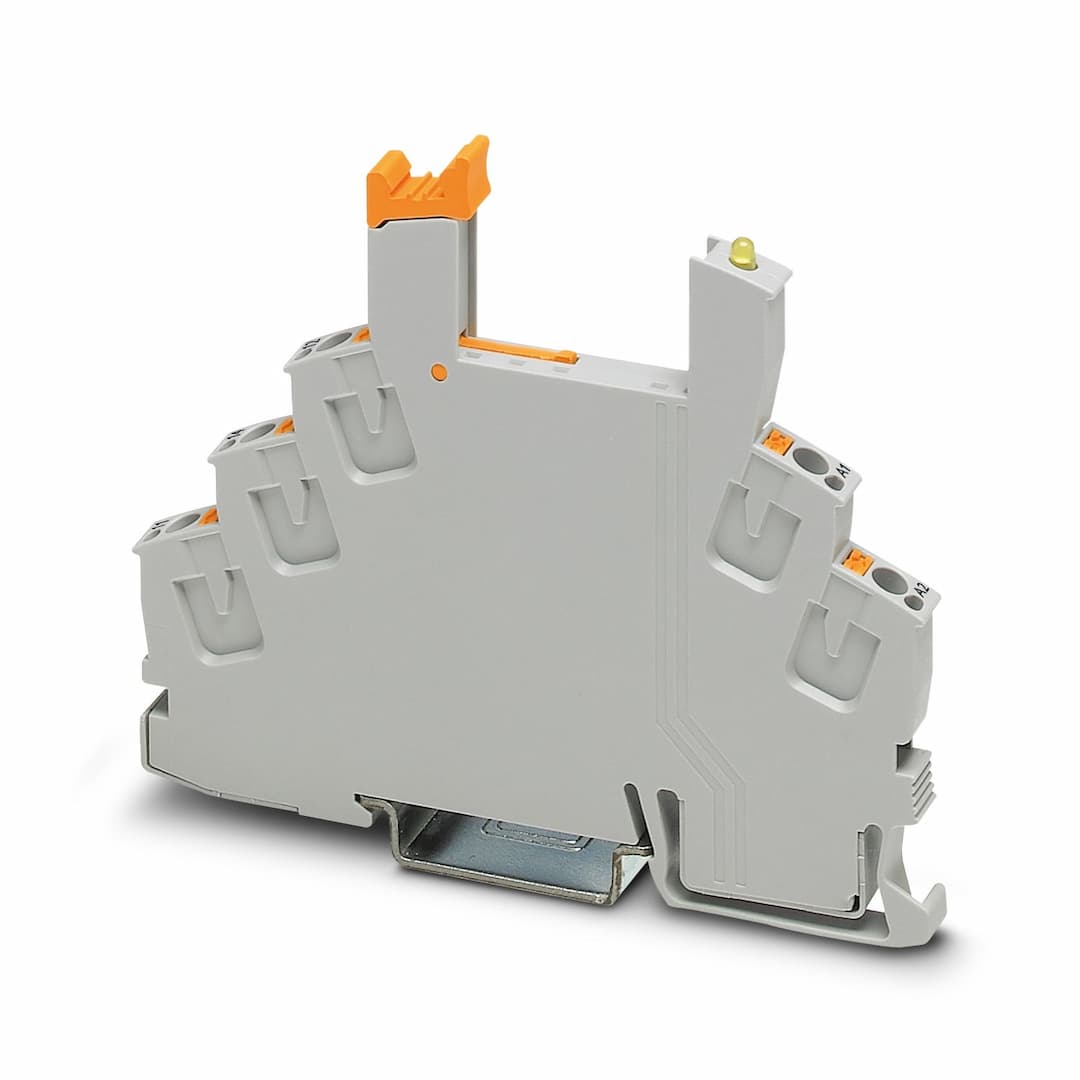

RIF-0-BPT-M/ 21
Product ID:23371
Updated: 2026/7/12
Key Features
- 1Designed for miniature power relays with 1 changeover contact.
- 2Features push-in connection for easy installation.
- 3Mounts securely on NS 35/7,5.
- 4Compatible with solid-state relays of the same design.
- 5Ideal for applications requiring reliable and compact relay solutions.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Relay socket | Product family | RIFLINE complete |
| Article revision | 05 | Nominal voltage U | 250 V AC/DC (Contact side) |
| Nominal current I | max. 8 A (Depends on application/assembly) | Protective circuit | Freewheeling diode |
| Input voltage range | 12 V DC ... 24 V DC | Connection method | Push-in connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve) | Conductor cross section AWG | 24 ... 16 |
| Width | 6.2 mm | Height | 93 mm |
| Depth | 78 mm | Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V2 (Housing) | Ambient temperature (operation) | -40 °C ... 85 °C (Depends on application/assembly) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
| Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
