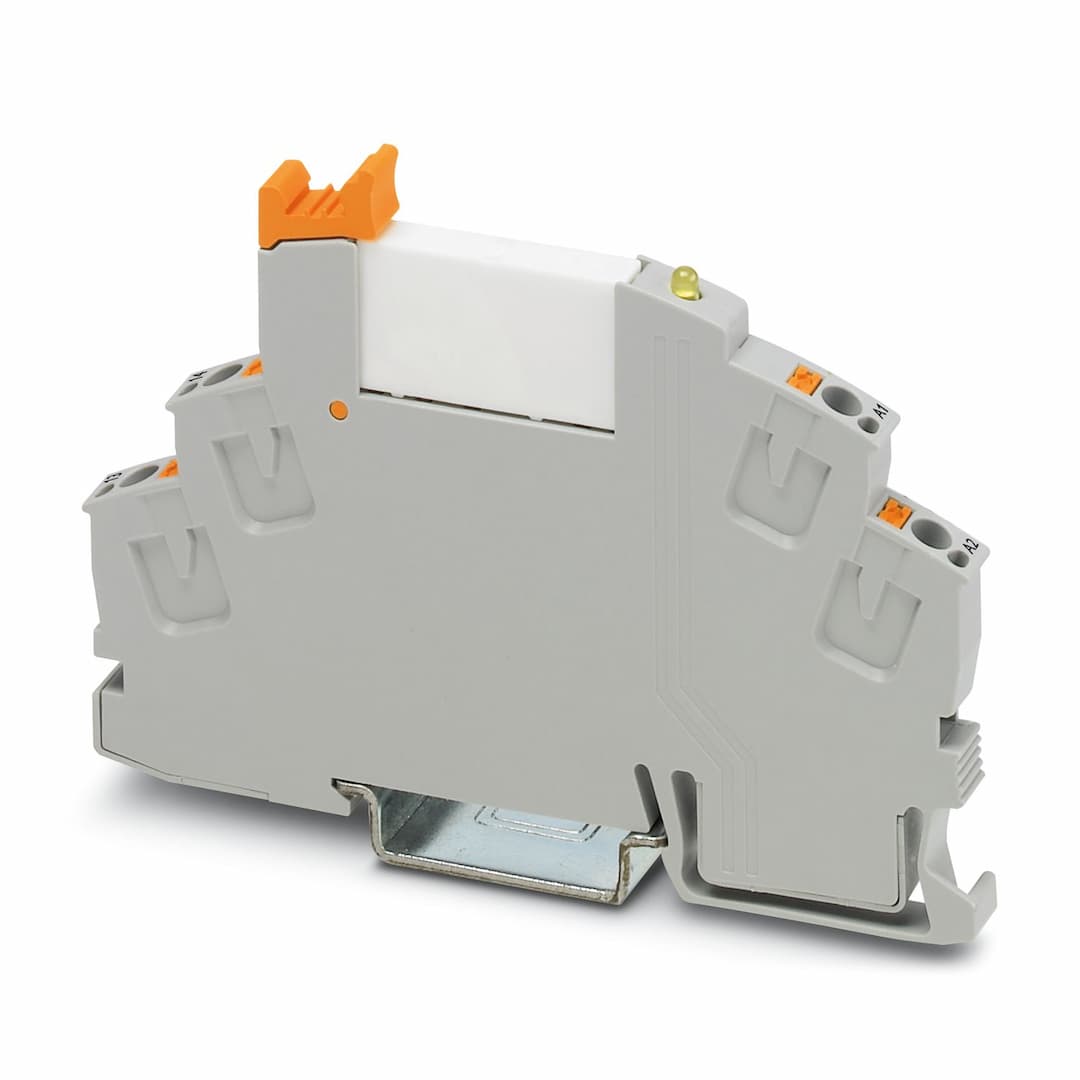

RIF-0-RPT-24DC/ 1
Product ID:17478
Updated: 2026/7/12
Key Features
- 1High Switching Voltage: Supports up to 250 V AC/DC.
- 2Fast Response Time: Typical response time of 5 ms and release time of 8 ms.
- 3Durable Construction: Made with AgSnO contact material for long-lasting performance.
- 4Wide Operating Range: Operates between -40°C to 60°C ambient temperature.
- 5Easy Installation: Features push-in connection for quick and secure mounting.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Relay Module | Product family | RIFLINE complete |
| Application | Universal | Operating mode | 100% operating factor |
| Mechanical service life | approx. 2x 10 | Date of last data management | 07.11.2024 |
| Article revision | 07 | Insulation | safe isolation |
| Overvoltage category | III | Pollution degree | 2 |
| Service life electrical | see diagram | Maximum power dissipation for nominal condition | 0.22 W |
| Test voltage (Winding/contact) | 4 kV | Rated insulation voltage | 250 V AC |
| Rated surge voltage | 6 kV | Nominal input voltage U | 24 V DC |
| Input voltage range | 19.2 V DC ... 36 V DC (20 °C) | Input voltage range in reference to U | see diagram |
| Drive and function | monostable | Drive (polarity) | polarized |
| Typical input current at U | 9 mA | Typical response time | 5 ms |
| Typical release time | 8 ms | Coil voltage | 24 V DC |
| Protective circuit | Freewheeling diode | Operating voltage display | Yellow LED |
| Contact switching type | 1 N/O contact | Type of switch contact | Single contact |
| Contact material | AgSnO | Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 5 V (100 mA) | Limiting continuous current | 6 A |
| Maximum inrush current | 10 A (4 s) | Min. switching current | 10 mA (12 V) |
| Interrupting rating (ohmic load) max. | 140 W (24 V DC)
20 W (48 V DC)
18 W (60 V DC)
23 W (110 V DC)
40 W (220 V DC)
1500 VA (250 V AC) | Utilization category CB Scheme (IEC 60947-5-1) | AC15, 3 A/250 V (N/O contact)
AC15, 1 A/250 V (N/C contact)
DC13, 1.5 A/24 V (N/O contact)
DC13, 0.2 A/110 V (N/O contact)
DC13, 0.1 A/220 V (N/O contact) |
| Connection method | Push-in connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve) |
| Conductor cross section AWG | 24 ... 16 | Width | 6.2 mm |
| Height | 93 mm | Depth | 66 mm |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V2 (Housing) |
| Degree of protection (Relay base) | IP20 (Relay base) | Degree of protection (Relay) | RT III (Relay) |
| Ambient temperature (operation) | -40 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Standards/regulations | IEC 60947-5-1 |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
