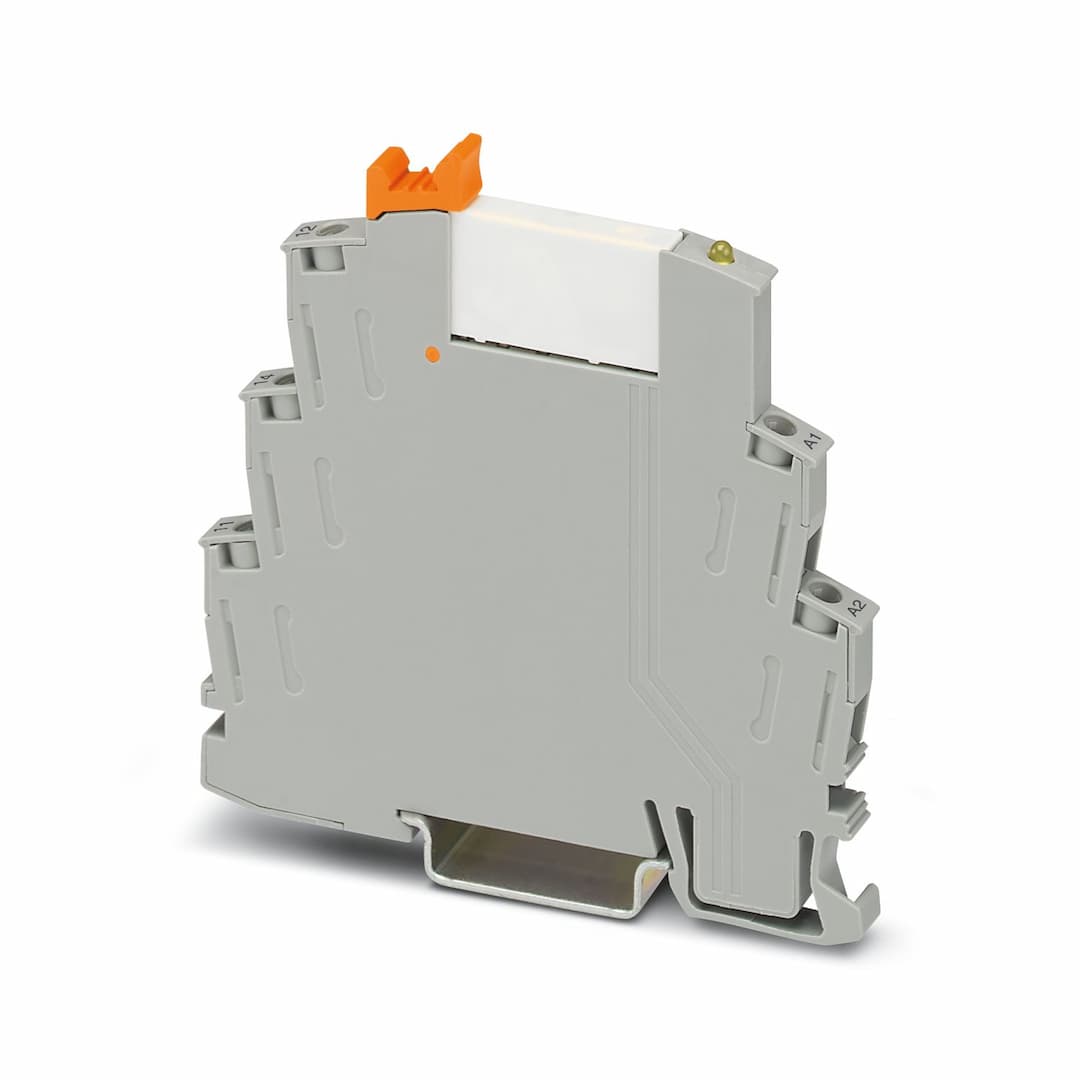

RIF-0-RSC-24DC/21
Product ID:23462
Updated: 2026/7/12
Key Features
- 1DIN Rail Mounting: Easy installation on standard DIN rails.
- 224V dc Coil: Compatible with 24V dc power supply.
- 3SPDT Configuration: Single-pole double-throw contact for versatile switching.
- 4Safe Isolation: IP20 relay base ensures safe electrical isolation.
- 5High Switching Voltage: Handles up to 250V ac/dc for reliable operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Relay Module | Product family | RIFLINE complete |
| Application | Universal | Operating mode | 100% operating factor |
| Mechanical service life | approx. 2x 10 | Date of last data management | 09.08.2024 |
| Article revision | 03 | Insulation | safe isolation |
| Overvoltage category | III | Pollution degree | 2 |
| Service life electrical | see diagram | Maximum power dissipation for nominal condition | 0.22 W |
| Test voltage (Winding/contact) | 4 kV | Rated insulation voltage | 250 V AC |
| Rated surge voltage | 6 kV | Nominal input voltage U | 24 V DC |
| Input voltage range | 19.2 V DC ... 36 V DC (20 °C) | Input voltage range in reference to U | see diagram |
| Drive and function | monostable | Drive (polarity) | polarized |
| Typical input current at U | 9 mA | Typical response time | 5 ms |
| Typical release time | 8 ms | Coil voltage | 24 V DC |
| Protective circuit | Freewheeling diode | Operating voltage display | Yellow LED |
| Contact switching type | 1 changeover contact | Type of switch contact | Single contact |
| Contact material | AgSnO | Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 5 V (100 mA) | Limiting continuous current | 6 A |
| Min. switching current | 10 mA (12 V) | Interrupting rating (ohmic load) max. | 140 W (24 V DC)
20 W (48 V DC)
18 W (60 V DC)
23 W (110 V DC)
40 W (220 V DC)
1500 VA (250 V AC) |
| Utilization category CB Scheme (IEC 60947-5-1) | AC15, 3 A/250 V (N/O contact)
AC15, 1 A/250 V (N/C contact)
DC13, 1.5 A/24 V (N/O contact)
DC13, 0.2 A/110 V (N/O contact)
DC13, 0.1 A/220 V (N/O contact) | Connection method | Screw connection |
| Stripping length | 7 mm | Conductor cross section rigid | 0.5 mm² ... 4 mm² |
| Conductor cross-section rigid (2 conductors with same cross section) | 0.5 mm² ... 1.5 mm² | Conductor cross section flexible | 0.5 mm² ... 2.5 mm²
0.5 mm² ... 2.5 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 1.5 mm² (Ferrule with plastic sleeve) |
| Conductor cross section flexible (2 conductors with same cross section) | 0.5 mm² ... 1.5 mm²
0.5 mm² ... 1 mm² (TWIN ferrule with plastic sleeve) | Conductor cross section AWG | 20 ... 12 (solid)
20 ... 14 (flexible) |
| Tightening torque | 0.5 Nm ... 0.6 Nm | Width | 6.2 mm |
| Height | 84 mm | Depth | 82 mm |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V2 (Housing) |
| Degree of protection (Relay base) | IP20 (Relay base) | Degree of protection (Relay) | RT III (Relay) |
| Ambient temperature (operation) | -40 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Standards/regulations | IEC 60947-5-1 |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
