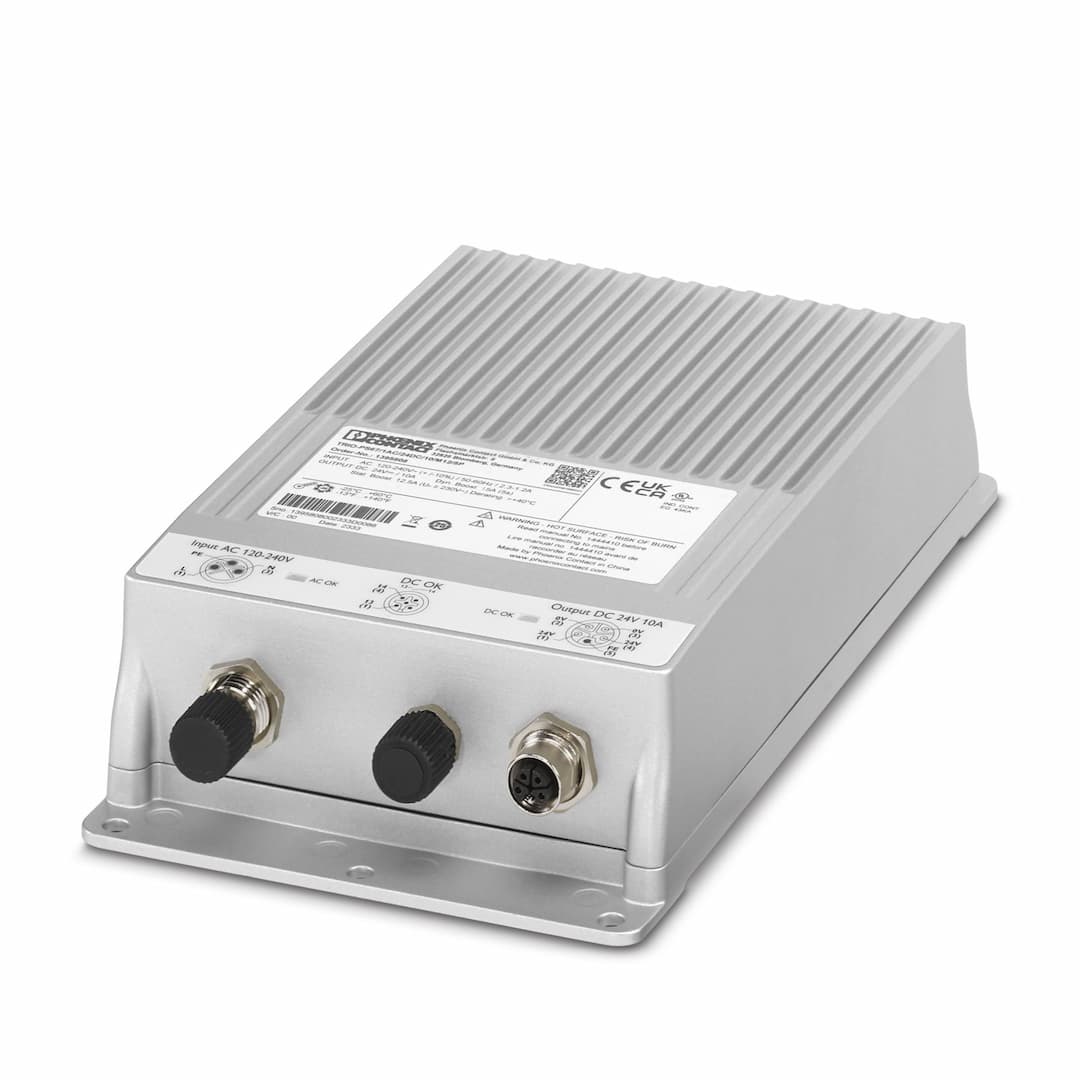

TRIO-PS67/1AC/24DC/10/M12/5P
Product ID:21956
Updated: 2026/7/12
Key Features
- 1IP67 Protection: Rugged die-cast housing ensures reliable operation in harsh environments.
- 224V DC Output: Stable and efficient output voltage for various industrial applications.
- 310A Current Handling: High current capacity for demanding power requirements.
- 4Wide Input Range: Compatible with 100V AC to 240V AC and 110V DC to 250V DC inputs.
- 5Long MTBF: High reliability with a Mean Time Between Failures (MTBF) exceeding 1.8 million hours at 25°C.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Supply system configuration | Star network (TN, TT, IT (PE)) | Nominal input voltage range | 120 V AC ... 240 V AC |
| Input voltage range | 120 V AC ... 240 V AC ±10 % | Switch-on voltage | > 85 V AC |
| Shut-down voltage | < 85 V AC | Electric strength, max. | ≤ 300 V AC 15 s |
| Typical national grid voltage | 120 V AC
230 V AC | Voltage type of supply voltage | AC |
| Inrush current | ≤ 25 A (typical) | Inrush current integral (I | < 0.5 A |
| Inrush current limitation | typ. 25 A (after 1 ms) | AC frequency range | 50 Hz ... 60 Hz ±10 % |
| Frequency range (f | 50 Hz ... 60 Hz ±10 % | Mains buffering time | > 17 ms (120 V AC)
> 17 ms (230 V AC) |
| Current consumption | 2.3 A (120 V AC)
1.2 A (240 V AC) | Nominal power consumption | 285 VA |
| Protective circuit | Transient surge protection; Varistor | Switch-on time | < 1 s |
| Input fuse | 6.3 A (internal (device protection)) | Recommended breaker for input protection | 6 A ... 16 A (US/CAN: branch circuit protection 20 A) (Characteristic B, C, D, K or comparable) |
| Discharge current to PE | < 3.5 mA | Efficiency | typ. 90 % (120 V AC)
typ. 92 % (230 V AC) |
| Nominal output voltage | 24 V DC ±1 % | Nominal output current (I | 10 A |
| Static Boost (I | 12.5 A (U | Derating static boost | > 40 °C ... 50 °C 1 %/K> 50 ... 60 °C 0.22 %/K (U |
| Dynamic Boost (I | 15 A (5 s) | Derating | > 40 °C ... 50 °C (1 % / K) |
| Feedback voltage resistance | ≤ 35 V DC | Protection against overvoltage at the output (OVP) | ≤ 30 V DC |
| Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 3 % (Dynamic load change 10 % ... 90 %, 10 Hz)
< 0.1 % (change in input voltage ±10 %) | Residual ripple | ≤ 10 mV |
| Short-circuit-proof | yes | Output power | 240 W
300 W
360 W (5 s) |
| Maximum no-load power dissipation | < 2 W (120 V AC)
< 2 W (230 V AC) | Power loss nominal load max. | < 25 W (120 V AC)
< 21 W (230 V AC) |
| Rise time | ≤ 12 ms (U | Connection in parallel | yes, for redundancy and increased capacity |
| Connection in series | yes | Default | closed |
| Digital | 30 V AC 30 V DC 100 mA | Connection method | M12 circular connector |
| Coding | S | Type of locking | M12 screw locking |
| Number of positions | 3 | Connection method | M12 circular connector |
| Coding | L | Type of locking | M12 screw locking |
| Number of positions | 5 | Connection method | M12 circular connector |
| Coding | A | Type of locking | M12 |
| Number of positions | 5 | Types of signaling | LED
Floating signal contact |
| Status display | 2 x LED (green) | Signalization designation | AC OK |
| Status display | LED | Color | green |
| AC OK | AC | Signalization designation | DC OK |
| DC OK | U | Number of phases | 1.00 |
| Insulation voltage input/output | 3 kV AC (type test)
1.5 kV AC (routine test) | Product type | Power supply |
| Product family | TRIO POWER | MTBF (IEC 61709, SN 29500) | > 850000 h (25 °C)
> 460000 h (40 °C)
> 190000 h (60 °C) |
| Article revision | 00 | Protection class | I |
| Pollution degree | 2 (IEC 61010-1) | Width | 136 mm |
| Height | 240 mm | Depth | 53 mm |
| Diameter | 5.6 mm | Installation distance right/left | 10 mm / 10 mm |
| Installation distance top/bottom | 0 mm / 100 mm | Mounting type | Wall mounting |
| Assembly note | Alignable: 20 mm horizontally, 50 mm vertically above, 100 mm vertically below | With protective coating | no |
| Flammability rating according to UL 94 (housing / terminal blocks) | V0 | Housing material | Metal |
| Type of housing | Aluminum (AlMg3) | Degree of protection | IP67 |
| Ambient temperature (operation) | -25 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Ambient temperature (start-up type tested) | -40 °C | Maximum altitude | ≤ 4000 m (> 2000 m, Derating: 10 %/1000 m) |
| Climatic class | 4K26 (EN 60721-3-4) | Max. permissible relative humidity (operation) | ≤ 100 % (at 25 °C, non-condensing) |
| Permissible humidity (operation) | ≤ 100 % (at 25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
| Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 4g, 90 min. | EN 61010-1 | III (≤ 2000 m)
II (≤ 4000 m) |
| Standard designation | Electrical safety | Standards/specifications | IEC 61010-1 |
| Standard designation | Protective extra-low voltage | Standards/specifications | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) |
| Standard designation | Safe isolation | Standard designation | Low-voltage power supplies, DC output |
| Standards/specifications | EN 61204-3 | Standard designation | Safety requirements for electrical equipment for measurement, control, and laboratory use |
| Standards/specifications | IEC 61010-1 | Standard designation | Limit values for harmonic currents |
| Standards/specifications | EN 61000-3-2 | Standard designation | Degrees of protection provided by enclosures (IP code) |
| Standards/specifications | EN/IEC 60529 | Identification | UL/C-UL Listed UL 61010-1 |
| Identification | UL/C-UL Listed UL 61010-2-201 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | Interference emission | Interference emission in accordance with EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial) |
| Noise immunity | Immunity in accordance with EN 61000-6-1 (residential), EN 61000-6-2 (industrial) | Conducted noise emission | EN 55016
EN 61000-6-3 (Class B) |
| Noise emission | EN 55011 (EN 55022) | Noise emission | EN 55016
EN 61000-6-3 (Class B) |
| Standards/regulations | EN 61000-3-2
EN 61000-3-2 (Class A) | Standards/regulations | EN 61000-4-2 |
| Contact discharge | 6 kV (Test Level 3) | Comments | Criterion A |
| Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
| Test field strength | 10 V/m (Test Level 3) | Frequency range | 1 GHz ... 2 GHz |
| Test field strength | 10 V/m (Test Level 3) | Frequency range | 2 GHz ... 6 GHz |
| Test field strength | 10 V/m (Test Level 3) | Comments | Criterion A |
| Standards/regulations | EN 61000-4-4 | Input | 4 kV (Test Level 3 - asymmetrical) |
| Output | 2 kV (Test Level 3 - asymmetrical) | Signal | 2 kV (Test Level 3 - asymmetrical) |
| Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
| Input | 1 kV (Test Level 1 - symmetrical)
2 kV (Test Level 1 - asymmetrical) | Output | 0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) |
| Signal | 1 kV (Test Level 2 - asymmetrical) | Comments | Criterion B |
| Standards/regulations | EN 61000-4-6 | Input/Output | asymmetrical |
| Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
| Voltage | 10 V (Test Level 3) | Standards/regulations | EN 61000-4-11 |
| Voltage | 230 V AC | Frequency | 50 Hz |
| Voltage dip | 70 % | Number of periods | 25 periods |
| Comments | Criterion A | Voltage dip | 40 % |
| Number of periods | 10 periods | Comments | Criterion A |
| Voltage dip | 0 % | Number of periods | 1 period |
| Comments | Criterion A | Standards/regulations | EN 61000-6-3 |
| Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
| Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
