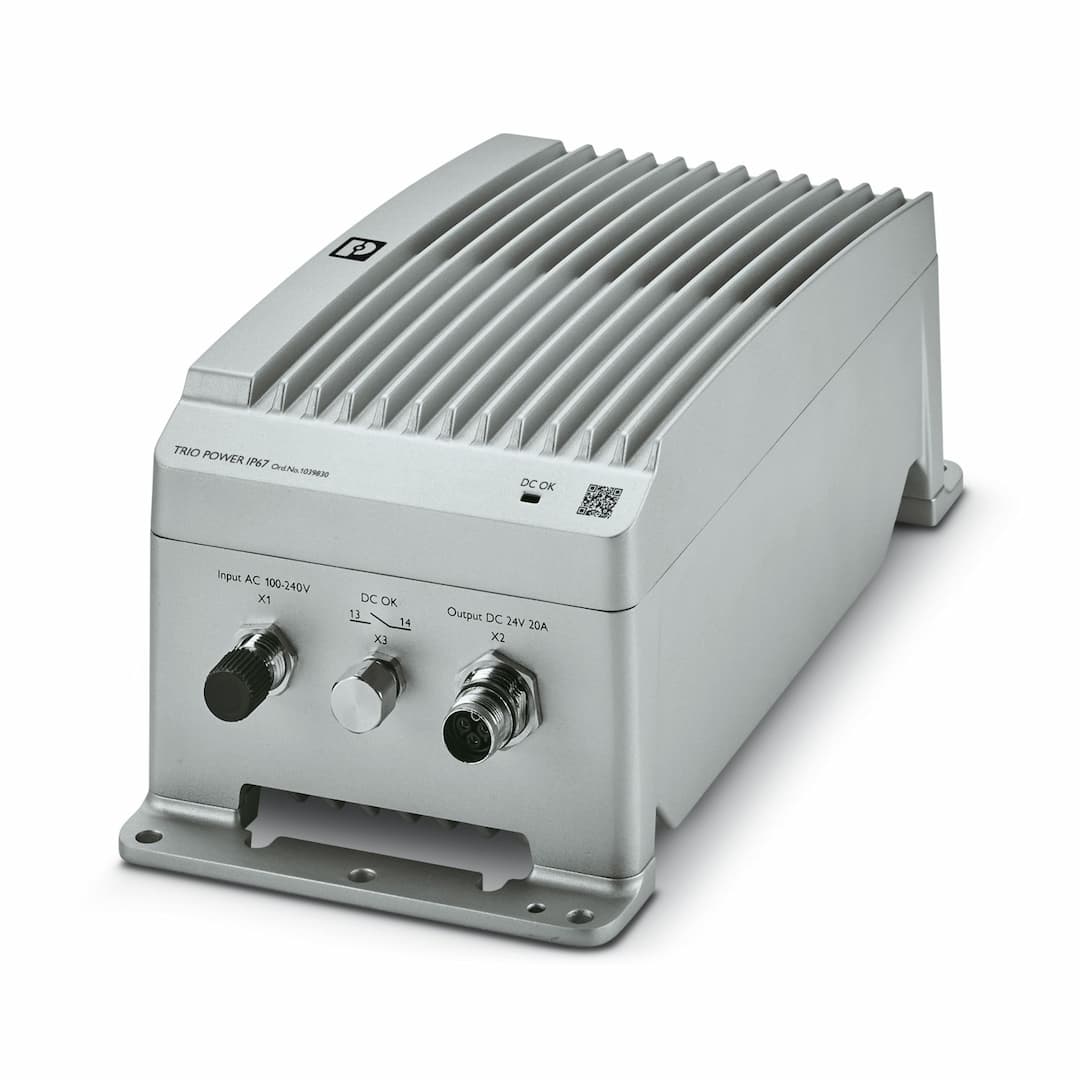

TRIO-PS-IP67/1AC/24DC/20
Product ID:22183
Updated: 2026/7/28
Key Features
- 1IP67 Protection: Weather-resistant and dust-proof for reliable operation in harsh environments.
- 2Wide Input Range: Operates on 85 V AC to 264 V AC with derating below 90 V AC.
- 3High Efficiency: 91% efficiency for 230 V AC and nominal values.
- 4Robust Metal Housing: Constructed with a zinc-plated steel sheet for durability.
- 5Long MTBF: Meets IEC 61709 standards with an MTBF of over 915,000 hours.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Network type | Star network | Nominal input voltage range | 100 V AC ... 240 V AC |
| Input voltage range | 100 V AC ... 240 V AC ±10 % | Electric strength, max. | ≤ 300 V AC 15 s |
| Typical national grid voltage | 120 V AC
230 V AC | Voltage type of supply voltage | AC/DC |
| Inrush current | typ. 20 A (at 25 °C) | Inrush current integral (I | < 0.9 A |
| Inrush current limitation | ≤ 20 A (at 25 °C) | AC frequency range | 50 Hz ... 60 Hz |
| Mains buffering time | typ. 10 ms (120 V AC)
typ. 15 ms (230 V AC) | Current consumption | 5.6 A (100 V AC)
2.4 A (240 V AC) |
| Nominal power consumption | 36.8 W | Protective circuit | Transient surge protection; Varistor |
| Typical response time | < 1 s | Input fuse | 10 A (internal (device protection)) |
| Recommended breaker for input protection | 10 A ... 16 A (Characteristics B, C, D, K) | Discharge current to PE | < 3.5 mA |
| Nominal input voltage range | 110 V DC ... 250 V DC | Input voltage range | 110 V DC ... 250 V DC ±10 % |
| Switch-on voltage | ≥ 95 V DC | Shut-down voltage | < 95 V DC |
| Voltage type of supply voltage | AC/DC | Mains buffering time | > 15 ms (230 V AC) |
| Current consumption | 4.9 A (110 V DC)
2.1 A (250 V DC) | Efficiency | 91 % (100 V AC)
93 % (230 V AC) |
| Nominal output voltage | 24 V DC ±1 % | Nominal output current (I | 20 A |
| Dynamic Boost (I | 30 A (5 s) | Derating | > 60 °C ... 70 °C (2.5 %/K) |
| Protection against overvoltage at the output (OVP) | ≤ 30 V DC | Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 3 % (Dynamic load change 10 % ... 90 %, 10 Hz)
< 0.1 % (change in input voltage ±10 %) |
| Residual ripple | ≤ 30 mV | Short-circuit-proof | yes |
| No-load proof | yes | Output power | 480 W
720 W |
| Maximum no-load power dissipation | < 3 W (120 V AC)
< 2.5 W (230 V AC) | Power loss nominal load max. | < 48 W (120 V AC)
< 36 W (230 V AC) |
| Rise time | ≤ 30 ms (U | Maximum switching voltage | 30 V AC/DC |
| Continuous load current | 100 mA | Default | closed |
| Digital | 30 V AC 30 V DC 100 mA | Connection method | M12 circular connector |
| Coding | S | Type of locking | M12 screw locking |
| Number of positions | 3 | Connection method | M17 circular connector |
| Coding | N | Type of locking | M17 standard and SPEEDCON locking |
| Number of positions | 4 | Connection method | Circular connector |
| Coding | A | Type of locking | SPEEDCON M12 |
| Number of positions | 5 | Types of signaling | LED
Floating signal contact |
| Signalization designation | DC OK | Status display | LED |
| Color | green | DC OK | U |
| Number of phases | 1.00 | Insulation voltage input/output | 4 kV AC (type test)
1.5 kV AC (routine test) |
| Product type | Power supply | Product family | TRIO POWER |
| MTBF (IEC 61709, SN 29500) | > 1400000 h (25 °C)
> 800000 h (40 °C)
> 400000 h (60 °C) | Article revision | 02 |
| Protection class | I | Pollution degree | 2 (IEC 61010-1) |
| Width | 151 mm | Height | 304 mm |
| Depth | 120 mm | Diameter | 5.6 mm |
| Installation distance right/left | 20 mm / 20 mm | Installation distance top/bottom | 50 mm / 100 mm |
| Mounting type | Wall mounting | Assembly note | Alignable: 20 mm horizontally, 50 mm vertically above, 100 mm vertically below |
| With protective coating | no | Flammability rating according to UL 94 (housing / terminal blocks) | V0 |
| Housing material | Metal | Type of housing | Aluminum (AlMg3) |
| Degree of protection | IP67 | Ambient temperature (operation) | -25 °C ... 85 °C (Derating >60°C: 2.5 %/K) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Ambient temperature (start-up type tested) | -40 °C |
| Maximum altitude | ≤ 4000 m (> 2000 m, Derating: 10 %/1000 m) | Climatic class | 3K3 (in acc. with EN 60721) |
| Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
| Vibration (operation) | in each space direction (in acc. with EN 60068-2-6) | Standard – Limitation of mains harmonic currents | EN 61000-3-2 |
| Standard - Electrical safety | IEC 61010-2-201 (SELV) | Standard – Safety extra-low voltage | EN 60204-1 (PELV) |
| Standard - Safe isolation | DIN VDE 0100-410 | EN 61010-1 | III (≤ 2000 m)
II (≤ 4000 m) |
| SIL in accordance with IEC 61508 | 0 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | Interference emission | Interference emission in accordance with EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial) |
| Noise immunity | Immunity in accordance with EN 61000-6-1 (residential), EN 61000-6-2 (industrial) | Conducted noise emission | EN 55016
EN 61000-6-3 (Class B) |
| Noise emission | EN 55011 (EN 55022) | Noise emission | EN 55016
EN 61000-6-3 (Class B) |
| Frequency range | Class A | Standards/regulations | EN 61000-3-3 |
| Frequency range | 0 kHz ... 2 kHz | Standards/regulations | EN 61000-4-2 |
| Contact discharge | 6 kV (Test Level 4) | Discharge in air | 8 kV (Test Level 4) |
| Comments | Criterion A | Standards/regulations | EN 61000-4-3 |
| Frequency range | 80 MHz ... 1 GHz | Test field strength | 10 V/m (Test Level 3) |
| Frequency range | 1 GHz ... 2 GHz | Test field strength | 10 V/m (Test Level 3) |
| Frequency range | 2 GHz ... 3 GHz | Test field strength | 10 V/m (Test Level 3) |
| Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
| Input | 4 kV (Test Level 4 - asymmetrical) | Output | 2 kV (Test Level 3 - asymmetrical) |
| Signal | 2 kV (Test Level 2 - asymmetrical) | Comments | Criterion A |
| Standards/regulations | EN 61000-4-5 | Input | 1 kV (Test Level 1 - symmetrical)
2 kV (Test Level 1 - asymmetrical) |
| Output | 0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) | Signal | 1 kV (Test Level 2 - asymmetrical) |
| Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
| Input/Output | asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
| Comments | Criterion A | Voltage | 10 V (Test Level 3) |
| Standards/regulations | EN 61000-4-11 | Voltage | 230 V AC |
| Frequency | 50 Hz | Voltage dip | 70 % |
| Number of periods | 25 periods | Additional text | Test Level 2 |
| Comments | Criterion A | Voltage dip | 40 % |
| Number of periods | 10 periods | Additional text | Test Level 2 |
| Comments | Criterion B | Voltage dip | 0 % |
| Number of periods | 1 period | Additional text | Test Level 2 |
| Comments | Criterion B | Standards/regulations | EN 61000-6-3 |
| Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
| Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
