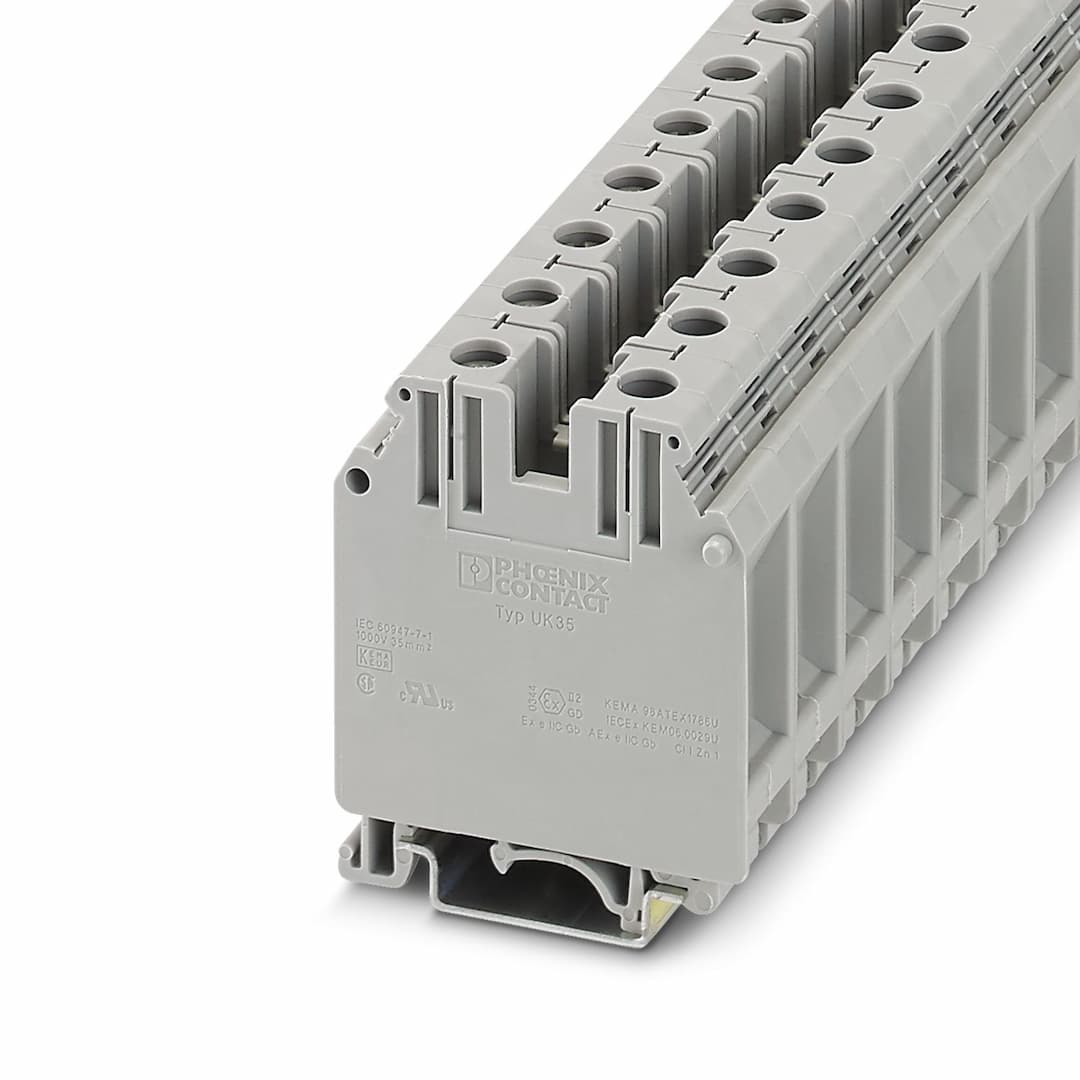

UK 35 TEILBESTUECKT
Product ID:21726
Updated: 2026/7/29
Key Features
- 1The UK 35 TEILBESTUECKT features a compact design that saves space and enables user-friendly wiring.
- 2Supports nominal voltage of 1000 V and nominal current of 150 A, making it suitable for demanding applications.
- 3Compatible with NS 35/7,5, NS 35/15, and NS 32 mounting types, offering flexibility in installation.
- 4Made with insulating material group I, ensuring high mechanical stability and resistance to environmental factors.
- 5Screw connection method simplifies the process of connecting conductors, reducing installation time and effort.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Notes on operation | The terminal block has only one screw | Product type | Feed-through terminal block |
| Number of connections | 1 | Number of rows | 1 |
| Potentials | 1 | Article revision | 10 |
| Overvoltage category | III | Degree of pollution | 3 |
| Rated surge voltage | 8 kV | Number of connections per level | 1 |
| Screw thread | M6 | Tightening torque | 3.2 ... 3.7 Nm |
| Stripping length | 16 mm | Internal cylindrical gage | B9 |
| Connection in acc. with standard | IEC 60947-7-1 | Conductor cross section rigid | 0.75 mm² ... 50 mm² |
| Cross section AWG | 18 ... 1/0 (converted acc. to IEC) | Conductor cross section flexible | 0.75 mm² ... 35 mm² |
| Conductor cross section, flexible [AWG] | 18 ... 2 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.75 mm² ... 35 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.75 mm² ... 35 mm² | 2 conductors with same cross section, solid | 0.75 mm² ... 16 mm² |
| 2 conductors with same cross section, flexible | 0.75 mm² ... 10 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.75 mm² ... 10 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.75 mm² ... 6 mm² | Nominal current | 150 A |
| Maximum load current | 150 A (with 50 mm² conductor cross section) | Nominal voltage | 1000 V |
| Connection in acc. with standard | IEC/EN 60079-7 | Test certificate name | IECEx KEM 06.0029U / KEMA 98ATEX1786 U |
| Conductor cross section rigid | 0.75 mm² ... 50 mm² | Cross section AWG | 18 ... 1 (converted acc. to IEC) |
| Conductor cross section flexible | 0.75 mm² ... 35 mm² | Maximum load current | 147 A (with 50 mm² conductor cross section)
118.5 A (with 35 mm² conductor cross section) |
| Nominal voltage | 690 V | Width | 16 mm |
| Color | gray | Flammability rating according to UL 94 | V0 |
| Insulating material group | I | Insulating material | PA |
| Open side panel | No | Connection in acc. with standard | IEC 60947-7-1
IEC/EN 60079-7 |
| Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
