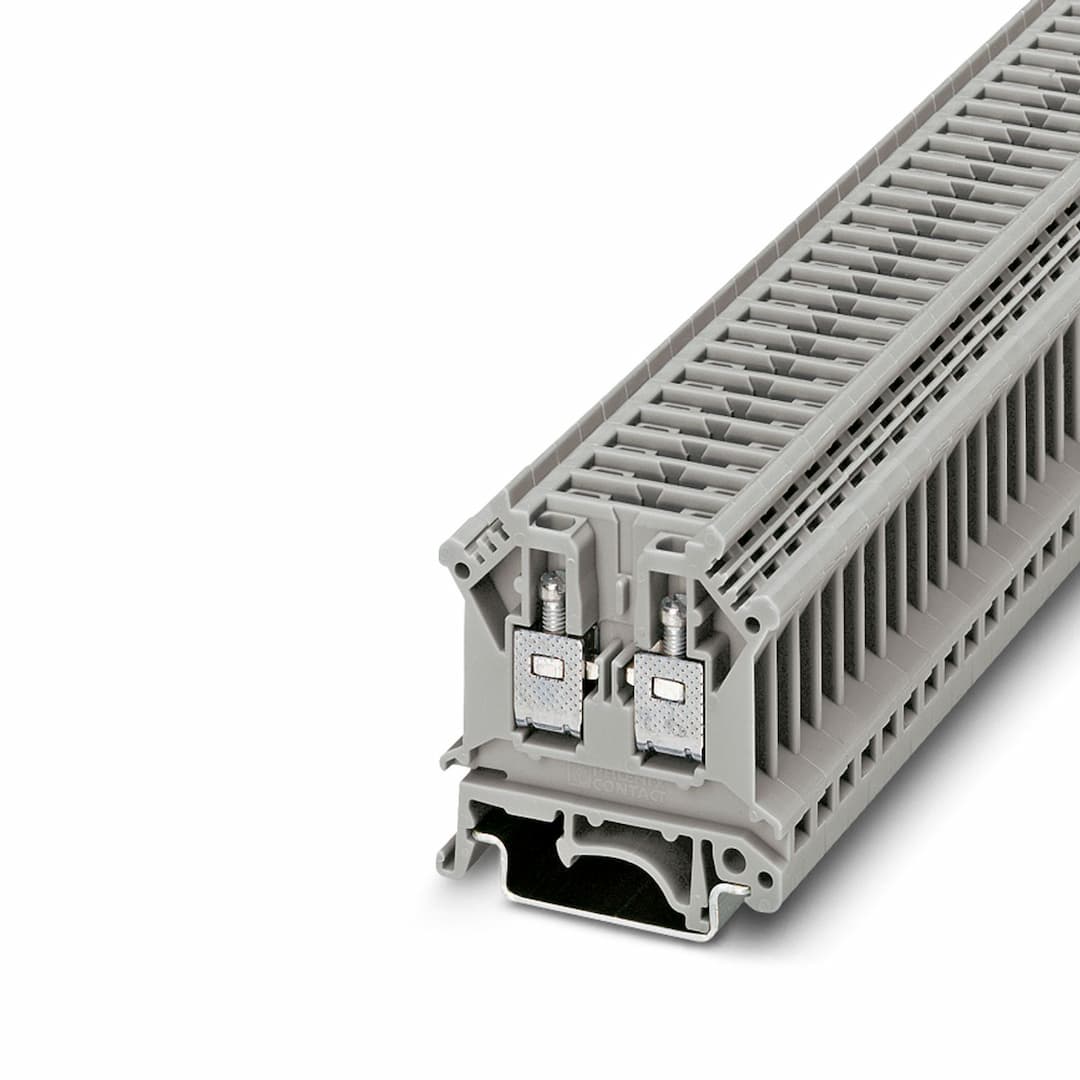

UK 4-TG-P/P
Product ID:22502
Updated: 2026/7/13
Key Features
- 1Compact design with a width of just 6.2 mm.
- 2High current capacity of 16 A with a nominal voltage of 500 V.
- 3Robust insulation with PA material and a flammability rating of UL 94 V2.
- 4Meets IEC 60947-7-1 standards for secure connections.
- 5Durable and reliable with passed surge voltage and power-frequency withstand tests.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| General | Current and voltage are determined by the plug used. | Product type | Disconnect terminal block |
| Number of connections | 2 | Number of rows | 1 |
| Overvoltage category | III | Degree of pollution | 3 |
| Rated surge voltage | 6 kV | Number of connections per level | 2 |
| Nominal cross section | 4 mm² | Screw thread | M3 |
| Tightening torque | 0.5 ... 0.6 Nm | Stripping length | 9 mm |
| Internal cylindrical gage | A3 | Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² | Cross section AWG | 24 ... 12 (converted acc. to IEC) |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² | Conductor cross section, flexible [AWG] | 24 ... 12 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 2.5 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 2.5 mm² |
| Cross-section with insertion bridge, rigid | 1.5 mm² | Cross-section with insertion bridge, flexible | 1.5 mm² |
| 2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible | 0.2 mm² ... 1.5 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² |
| Nominal current | 16 A | Maximum load current | 16 A (with 4 mm² conductor cross section) |
| Nominal voltage | 500 V | Nominal cross section | 4 mm² |
| Width | 6.2 mm | End cover width | 1.8 mm |
| Color | gray | Flammability rating according to UL 94 | V2 |
| Insulating material group | I | Insulating material | PA |
| Static insulating material application in cold | -40 °C | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C | Test voltage setpoint | 7.3 kV |
| Result | Test passed | Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Result | Test passed | Short-time withstand current 4 mm² | 0.48 kA |
| Result | Test passed | Test voltage setpoint | 1.89 kV |
| Result | Test passed | Open side panel | Yes |
| Result | Test passed | DIN rail/fixing support | NS 32/NS 35 |
| Test force setpoint | 1 N | Result | Test passed |
| Rotation speed | 10 rpm | Revolutions | 135 |
| Conductor cross section/weight | 0.2 mm² / 0.2 kg
4 mm² / 0.9 kg | Result | Test passed |
| Time of exposure | 30 s | Result | Test passed |
| Connection in acc. with standard | IEC 60947-7-1 | Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
