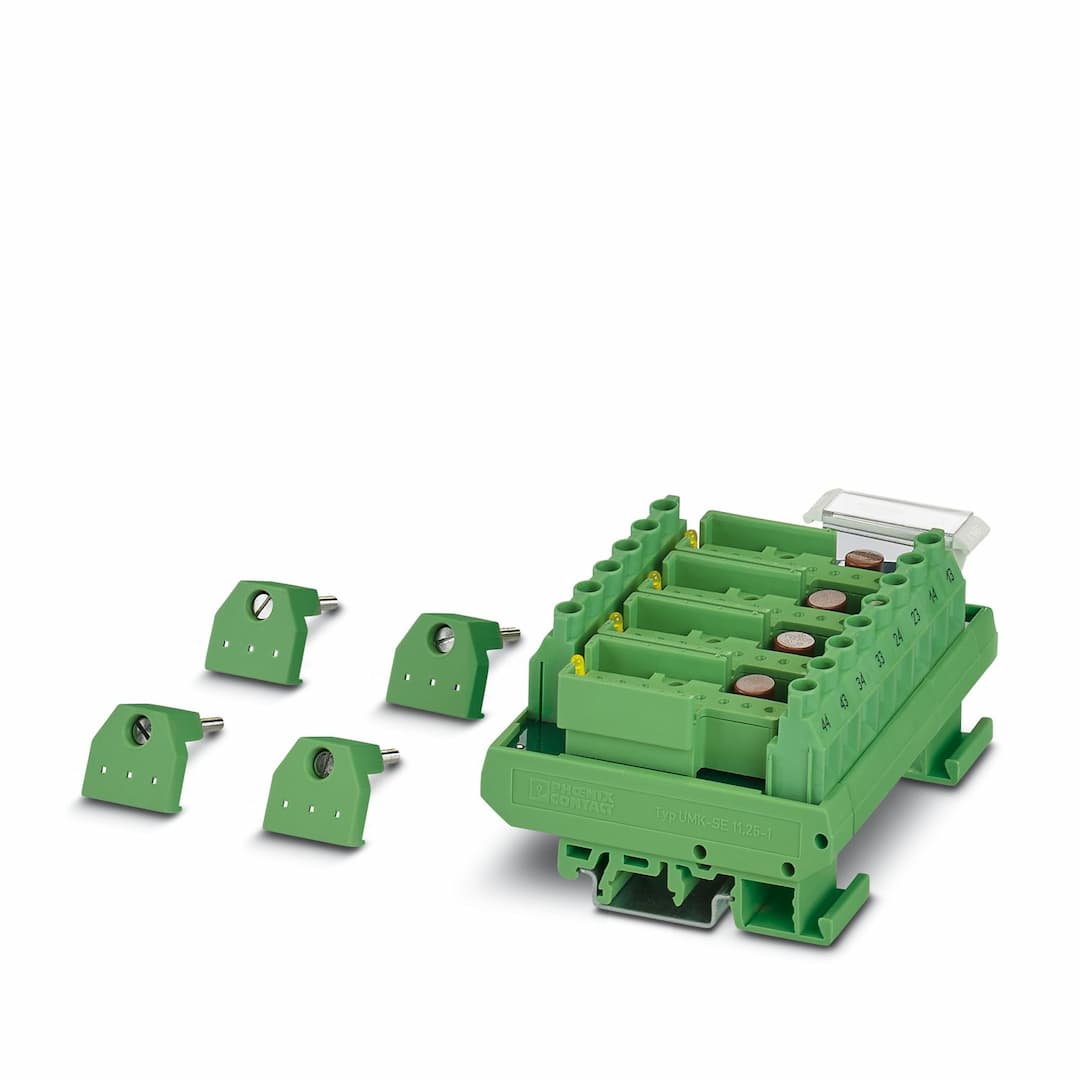

UMK- 4 OM-R/MF/P
Product ID:23601
Updated: 2026/7/12
Key Features
- 1Highly Reliable Interface Module: Designed for secure and efficient control logic applications.
- 2Plug-in Socket for 4 Solid-State Relays: Easily integrate with digital I/O modules.
- 3Integrated Security Latch: Ensures safe and reliable operation.
- 4Screw Connection and Light Indicator: Easy installation and monitoring.
- 5Integrated Fuse for Line Protection: Provides additional safety features.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Multi-channel solid-state relay module | No. of channels | 4 |
| Compatible components | Digital I/O modules | With components | no |
| Article revision | 05 | Input voltage range | 4 V ... 32 V |
| Typical input current at U | 30 mA (Optocoupler dependent) | Operating voltage display | Yellow LED |
| Status display/channel | Yellow LED | Compatible components | Digital I/O modules |
| Limiting continuous current | 4 A | Error detection (line break / short-circuit) | no |
| Connection method | Screw connection | Stripping length | 8 mm |
| Screw thread | M3 | Number of connections | 2 |
| Number of positions | 6 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Connection method | Screw connection | Stripping length | 8 mm |
| Screw thread | M3 | Number of connections | 8 |
| Number of positions | 6 | Conductor cross section rigid | 0.2 mm² ... 6 mm² |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² | Conductor cross section AWG | 24 ... 10 |
| Status display present | Yes | Width | 90 mm |
| Height | 77 mm | Depth | 72 mm |
| Color | green (RAL 6021) | Housing insulation material | PVC, side panel PA non-reinforced, |
| Ambient temperature (operation) | -20 °C ... 55 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Standards/regulations | DIN VDE 0110b, Gr. C for 250 V DC
DIN VDE 0160 (in relevant parts) | Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
