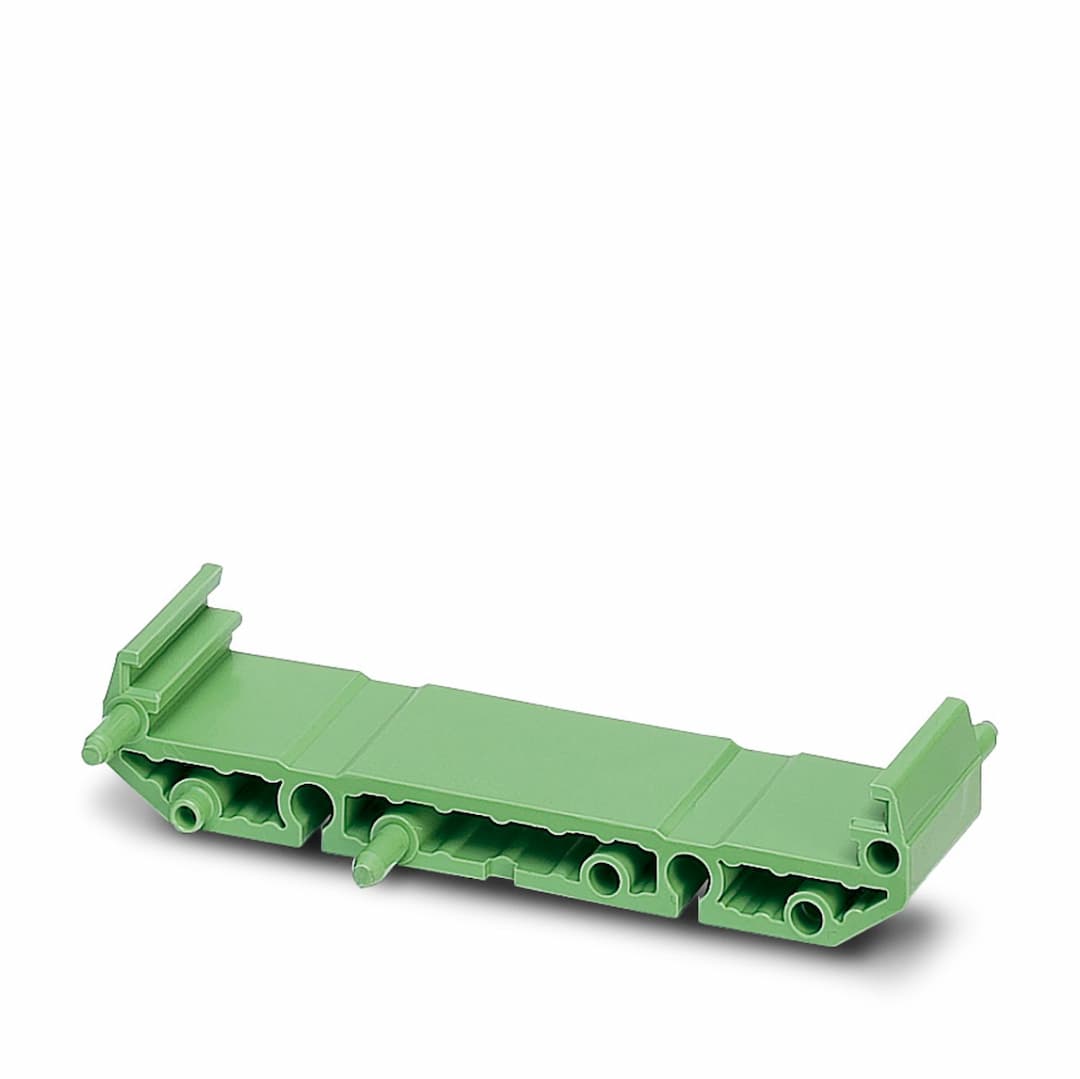

UMK-BE 22,5 GROSSVERPACKUNG
Product ID:23356
Updated: 2026/7/27
Key Features
- 1Made from high-quality polyamide material for long-lasting performance.
- 2Module width of 22.5 mm with press-drawn section housings for easy customization.
- 3Meets China RoHS standards with no hazardous substances above threshold values.
- 4Operates from -40°C to 105°C, suitable for various ambient conditions.
- 5Compliant with UL 94 V2 flammability rating for enhanced safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Component housing lower part | Housing type | Press-drawn section housings |
| Housing series | UMK | Product family | UMK BE |
| Type | Module width 22,5 mm, since the housing can remain open at the top, it is possible for parts to protrude above the actual profile height | Type | Plug-in module base element |
| Ventilation openings present | no | Depth | 15.5 mm |
| Length | 22.5 mm | Profile width (external) | 77 mm |
| Profile width (internal) | 72.2 mm | Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V2 | Housing material | Polyamide |
| Surface characteristics | untreated | Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C | Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
Specifications may be subject to change without notice
