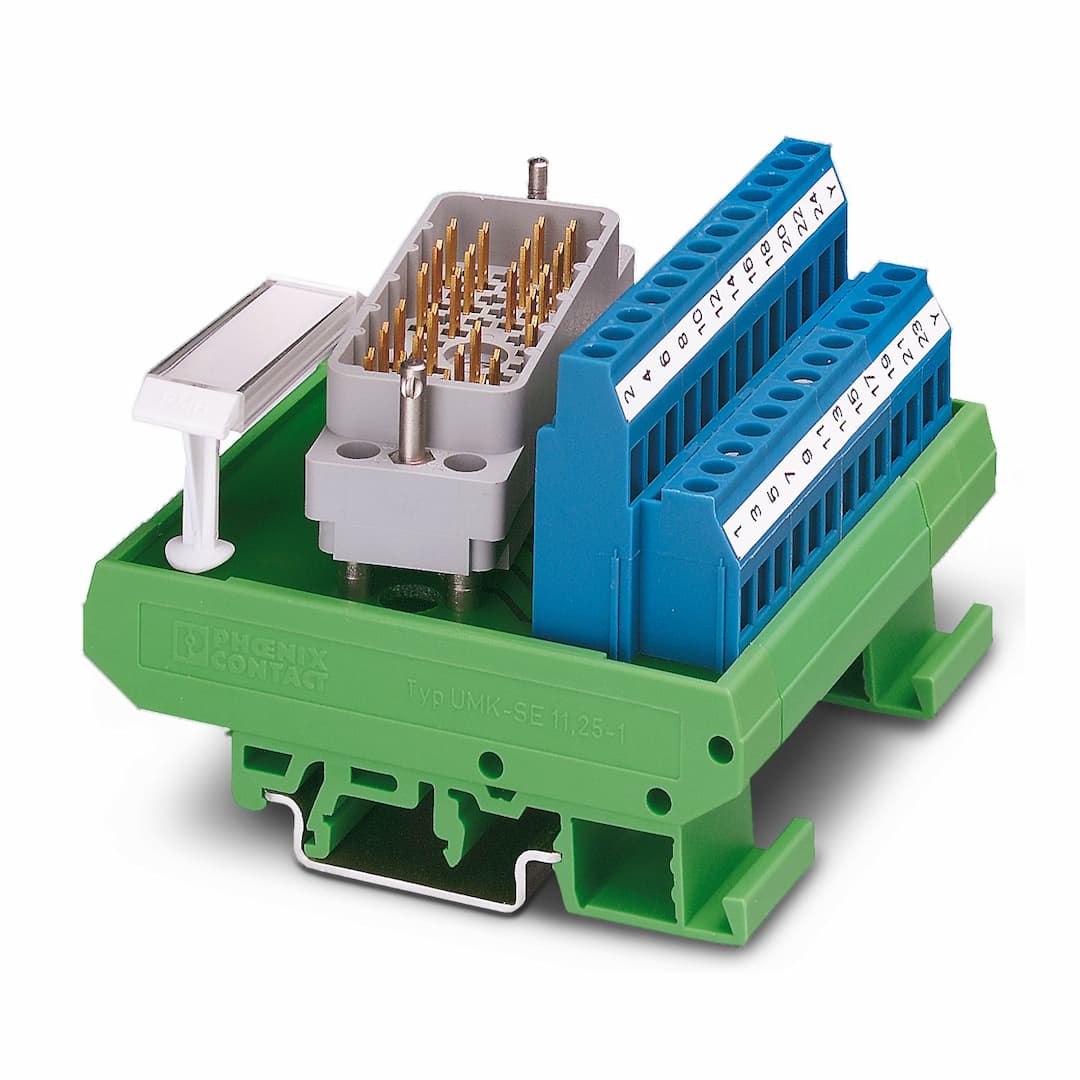

UMK- EC56/25/EEX-R
Product ID:19036
Updated: 2026/8/2
Key Features
- 125 Positions for Versatile Connectivity
- 2ELCO Connector for Secure Connections
- 3EEx i Protection for Hazardous Environments
- 4Screw Connection for Easy Installation
- 5Operates in -20°C to 50°C Ambient Temperature
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Interface module | Number of positions | 25 |
| Nominal voltage U | 30 V AC/DC | Max. current carrying capacity per branch | 4 A |
| Max. total current of all branches | 42.5 A (25 branches, each with 1.7 A) | Connection in acc. with standard | IEC / EN |
| Connection method | Screw connection | Stripping length | 8 mm |
| Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Connection method | ELCO connector | Number of connections | 1 |
| Number of positions | 25 | Note | Pin strip type 8016 (EEx i protection), right |
| Status display present | No | Width | 78.8 mm |
| Height | 77 mm | Depth | 58.5 mm |
| Color | green (RAL 6021) | Housing insulation material | Polyamide PA non-reinforced |
| Ambient temperature (operation) | -20 °C ... 40 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Standards/regulations | EN 50020
VDE 0165 | Mounting position | any |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
