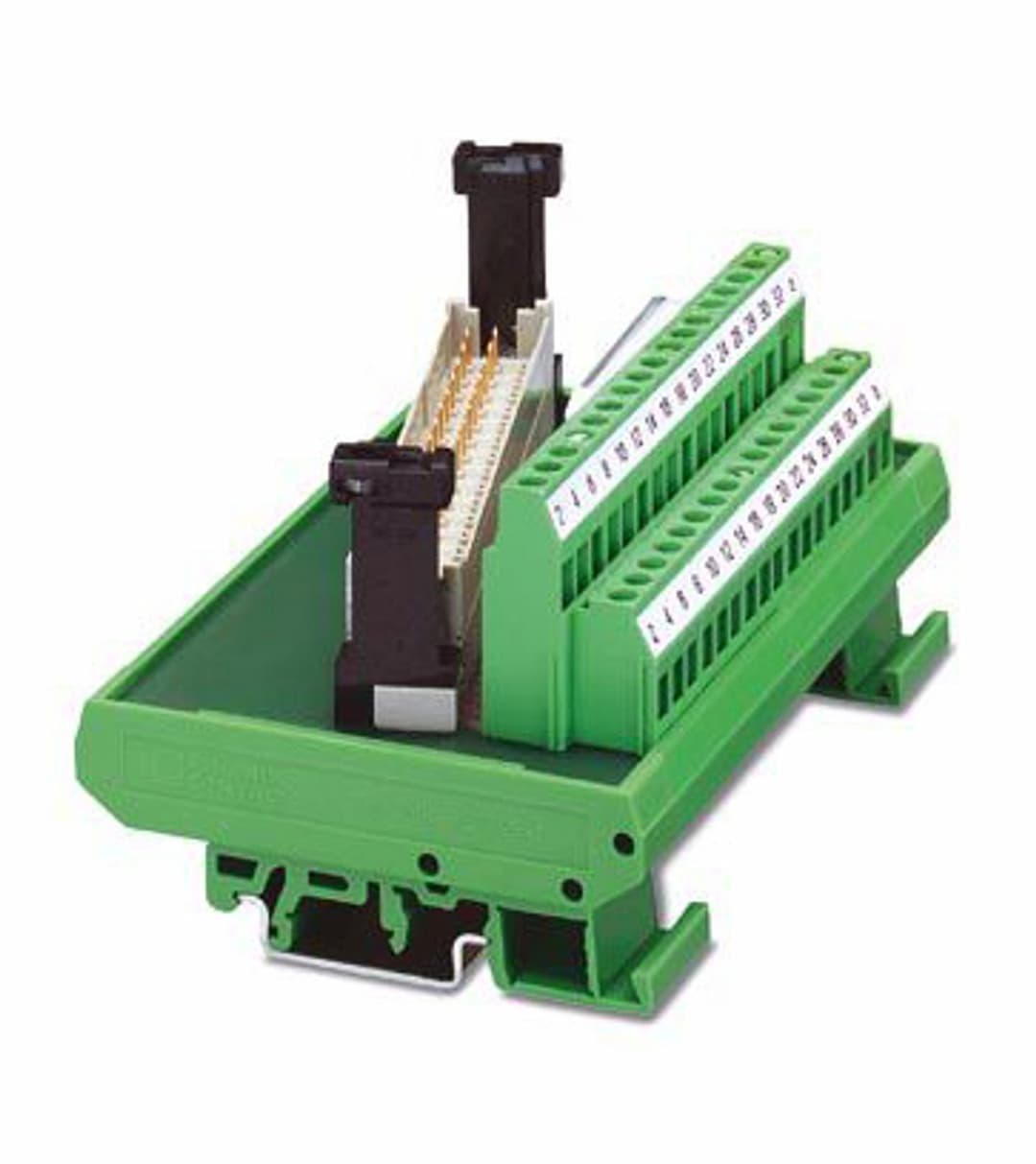

UMK- F32F/S-VR
Product ID:23647
Updated: 2026/7/12
Key Features
- 1Highly Versatile Interface Module: Designed for various applications with 32 poles.
- 2Robust Electrical Properties: Handles up to 250 V AC and 4 A max branch current.
- 3Flexible Connection Options: Compatible with IEC 603/DIN 41612 connectors.
- 4Durable Construction: Built with a robust, inclinable design for easy installation.
- 5Enhanced Signal Transfer: Equipped with connectors z, b, and h, ensuring reliable signal transfer.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Interface module | Number of positions | 32 |
| Nominal voltage U | 250 V AC | Max. current carrying capacity per branch | 4 A |
| Connection in acc. with standard | IEC / EN | Connection method | Screw connection |
| Stripping length | 8 mm | Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 | Connection method | IEC 603/DIN 41612 connection |
| Status display present | No | Width | 112.5 mm |
| Height | 77 mm | Depth | 62.5 mm |
| Color | green (RAL 6021) | Housing insulation material | Polyamide PA non-reinforced |
| Standards/regulations | DIN VDE 0110 | Mounting position | any |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
