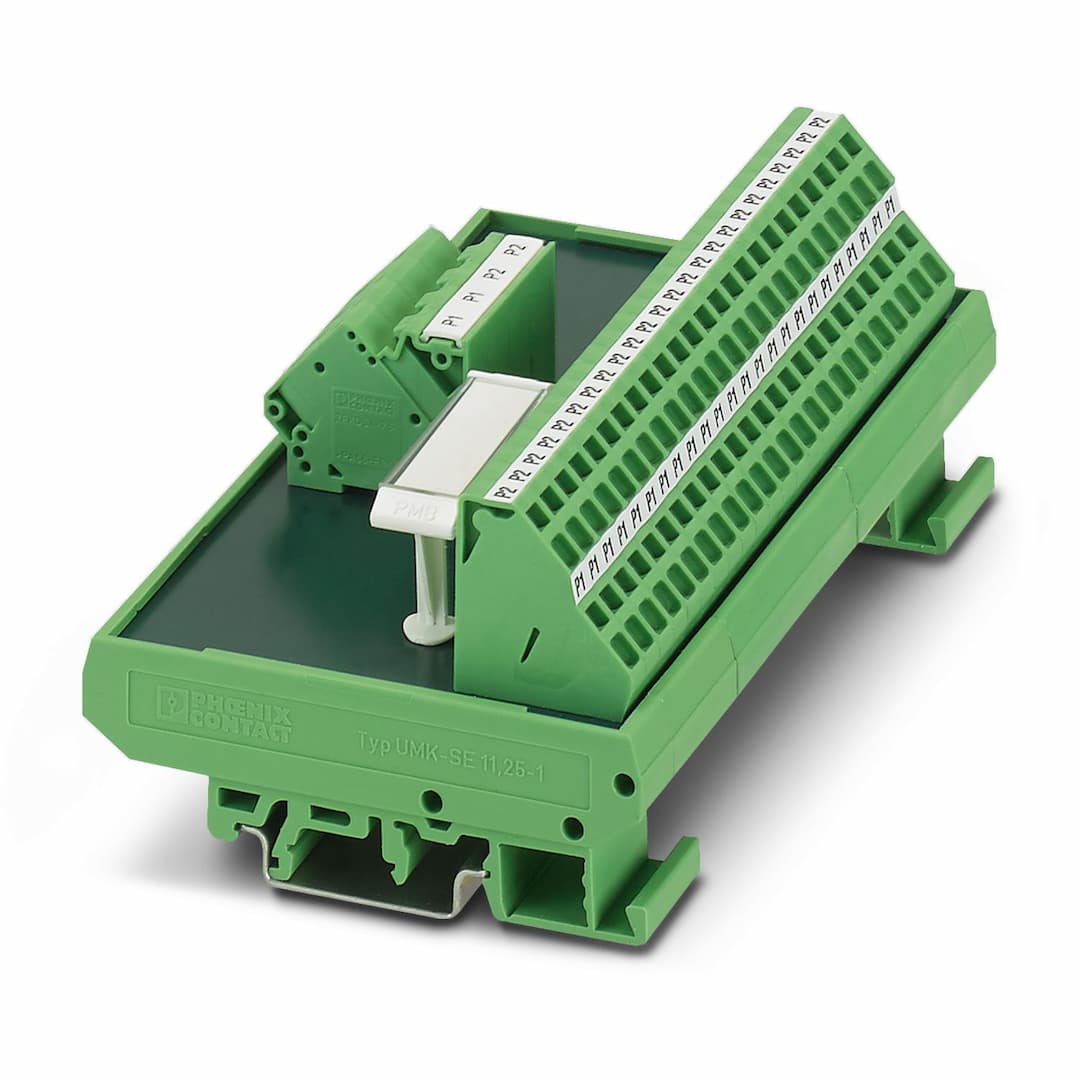

UMK- PVB 2/48/ZFKDS
Product ID:22646
Updated: 2026/4/3
Key Features
- 1Consecutive Numbering: Simplify cable management with consecutive numbering for easy identification.
- 2Separate Supply: Ensure reliable operation with a separate supply for each potential level.
- 3Two Potential Levels: Handle multiple signals efficiently with two equipotential busbars (P1, P2).
- 4Compact Design: Achieve up to 20% higher signal density due to the compact design.
- 5Compliance & Safety: Meets standards like DIN EN 50178, UL Recognized, and cULus Recognized for enhanced safety and compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Notes on operation | The necessary requirements for insulation (basic insulation or reinforced insulation) from adjacent modules (in DIN-rail direction) must be realized by applying suitable measures (e. g., partition plates). | Notes on operation | Ensure that the supply voltage of the device has a common reference potential. |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. | Product type | Potential distributor |
| Product family | VARIOFACE | Article revision | 06 |
| Insulation | Functional insulation | Pollution degree | 2 |
| Nominal voltage U | 250 V AC/DC | Max. current carrying capacity per branch | 17 A |
| Max. total current of all branches | 32 A (per potential) | Rated insulation voltage | 260 V |
| Rated surge voltage | 2.3 kV | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Number of connections | 2 |
| Conductor cross section rigid | 0.2 mm² ... 6 mm² | Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 10 | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Number of connections | 48 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 | Width | 135 mm |
| Height | 77 mm | Depth | 51.5 mm |
| Color | green (RAL 6021) | Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Standards/regulations | EN IEC 61010-2-201 | Mounting type | DIN rail mounting |
| Mounting position | any |
Specifications may be subject to change without notice
