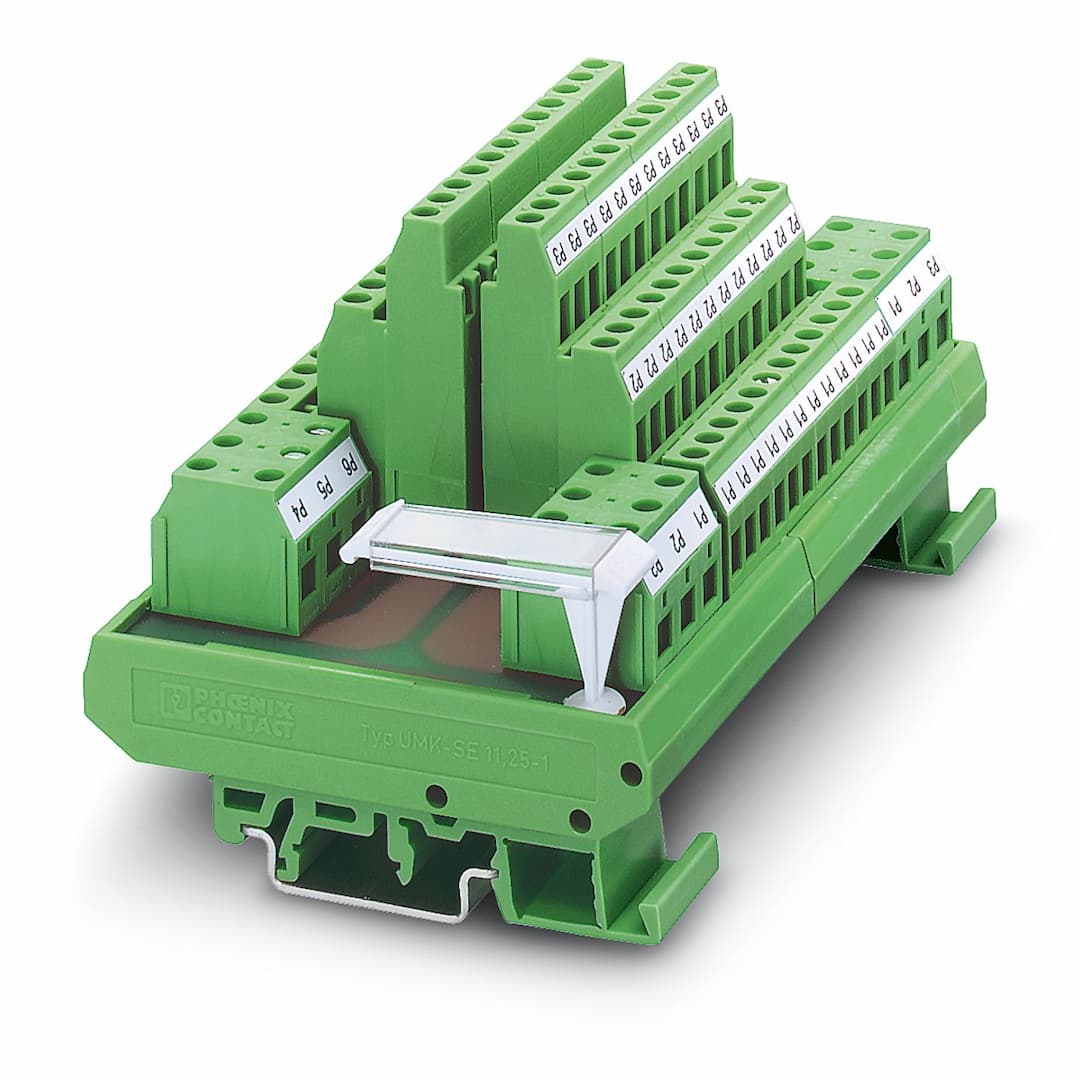

UMK- PVB 6
Product ID:19997
Updated: 2026/7/12
Key Features
- 1Equipped with six equipotential busbars (P1-P6) for potential distribution.
- 2Functional insulation and rated insulation voltage of 250 V AC/DC.
- 3Screw connection method with stripping length of 8 mm and M3 screw thread.
- 4Max. current carrying capacity per branch is 16 A, suitable for various industrial applications.
- 5Dimensions of 124 mm width, 77 mm height, and 71 mm depth, ideal for DIN rail mounting.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Notes on operation | The necessary requirements for insulation (basic insulation or reinforced insulation) from adjacent modules (in DIN-rail direction) must be realized by applying suitable measures (e. g., partition plates). | Notes on operation | Ensure that the supply voltage of the device has a common reference potential. |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. | Product type | Potential distributor |
| Product family | VARIOFACE | Potential connections | Per potential (P1...P6) 2 power/12 distributor terminal blocks |
| Article revision | 07 | Insulation | Functional insulation |
| Pollution degree | 2 | Nominal voltage U | 250 V AC/DC |
| Max. current carrying capacity per branch | 16 A | Max. total current of all branches | 16 A (per potential) |
| Rated insulation voltage | 250 V | Rated surge voltage | 2.5 kV |
| Potential connections | Per potential (P1...P6) 2 power/12 distributor terminal blocks | Connection method | Screw connection |
| Stripping length | 8 mm | Screw thread | M3 |
| Number of connections | 6 | Conductor cross section rigid | 0.2 mm² ... 6 mm² |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² | Conductor cross section AWG | 24 ... 10 |
| Connection method | Screw connection | Stripping length | 8 mm |
| Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Width | 124 mm | Height | 77 mm |
| Depth | 71 mm | Color | green (RAL 6021) |
| Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | EN 60664-1 |
| Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
