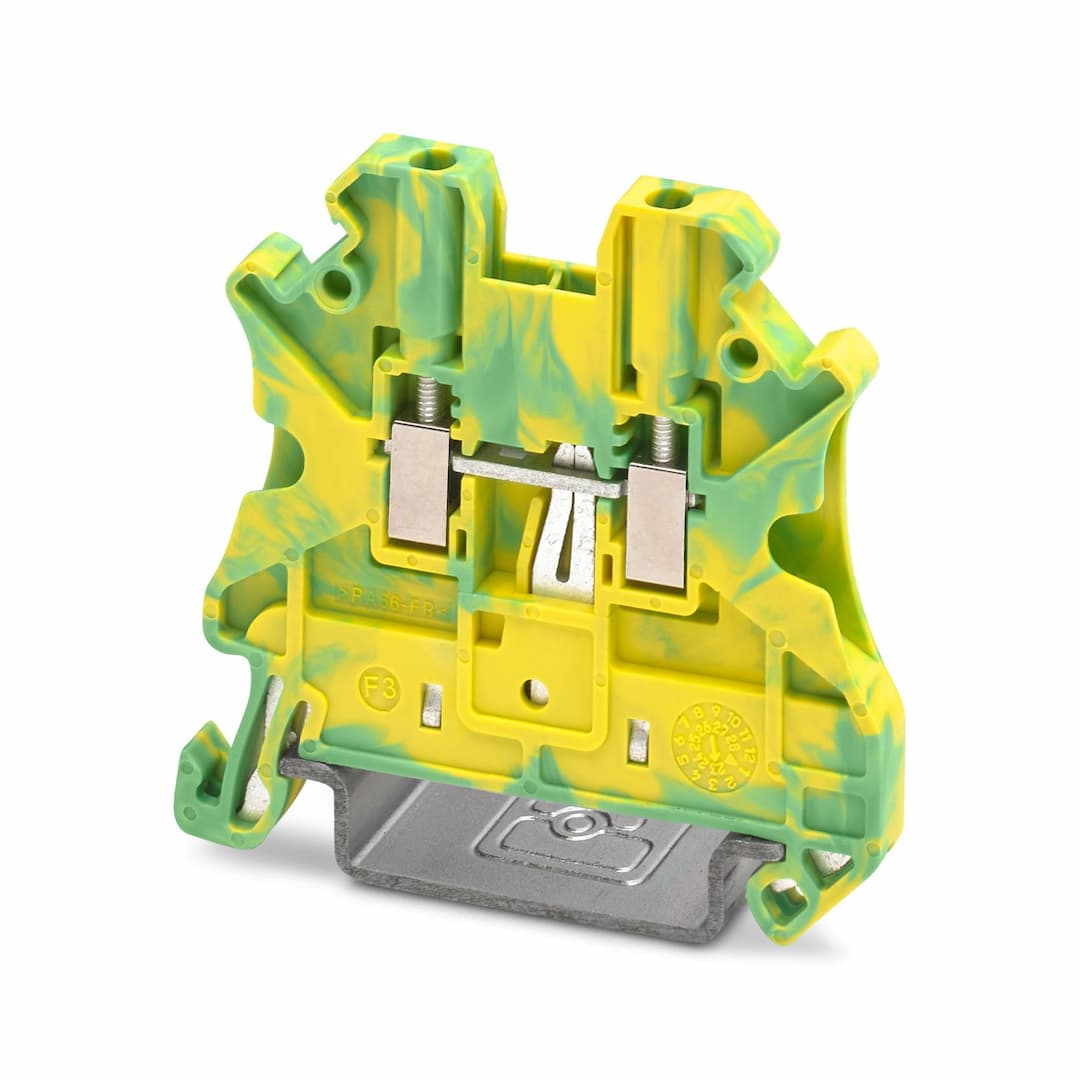

UT 1,5-PE
Product ID:22226
Updated: 2026/4/3
Key Features
- 1Durable Design: Tested for railway applications and meets stringent standards.
- 2Efficient Connections: 2 connections per level with a nominal cross section of 1.5 mm².
- 3Easy Installation: M2 screw thread for secure and straightforward mounting.
- 4High-Temperature Resistance: Operates in ambient temperatures from -60 °C to 105 °C.
- 5Compliant with Regulations: Meets DIN EN 50155 and VDE 0115-200 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Ground terminal block | Area of application | Railway industry
Machine building
Plant engineering
Process industry |
| Number of connections | 2 | Number of rows | 1 |
| Article revision | 00 | Overvoltage category | III |
| Degree of pollution | 3 | Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 0.56 W | Grounding foot | Yes |
| Number of connections per level | 2 | Nominal cross section | 1.5 mm² |
| Rated cross section AWG | 16 | Screw thread | M2 |
| Tightening torque | 0.22 ... 0.25 Nm | Stripping length | 7 mm ... 8 mm |
| Internal cylindrical gage | A1
B1 | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Cross section AWG | 26 ... 16 (converted acc. to IEC) | Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section, flexible [AWG] | 26 ... 16 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 1 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 0.75 mm² | Nominal cross section | 1.5 mm² |
| Width | 4.15 mm | Height | 48 mm |
| Depth | 46.9 mm | Color | green-yellow |
| Flammability rating according to UL 94 | V0 | Insulating material group | I |
| Insulating material | PA | Static insulating material application in cold | -60 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Open side panel | Yes | Specification | DIN EN 50155 (VDE 0115-200):2022-06 |
| Spectrum | Service life test category 2, bogie-mounted | Frequency | f |
| ASD level | 6.12 (m/s²)²/Hz | Acceleration | 3.12g |
| Test duration per axis | 5 h | Test directions | X-, Y- and Z-axis |
| Result | Test passed | Specification | DIN EN 50155 (VDE 0115-200):2022-06 |
| Pulse shape | Half-sine | Acceleration | 30g |
| Shock duration | 18 ms | Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) | Result | Test passed |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | NS 35/7,5
NS 35/15 |
