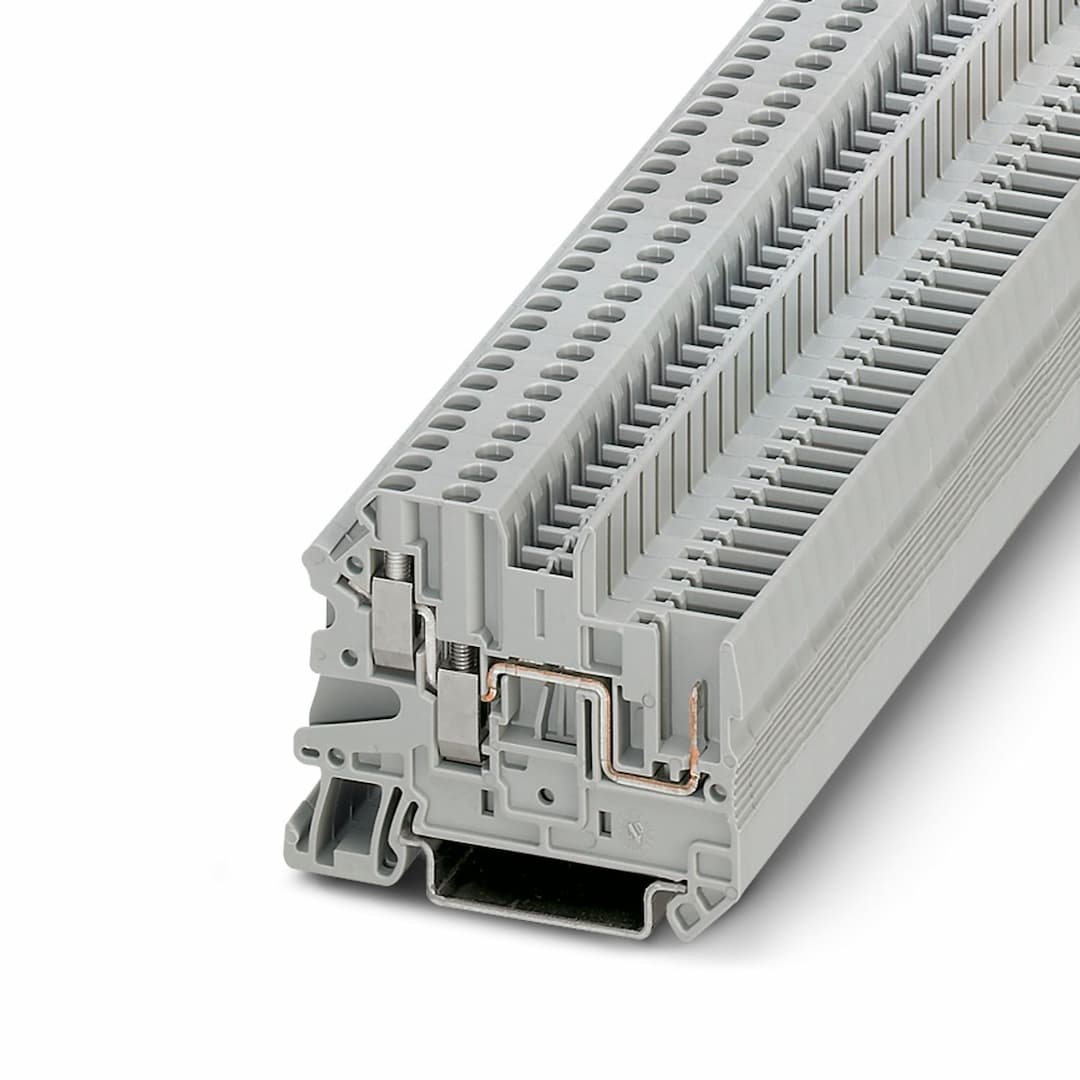

UT 2,5-TWIN/1P
Product ID:20423
Updated: 2026/4/3
Key Features
- 1Up to 500V, ensuring safe and reliable connections.
- 2Built to withstand harsh environments with specifications like DIN EN 50155 (VDE 0115-200).
- 3Half-sine pulse shape and 5g acceleration for robust performance.
- 4Suitable for various applications including industrial and automotive systems.
- 5Simple through-screw connection for quick and hassle-free setup.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| General | The max. load current must not be exceeded by the total current of all connected conductors. | Product type | Plug-in terminal block |
| Product family | UT | Number of positions | 1 |
| Number of connections | 3 | Number of rows | 1 |
| Potentials | 1 | Article revision | 05 |
| Overvoltage category | III | Degree of pollution | 3 |
| Rated surge voltage | 6 kV | Maximum power dissipation for nominal condition | 0.77 W |
| Number of connections per level | 3 | Nominal cross section | 2.5 mm² |
| Rated cross section AWG | 12 | Screw thread | M3 |
| Tightening torque | 0.5 ... 0.6 Nm | Stripping length | 9 mm |
| Internal cylindrical gage | A3 | Connection in acc. with standard | IEC 61984 |
| Conductor cross section rigid | 0.14 mm² ... 4 mm² | Cross section AWG | 26 ... 12 (converted acc. to IEC) |
| Conductor cross section flexible | 0.14 mm² ... 4 mm² | Conductor cross section, flexible [AWG] | 26 ... 12 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 2.5 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 2.5 mm² |
| 2 conductors with same cross section, solid | 0.14 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible | 0.14 mm² ... 1.5 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.14 mm² ... 1 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1 mm² |
| Nominal current | 24 A | Maximum load current | 24 A (in case of a 4 mm² conductor cross section, the maximum load current must not be exceeded by the total current of all connected conductors.) |
| Nominal voltage | 500 V | Nominal cross section | 2.5 mm² |
| Width | 5.2 mm | End cover width | 2.2 mm |
| Height | 55.7 mm | Depth on NS 35/7,5 | 47.5 mm |
| Depth on NS 35/15 | 55 mm | Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 | Insulating material group | I |
| Insulating material | PA | Static insulating material application in cold | -60 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg | Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Result | Test passed | Result | Test passed |
| Test voltage setpoint | 1.89 kV | Result | Test passed |
| Open side panel | Yes | DIN rail/fixing support | NS 35 |
| Result | Test passed | Insertion/withdrawal cycles | 100 |
| Time of exposure | 30 s | Result | Test passed |
| Specification | DIN EN 50155 (VDE 0115-200):2018-05 | Spectrum | Service life test category 1, class B, body mounted |
| Frequency | f | ASD level | 0.964 (m/s²)²/Hz |
| Acceleration | 0.58g | Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis | Result | Test passed |
| Specification | DIN EN 50155 (VDE 0115-200):2018-05 | Pulse shape | Half-sine |
| Acceleration | 5g | Shock duration | 30 ms |
| Number of shocks per direction | 3 | Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Result | Test passed | Ambient temperature (operation) | -60 °C (max. operating temperature see derating curve) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 61984 |
| Mounting type | NS 35/7,5
NS 35/15 |
