UT 4-TWIN/ 1P BU

Product ID:19602
Updated: 2026/4/3

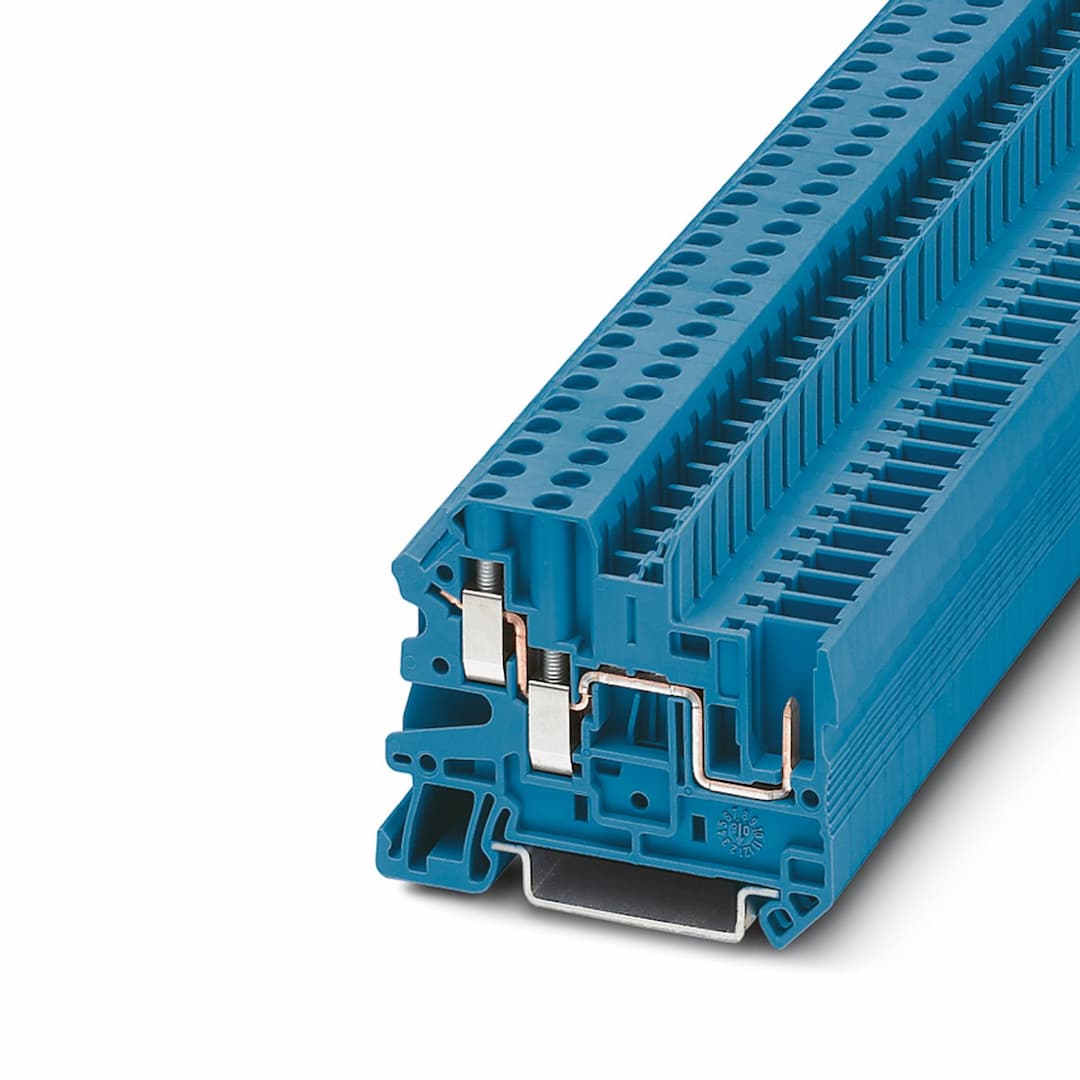

Phoenix Contact UT 4-TWIN/ 1P BU

Key Features

  • 1Secure Electrical Connections: The UT 4-TWIN/1P BU features a reliable screw connection method for secure and efficient electrical connections.
  • 2High Amperage Capacity: Supports up to 32 Amps, making it suitable for various industrial applications.
  • 3Wide Voltage Rating: Rated for 1000 Volts, ensuring it can handle high voltage requirements.
  • 4Compact Design: Measuring 6.2 mm in width, it is compact and space-efficient.
  • 5Durable Construction: Built with high-quality materials to withstand harsh industrial environments.
Product Details
UT 4-TWIN/ 1P BU
Phoenix Contact

Technical Specifications

Detailed engineering parameters

ParameterValueParameterValue
General
The max. load current must not be exceeded by the total current of all connected conductors.
Product type
Plug-in terminal block
Number of positions
1
Number of connections
3
Number of rows
1
Potentials
1
Article revision
06
Overvoltage category
III
Degree of pollution
3
Rated surge voltage
6 kV
Maximum power dissipation for nominal condition
1.02 W
Number of connections per level
3
Nominal cross section
4 mm²
Screw thread
M3
Tightening torque
0.6 ... 0.8 Nm
Stripping length
9 mm
Internal cylindrical gage
A4
Connection in acc. with standard
IEC 61984
Conductor cross section rigid
0.14 mm² ... 6 mm²
Cross section AWG
26 ... 10 (converted acc. to IEC)
Conductor cross section flexible
0.14 mm² ... 6 mm²
Conductor cross section, flexible [AWG]
26 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)
0.14 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)
0.14 mm² ... 4 mm²
2 conductors with same cross section, solid
0.14 mm² ... 1.5 mm²
2 conductors with same cross section, flexible
0.14 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve
0.14 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
0.5 mm² ... 1 mm²
Nominal current
32 A
Maximum load current
32 A (In the case of a 6 mm² conductor cross section, the maximum load current must not be exceeded by the total current of all connected conductors)
Nominal voltage
500 V
Nominal cross section
4 mm²
Width
6.2 mm
End cover width
2.2 mm
Height
55.7 mm
Depth on NS 35/7,5
47.5 mm
Depth on NS 35/15
55 mm
Color
blue (RAL 5015)
Flammability rating according to UL 94
V0
Insulating material group
I
Insulating material
PA
Static insulating material application in cold
-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))
130 °C
Relative insulation material temperature index (Elec., UL 746 B)
130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26
HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)
28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)
passed
Specific optical density of smoke NFPA 130 (ASTM E 662)
passed
Smoke gas toxicity NFPA 130 (SMP 800C)
passed
Open side panel
Yes
Ambient temperature (operation)
-60 °C (max. operating temperature see derating curve)
Ambient temperature (storage/transport)
-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)
-5 °C ... 70 °C
Ambient temperature (actuation)
-5 °C ... 70 °C
Permissible humidity (operation)
20 % ... 90 %
Permissible humidity (storage/transport)
30 % ... 70 %
Connection in acc. with standard
IEC 61984
Mounting type
NS 35/7,5 NS 35/15
