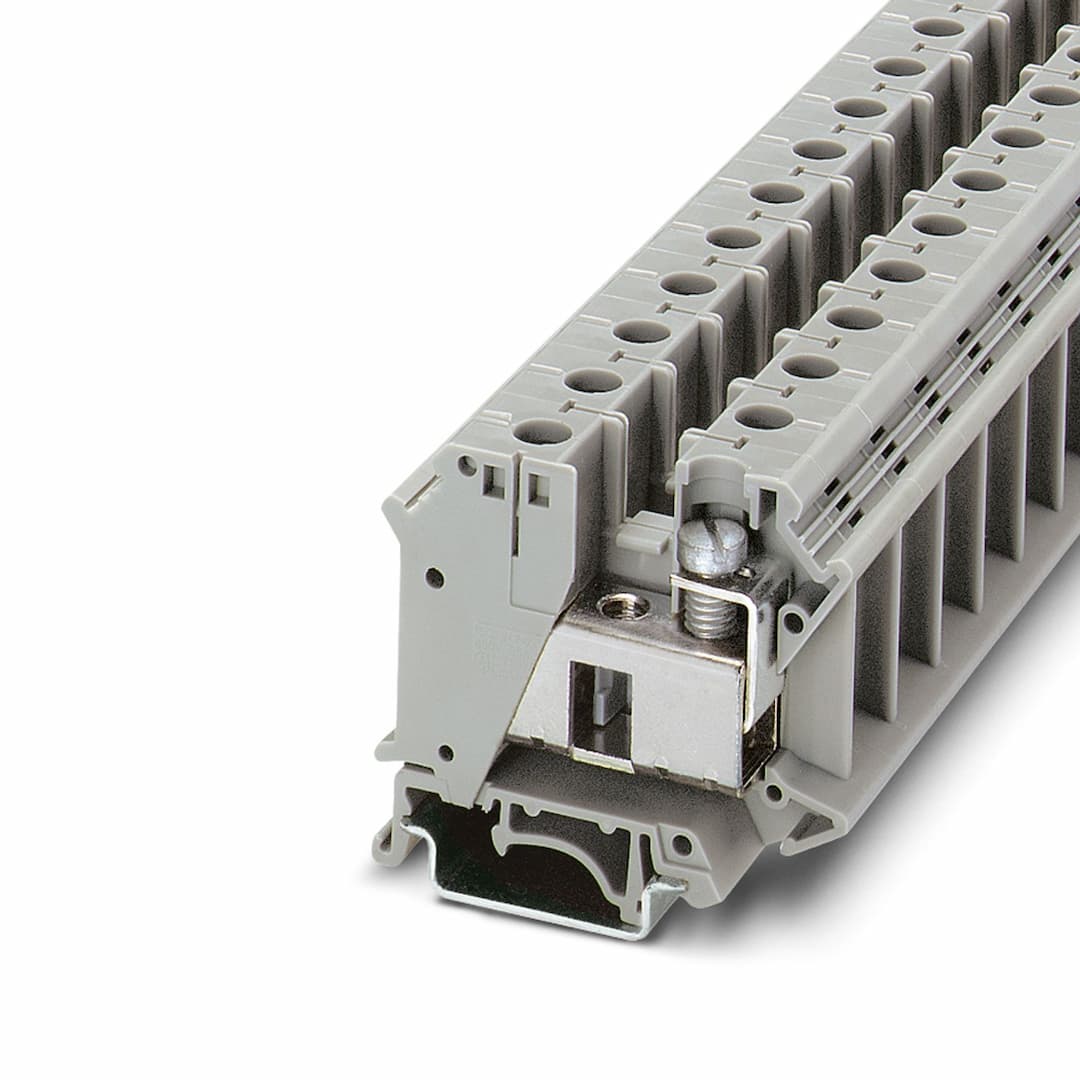

UTI 35
Product ID:19861
Updated: 2026/7/12
Key Features
- 1125A for reliable power distribution.
- 2Easy and secure connection method.
- 3Simplifies installation and reduces complexity.
- 4Made from high-quality insulating material (PA) for long-lasting performance.
- 5Fits perfectly on din rail systems, saving space in industrial settings.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Installation terminal block | Number of connections | 2 |
| Number of rows | 1 | Potentials | 1 |
| Article revision | 02 | Overvoltage category | III |
| Degree of pollution | 3 | Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 4.06 W | Number of connections per level | 2 |
| Nominal cross section | 35 mm² | Screw thread | M6 |
| Tightening torque | 3.2 ... 3.7 Nm | Stripping length | 16 mm |
| Connection in acc. with standard | IEC 60947-7-1 | Conductor cross section rigid | 0.75 mm² ... 35 mm² |
| Cross section AWG | 18 ... 2 (converted acc. to IEC) | Conductor cross section flexible | 0.75 mm² ... 35 mm² |
| Conductor cross section, flexible [AWG] | 18 ... 2 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.75 mm² ... 35 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.75 mm² ... 35 mm² | Cross-section with insertion bridge, rigid | 35 mm² |
| Cross-section with insertion bridge, flexible | 35 mm² | 2 conductors with same cross section, solid | 0.75 mm² ... 10 mm² |
| 2 conductors with same cross section, flexible | 0.75 mm² ... 10 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.75 mm² ... 10 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.75 mm² ... 6 mm² | Nominal current | 125 A |
| Maximum load current | 125 A (with 35 mm² conductor cross section) | Nominal voltage | 800 V |
| Nominal cross section | 35 mm² | Width | 15.2 mm |
| Height | 55 mm | Depth on NS 32 | 56 mm |
| Depth on NS 35/7,5 | 51 mm | Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V2 | Insulating material group | I |
| Insulating material | PA | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 115 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C | Test voltage setpoint | 9.8 kV |
| Result | Test passed | Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Result | Test passed | Short-time withstand current 35 mm² | 4.2 kA |
| Result | Test passed | Test voltage setpoint | 3.5 kV |
| Result | Test passed | Open side panel | No |
| Result | Test passed | DIN rail/fixing support | NS 32/NS 35 |
| Test force setpoint | 10 N | Result | Test passed |
| Rotation speed | 10 rpm | Revolutions | 135 |
| Conductor cross section/weight | 0.75 mm² / 0.4 kg
35 mm² / 6.8 kg | Result | Test passed |
| Time of exposure | 30 s | Result | Test passed |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-1 |
| Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
