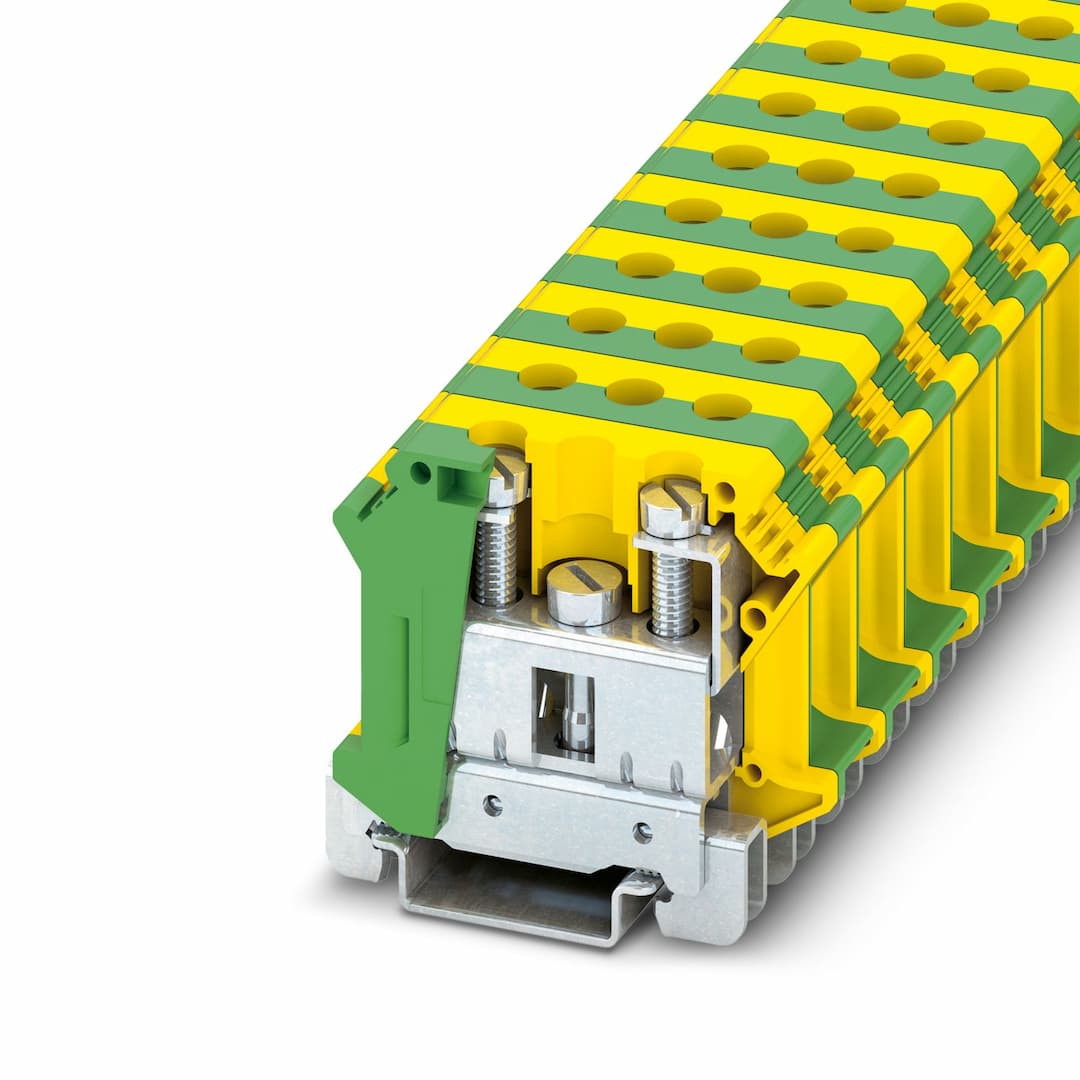

UTI 35-PE
Product ID:20780
Updated: 2026/7/12
Key Features
- 1Robust Installation Protection: Designed to safeguard electrical connections with a rigid cross-section of 0.75 mm² to 35 mm².
- 2Versatile Wire Compatibility: Compatible with AWG18 to AWG2 wires, ensuring a wide range of applications.
- 3High Surge Voltage Rating: Rated for a surge voltage of 8 kV, providing reliable protection against electrical surges.
- 4Industrial-Grade Construction: Built for industrial use with a pollution level of 3, making it suitable for harsh environments.
- 5Easy Screw Connection: Features a simple screw connection method for quick and secure installation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Ground terminal block | Number of connections | 2 |
| Number of rows | 1 | Potentials | 2 |
| Article revision | 02 | Overvoltage category | III |
| Degree of pollution | 3 | Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 4.06 W | Grounding foot | Yes |
| Number of connections per level | 2 | Nominal cross section | 35 mm² |
| Screw thread | M6 | Note | Please observe the current carrying capacity of the DIN rails. |
| Tightening torque | 3.2 ... 3.7 Nm | Stripping length | 16 mm |
| Connection in acc. with standard | IEC 60947-7-2 | Conductor cross section rigid | 0.75 mm² ... 35 mm² |
| Cross section AWG | 18 ... 2 (converted acc. to IEC) | Conductor cross section flexible | 0.75 mm² ... 35 mm² |
| Conductor cross section, flexible [AWG] | 18 ... 2 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.75 mm² ... 35 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.75 mm² ... 35 mm² | Nominal cross section | 35 mm² |
| Width | 15 mm | Height | 55 mm |
| Depth on NS 35/7,5 | 51 mm | Depth on NS 35/15 | 58.5 mm |
| Color | green-yellow | Flammability rating according to UL 94 | V2 |
| Insulating material group | I | Insulating material | PA |
| Static insulating material application in cold | -60 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Surface flammability NFPA 130 (ASTM E 162) | passed | Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed | Terminal block mounting | 2.5 Nm ... 3 Nm (PE foot with mounting screw, M5) |
| Open side panel | No | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
| Connection in acc. with standard | IEC 60947-7-2 | Mounting type | NS 35/7,5
NS 35/15 |
| Terminal block mounting | 2.5 Nm ... 3 Nm (PE foot with mounting screw, M5) |
Specifications may be subject to change without notice
