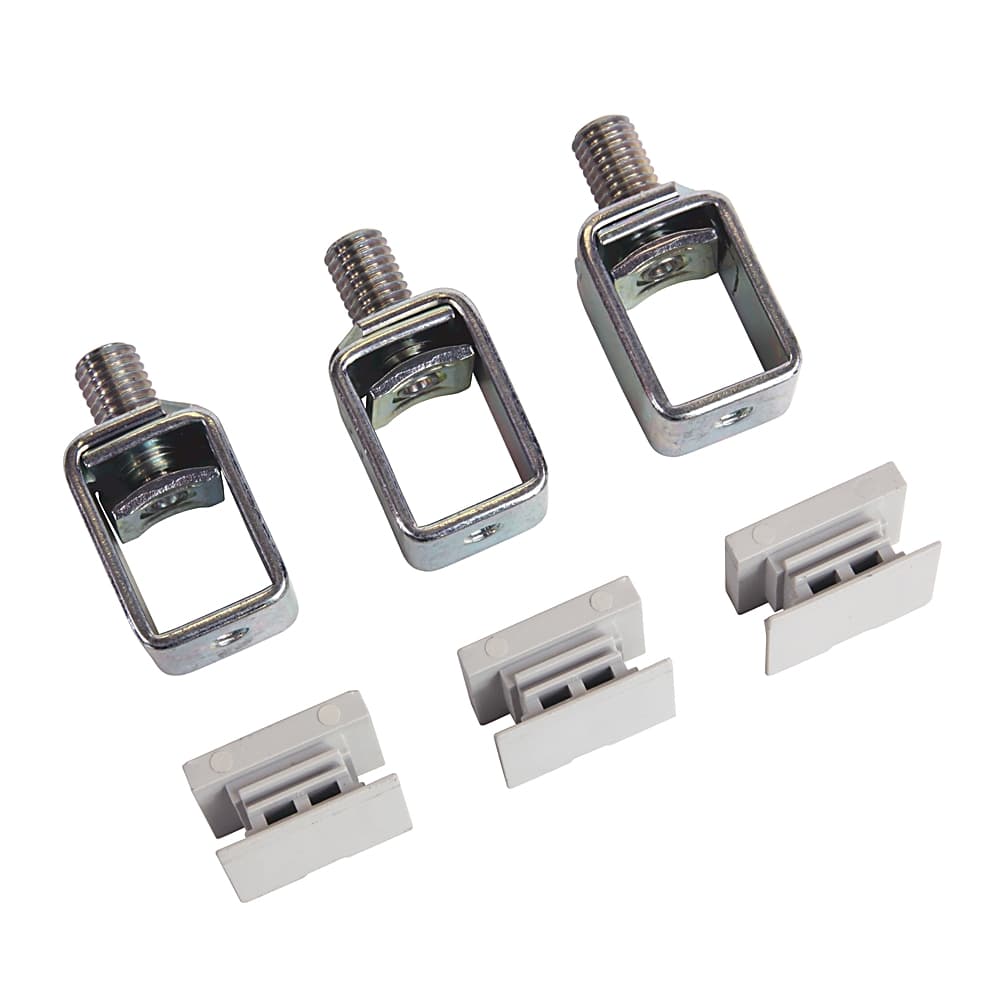

140G-J-TLC14
Product ID:228629
Updated: 2026/7/15
Key Features
- 11. Certifications and Standards Compliance: The 140G-J-TLC14 is certified to UL Listed, CSA Certified, and CE standards, ensuring compliance with UL489, CSA22.2 No. 5, and IEC 60947-2.;
- 22. Conductor Support: It supports conductors ranging from 10 to 350 MCM or 6 to 185 mm², providing flexibility in electrical connections.;
- 33. Material Type: Constructed from copper (Cu) only, ensuring high-quality electrical conductivity.;
- 44. Dimensions and Weight: The accessory measures 5.08 cm in height, 14.224 cm in width, and 19.939 cm in length, weighing 0.231 kg.;
- 55. Repairability: The 140G-J-TLC14 is not repairable, ensuring that any issues require replacement rather than repair.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Weight | 0.231 | Stock Status | NON_STOCKED |
| Dimension Length | 19.939 | Dimension Width | 14.224 |
| Lead Time | 42 | Dimension Height | 5.08 |
| Quick Turnaround | false | Preferred Availability | false |
| Repairable | NOT_REPAIRABLE | Circuit-Breaker Accessory | 140 g |
| Wire Type | Cu Only | Standards Compliance | UL489, CSA22.2 No. 5, IEC 60947-2 |
| Conductors | (1) 10...350 MCM or 6...185 mm2 | Certifications | UL Listed, CSA Certified, CE |
Specifications may be subject to change without notice
