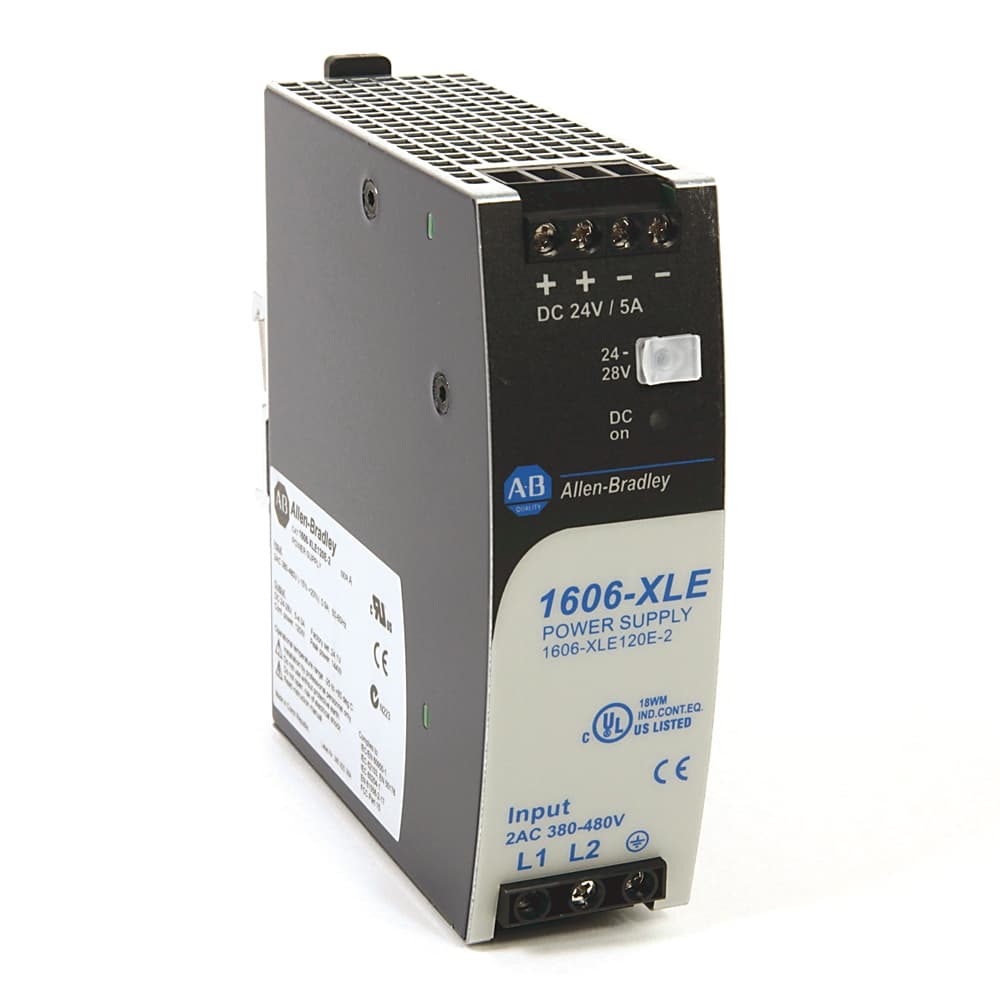

1606-XLE120E-2
Product ID:228162
Updated: 2026/4/3
Key Features
- 11. High Efficiency: The Allen Bradley 1606-XLE120E-2 power supply boasts an efficiency of up to 90.4%, ensuring minimal energy loss and maximizing power output. This makes it an excellent choice for applications where energy efficiency is crucial.;
- 22. Compact Design: With its ultra-slim design, the 1606-XLE120E-2 fits seamlessly into any industrial setup. Its compact size also reduces installation space requirements, making it easier to integrate into existing systems.;
- 33. Wide Operational Temperature Range: This power supply operates effectively within a wide temperature range of -25°C to +70°C, ensuring reliable performance even in harsh industrial environments.;
- 44. Low Inrush Current: The 1606-XLE120E-2 features an electronic inrush current limitation, which prevents sudden spikes in current during startup. This reduces stress on the system and prolongs the lifespan of the power supply.;
- 55. DIN Rail Mounting: Designed for easy installation, the 1606-XLE120E-2 can be mounted directly onto a DIN rail, simplifying the setup process and saving time. This makes it an excellent choice for applications where quick deployment is essential.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Stock Status | STOCKED | Dimension Length | 15.189 |
| Dimension Width | 14.3 | Lead Time | 5 |
| Dimension Height | 6.299 | Quick Turnaround | false |
| Preferred Availability | true | Repairable | NOT_REPAIRABLE |
| Weight | 0.585 | Lifetime, min | 92 kh (+40 °C) |
| Operating temperature | -25 °C | Ripple and noise, max | 50 mV |
| Wall mounting possible | Yes | MTBF | 1173 kh (+40 °C, SN29500) |
| Type of electric connection | Screw connection | Degree of protection (IP) | IP20 |
| Width | 40 mm | Direct mounting possible | No |
| Depth | 117 mm | Height | 124 mm |
| Stabilized | Yes | Rail mounting possible | Yes |
| Output voltage stabilized | Yes | Input inrush current | 4 A/4 A |
| Efficiency | 90.4 % typical | Derating | 3 W/°C |
| Power losses | 12.7 W typical | External input fuse, min | B-6 A or C-3 A |
| Output current range | 5 to 4.3 A | Power factor | 0.45 typical |
| Input inrush current limiter | Active | Power reserves | 20 % |
| Rated supply voltage at AC 60 Hz | 380 V | Rated supply voltage at AC 50 Hz | 380 V |
| 1st secondary output voltage | 24 V | Voltage type of supply voltage | AC |
| Power output | 120 W | Nominal value output current 1 | 5 A |
| Max. output current 1 | 5 A | Secondary voltage adjustable | Yes |
| Nominal value output voltage 1 | 24 V | Input Circuit Protection | 6 A Slow Blow Fuse or?Cat. No. 1489-A3C060 |
Specifications may be subject to change without notice
