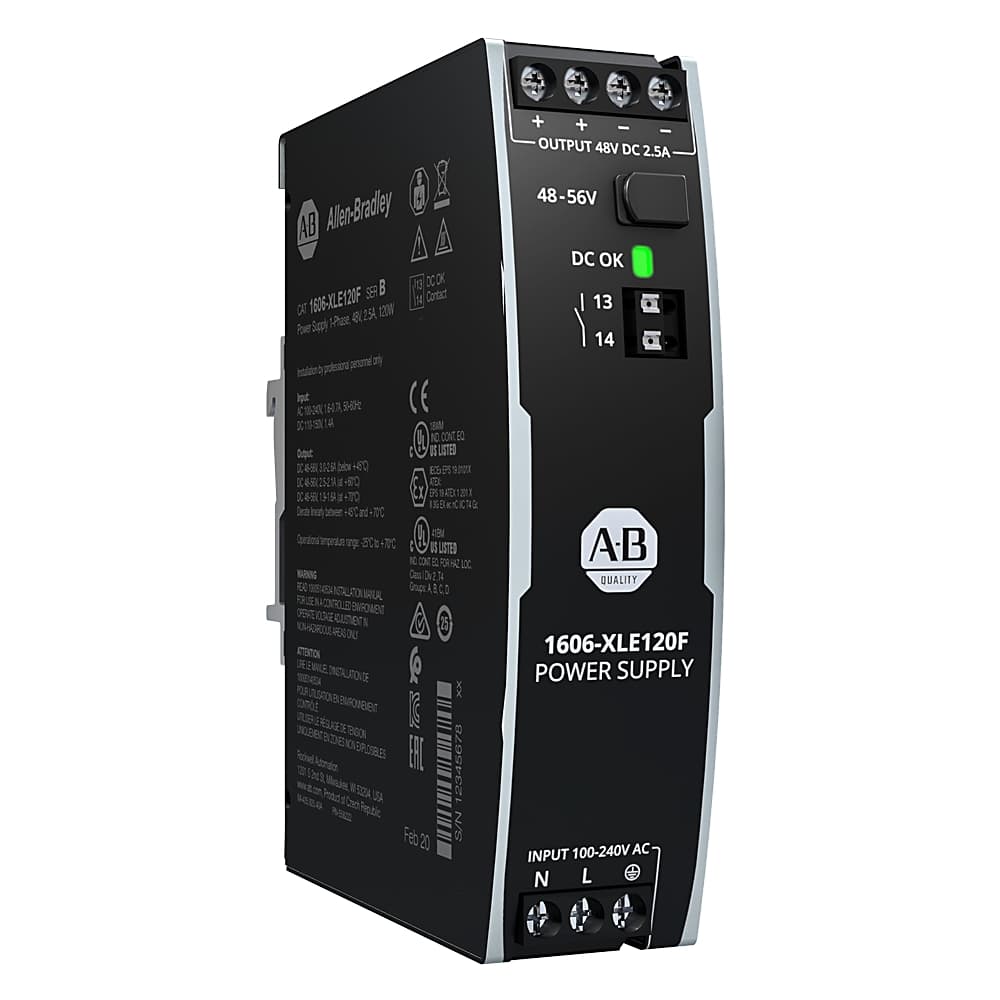

1606-XLE120F
Product ID:230459
Updated: 2026/7/14
Key Features
- 11. High Efficiency: The 1606-XLE120F power supply boasts an efficiency of 93.5% typical, reducing heat build-up in panels and ensuring reliable operation.;
- 22. Compact Design: With dimensions of 124 mm height, 102 mm depth, and 32 mm width, this power supply is designed to fit seamlessly into any industrial panel, minimizing space requirements.;
- 33. Adjustable Secondary Voltage: The 1606-XLE120F features true adjustable secondary voltage, allowing for precise control over output voltage to meet specific application needs.;
- 44. Reliability and Durability: This power supply is built with robust components and has a Mean Time Between Failures (MTBF) of 836 kh (+40 °C, SN29500), ensuring long-term reliability in demanding industrial environments.;
- 55. Versatile Mounting Options: The 1606-XLE120F supports rail mounting and wall mounting, providing flexibility in installation options to suit various industrial settings.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Stock Status | NON_STOCKED | Dimension Length | 15.24 |
| Dimension Width | 14.288 | Lead Time | 49 |
| Dimension Height | 6.191 | Quick Turnaround | false |
| Preferred Availability | false | Repairable | NOT_REPAIRABLE |
| Weight | 0.544 | Lifetime, min | 166 kh (+40 °C) |
| Operating temperature | -25 °C | Ripple and noise, max | 50 mV |
| Wall mounting possible | Yes | MTBF | 836 kh (+40 °C, SN29500) |
| Type of electric connection | Screw connection | Degree of protection (IP) | IP20 |
| Width | 32 mm | Direct mounting possible | No |
| Depth | 102 mm | Height | 124 mm |
| Stabilized | Yes | Rail mounting possible | Yes |
| Output voltage stabilized | Yes | Input inrush current | 4A/4A |
| Efficiency | 93.5 % typical | Derating | 3 W/°C |
| Power losses | 8.4 W typical | External input fuse, min | B-6 A or C-6 A |
| Output current range | 2.5 to 2.1 A | Power factor | 0.91 typical |
| DC OK relay contact | Yes | Power reserves | 20 % |
| Rated supply voltage at DC | 110 V | Rated supply voltage at AC 60 Hz | 100 V |
| Rated supply voltage at AC 50 Hz | 100 V | 1st secondary output voltage | 48 V |
| Voltage type of supply voltage | AC/DC | Power output | 120 W |
| Nominal value output current 1 | 2.5 A | Max. output current 1 | 2.5 A |
| Secondary voltage adjustable | Yes | Nominal value output voltage 1 | 48 V |
Specifications may be subject to change without notice
