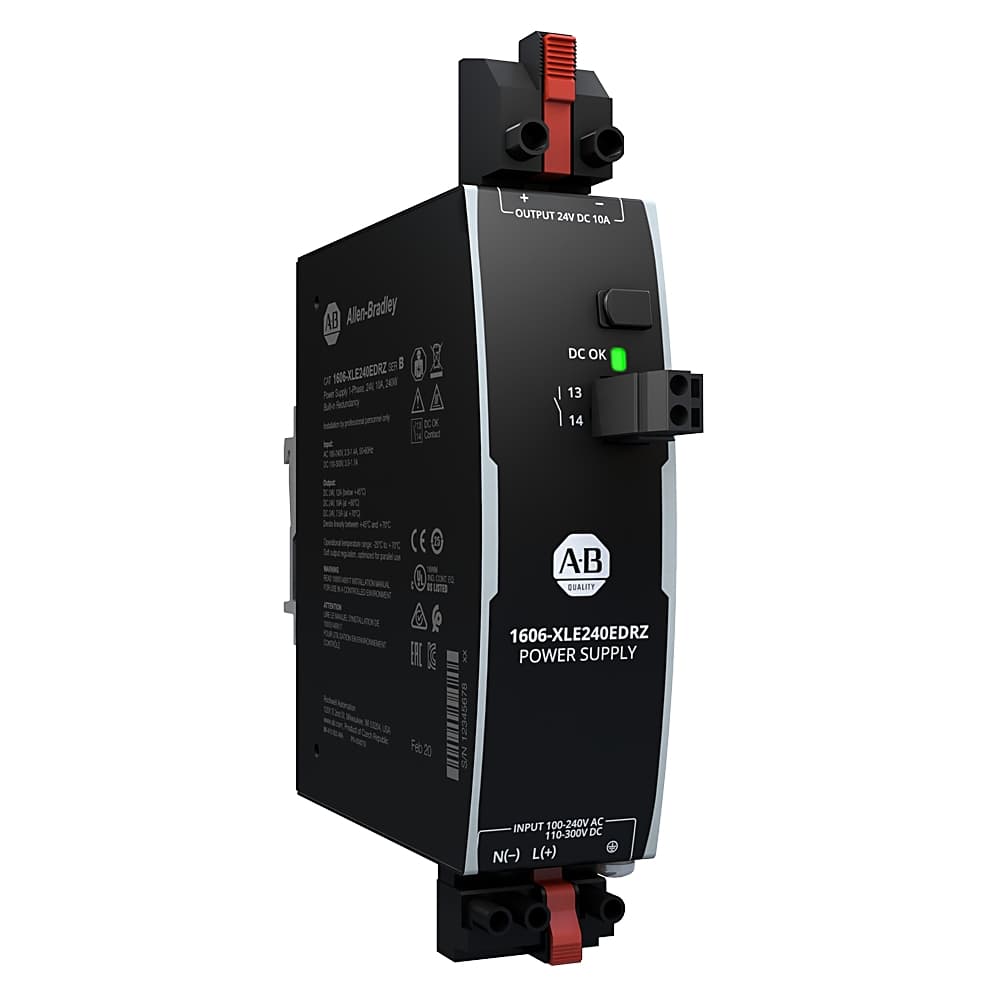

1606-XLE240EDRZ
Product ID:229641
Updated: 2026/4/3
Key Features
- 11. Redundancy Module for High Availability: The 1606-XLE240EDRZ features an active redundancy module, ensuring continuous operation even in case of a primary power supply failure. This module supports load-sharing configurations, enhancing system reliability.;
- 22. High Efficiency: With a typical efficiency of 0.97, this power supply minimizes heat generation and reduces energy losses. This results in a cooler operation and longer lifespan of the device.;
- 33. Compact Design: The 1606-XLE240EDRZ is designed to be ultra-compact, making it easy to integrate into various control systems without occupying excessive space.;
- 44. Wide Operating Temperature Range: This power supply operates within a wide temperature range of -25°C to +70°C, ensuring reliable performance in diverse environmental conditions.;
- 55. Enhanced Safety Features: The device includes multiple safety features such as DC OK LED indicators and overload protection, ensuring safe operation and minimizing the risk of system failures.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Stock Status | NON_STOCKED | Dimension Length | 15.24 |
| Dimension Width | 14.288 | Lead Time | 5 |
| Dimension Height | 9.525 | Quick Turnaround | false |
| Preferred Availability | false | Repairable | NOT_REPAIRABLE |
| Weight | 0.748 | Lifetime, min | 109 kh (+40 °C) |
| Operating temperature | -25 °C | Ripple and noise, max | 50 mV |
| Wall mounting possible | Yes | MTBF | 641 kh (+40 °C, SN29500) |
| Type of electric connection | Plug-in connection | Degree of protection (IP) | IP20 |
| Width | 39 mm | Direct mounting possible | No |
| Depth | 117 mm | Height | 124 mm |
| Adjustment range | Fixed | Stabilized | Yes |
| Rail mounting possible | Yes | Output voltage stabilized | Yes |
| Input inrush current | 6 A/9 A | Efficiency | 94.7 % typical |
| Derating | 6 W/°C | Power losses | 13.4 W typical |
| External input fuse, min | B-6 A or C-6 A | Power factor | 0.97 typical |
| Input inrush current limiter | Active | Hot-swap | Yes |
| DC OK relay contact | Yes | Power reserves | 20 % |
| Rated supply voltage at DC | 110 V | Rated supply voltage at AC 60 Hz | 100 V |
| Rated supply voltage at AC 50 Hz | 100 V | Voltage type of supply voltage | AC/DC |
| Power output | 240 W | Nominal value output current 1 | 10 A |
| Secondary voltage adjustable | No | Nominal value output voltage 1 | 24 V |
Specifications may be subject to change without notice
