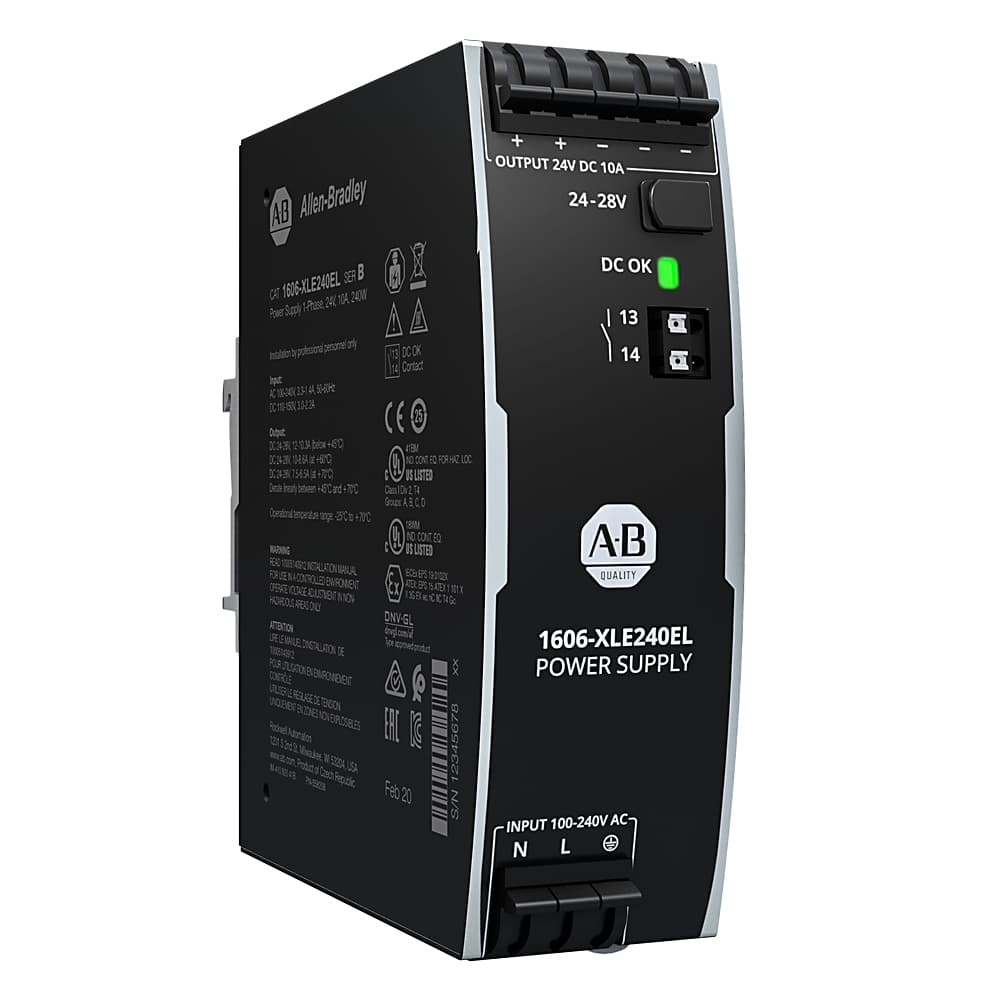

1606-XLE240EL
Product ID:230708
Updated: 2026/4/3
Key Features
- 11. Compact Design: The Allen Bradley 1606-XLE240EL features a compact design, enabling space savings in panels and making it ideal for applications where space is limited.;
- 22. High Efficiency: With an efficiency of 95.2%, this power supply minimizes heat waste and ensures efficient performance, reducing the need for additional cooling systems.;
- 33. Built-in Redundancy: The built-in redundancy modules ensure continuous power supply to the load, making it suitable for critical applications where downtime is not acceptable.;
- 44. Power Boost Option: The power boost option in select models accommodates high inrush currents, providing reliable operation during startup or transient conditions.;
- 55. Wide Input Voltage Range: Capable of taking single and multi-phase AC and DC input voltages, this power supply is versatile and can be used in various environments with different voltage requirements.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Stock Status | STOCKED | Dimension Length | 15.24 |
| Dimension Width | 13.97 | Lead Time | 5 |
| Dimension Height | 6.35 | Quick Turnaround | false |
| Preferred Availability | false | Repairable | NOT_REPAIRABLE |
| Weight | 0.696 | Lifetime, min | 120 kh (+40 °C) |
| Operating temperature | -25 °C | Ripple and noise, max | 50 mV |
| Wall mounting possible | Yes | MTBF | 667 kh (+40 °C, SN29500) |
| Type of electric connection | Spring clA connection | Degree of protection (IP) | IP20 |
| Width | 39 mm | Direct mounting possible | No |
| Depth | 117 mm | Height | 124 mm |
| Stabilized | Yes | Rail mounting possible | Yes |
| Output voltage stabilized | Yes | Input inrush current | 6 A/9 A |
| Efficiency | 95.2 % typical | Derating | 6 W/°C |
| Power losses | 12.1 W typical | External input fuse, min | B-6 A or C-6 A |
| Output current range | 10 to 8.6 A | Power factor | 0.97 typical |
| Input inrush current limiter | Active | DC OK relay contact | Yes |
| Power reserves | 20 % | Rated supply voltage at DC | 110 V |
| Rated supply voltage at AC 60 Hz | 100 V | Rated supply voltage at AC 50 Hz | 100 V |
| 1st secondary output voltage | 24 V | Voltage type of supply voltage | AC/DC |
| Power output | 240 W | Nominal value output current 1 | 10 A |
| Max. output current 1 | 10 A | Secondary voltage adjustable | Yes |
| Nominal value output voltage 1 | 24 V |
Specifications may be subject to change without notice
