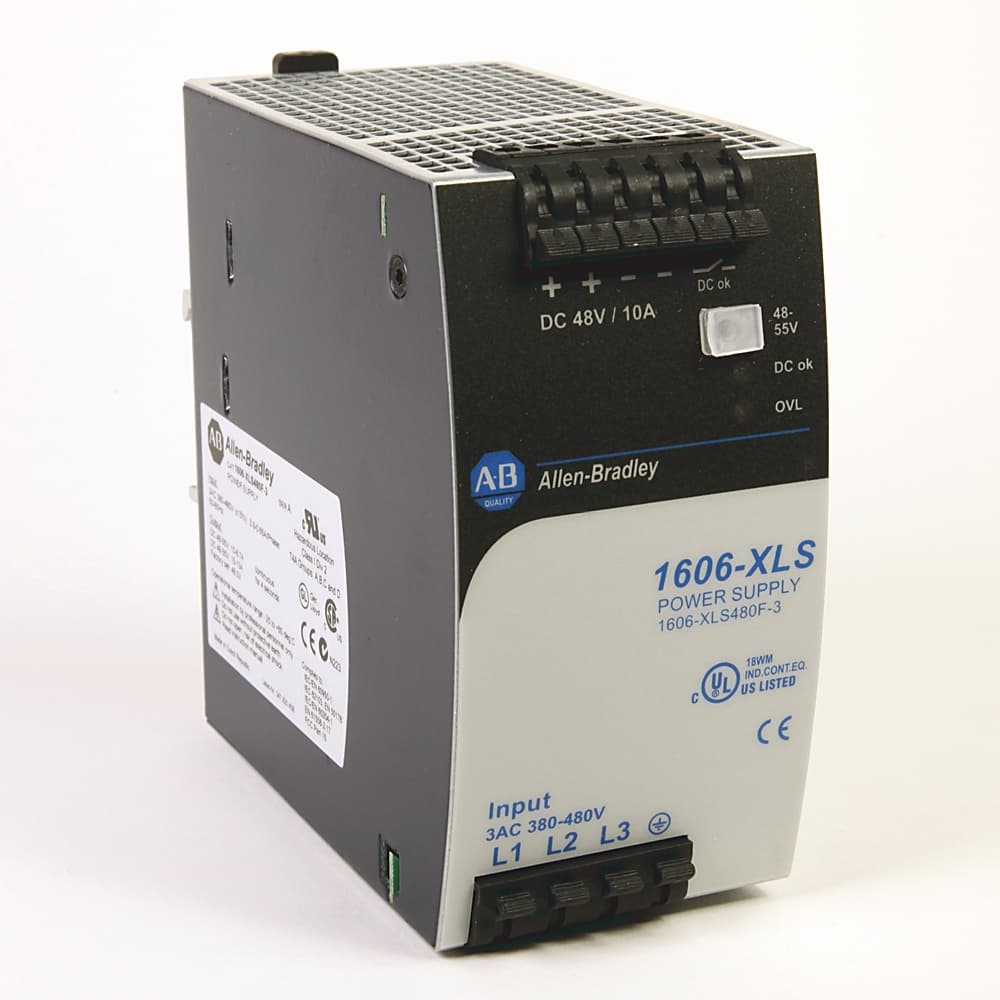

1606-XLS480F-3
Product ID:230375
Updated: 2026/7/14
Key Features
- 11. Ultra-Compact Design: The 1606-XLS480F-3 boasts an ultra-small size, making it ideal for space-constrained industrial settings. Its compact design allows for easier installation and integration into existing systems.;
- 22. High Efficiency: This power supply features high efficiency, with an efficiency rating of 95.4% at 3x400Vac. This ensures minimal energy loss and maximizes the use of available power, reducing operational costs.;
- 33. Low Inrush Current: The 1606-XLS480F-3 has an ultra-low inrush current, typically 3A peak, which simplifies installation and reduces the risk of power surges. This feature makes it easier to integrate into existing electrical systems without causing disruptions.;
- 44. Active Power Factor Correction: The unit includes active power factor correction, ensuring that the power supply operates efficiently and effectively. This feature helps in maintaining a stable output voltage and reducing harmonic distortion.;
- 55. Reliable Operation: The 1606-XLS480F-3 is designed to support heavy loads, with a reserve power capability of 150% of the rated power for five seconds. This ensures reliable operation even during peak load conditions, making it suitable for applications involving DC motors or capacitive loads.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Stock Status | STOCKED | Dimension Length | 16.256 |
| Dimension Width | 13.716 | Lead Time | 5 |
| Dimension Height | 9.398 | Quick Turnaround | false |
| Preferred Availability | false | Repairable | NOT_REPAIRABLE |
| Weight | 0.998 | Non-operating temperature range | -25...+70 °C, >60 °C with derating |
| Lifetime, min | 51 kh (+40 °C) | Operating temperature | -25 °C |
| Ripple and noise, max | 100 mV | Degree of protection (NEMA) | Other |
| Wall mounting possible | Yes | MTBF | 690 kh (40 °C, SN29500) |
| Special functions | No special function | Type of electric connection | Spring clA connection |
| Degree of protection (IP) | IP20 | Width | 65 mm |
| Direct mounting possible | No | Depth | 127 mm |
| Height | 124 mm | Stabilized | Yes |
| Rail mounting possible | Yes | Output voltage stabilized | Yes |
| Special feature | ABS/GL/RINA (marine) | Rated input current | 0.79A @ 380V AC |
| Input voltage | 380...480V @ AC, 47...63 Hz | Input inrush current | 3 A/3 A |
| Hold-up time | 22 ms | Sub group | Performance family |
| Power losses | 23.1 W typical | External input fuse, min | B-6 A or C-3 A |
| Rated output current | 10A @ 55V DC | Reserve power (typ. 4 s) | 15A @ 48V DC |
| Operational range | 450...780V DC | Power factor | 0.94 typical |
| Output voltage | 48...55V DC | Input inrush current limiter | Active |
| DC OK relay contact | Yes | Derating | 12 w/°c |
| Voltage type of supply voltage | AC/DC | Power output | 480 W |
| Secondary voltage adjustable | Yes | Nominal value output voltage 1 | 48 V |
| Output Voltage Range | 48 -56V DC | Input Circuit Protection | 6 A Slow Blow Fuse or?Cat. No. 1489-A3C060 |
| Efficiency | 95.4% typical |
Specifications may be subject to change without notice
