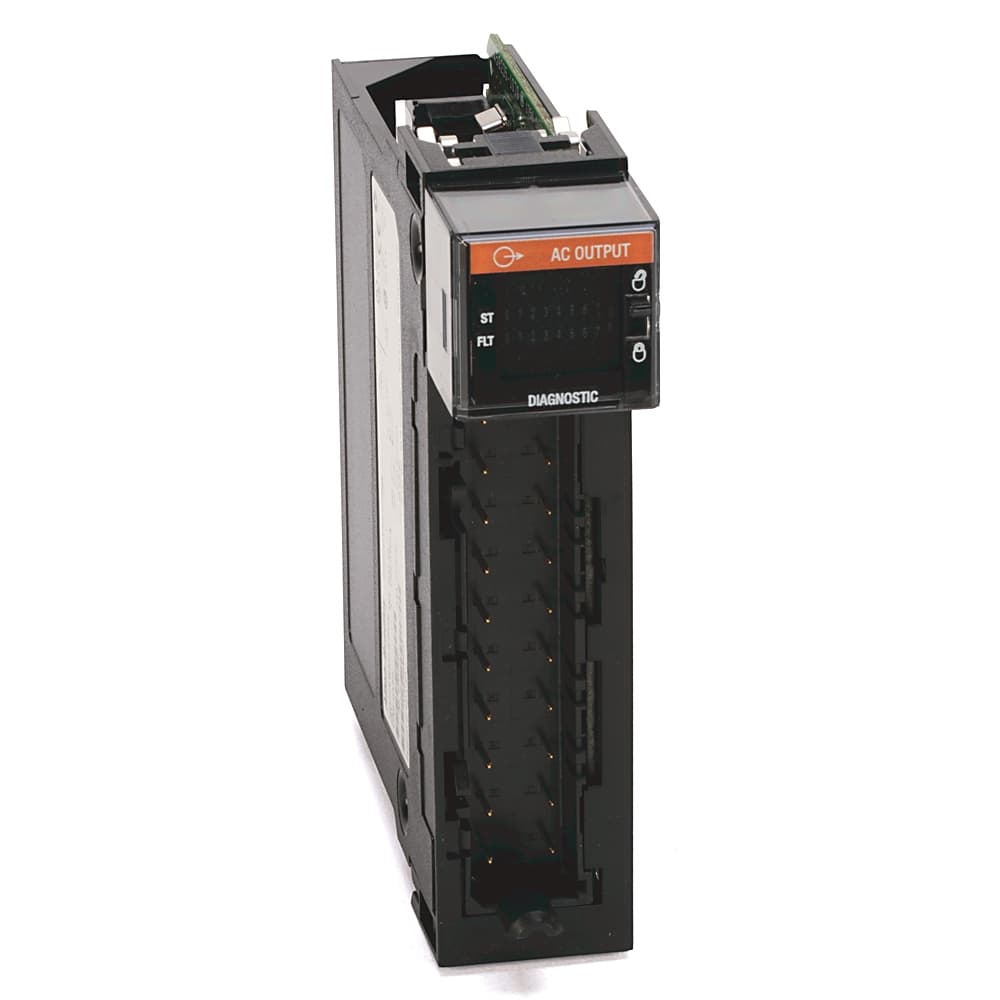

1756-OA8D
Product ID:230609
Updated: 2026/7/14
Key Features
- 11. Reliable Diagnostics: The 1756-OA8D module offers 8 diagnostic outputs, allowing for comprehensive monitoring and troubleshooting of your industrial control system.;
- 22. Electronic Fusing: Each diagnostic output is electronically fused, providing protection against overcurrent conditions and ensuring the module's integrity.;
- 33. Wide Operating Voltage Range: Operating within a 74-132V AC range, this module is versatile and can be easily integrated into various industrial settings.;
- 44. Efficient Design: With a total backplane power of 6.89 W and thermal dissipation of 18.0 BTU/hr, the module is designed to minimize power consumption and heat generation.;
- 55. High Isolation Voltage: The module features an isolation voltage of 125V (continuous), ensuring safe and reliable operation in harsh industrial environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Weight | 0.413 | Stock Status | STOCKED |
| Dimension Length | 22.3 | Dimension Width | 17.7 |
| Lead Time | 5 | Dimension Height | 5.51 |
| Quick Turnaround | false | Preferred Availability | false |
| Repairable | REPAIRABLE | Removable Terminal Block | 1756-TBNH or 1756-TBSH |
| Isolation | 125 V continuous between groups of 4 outputs |
Specifications may be subject to change without notice
