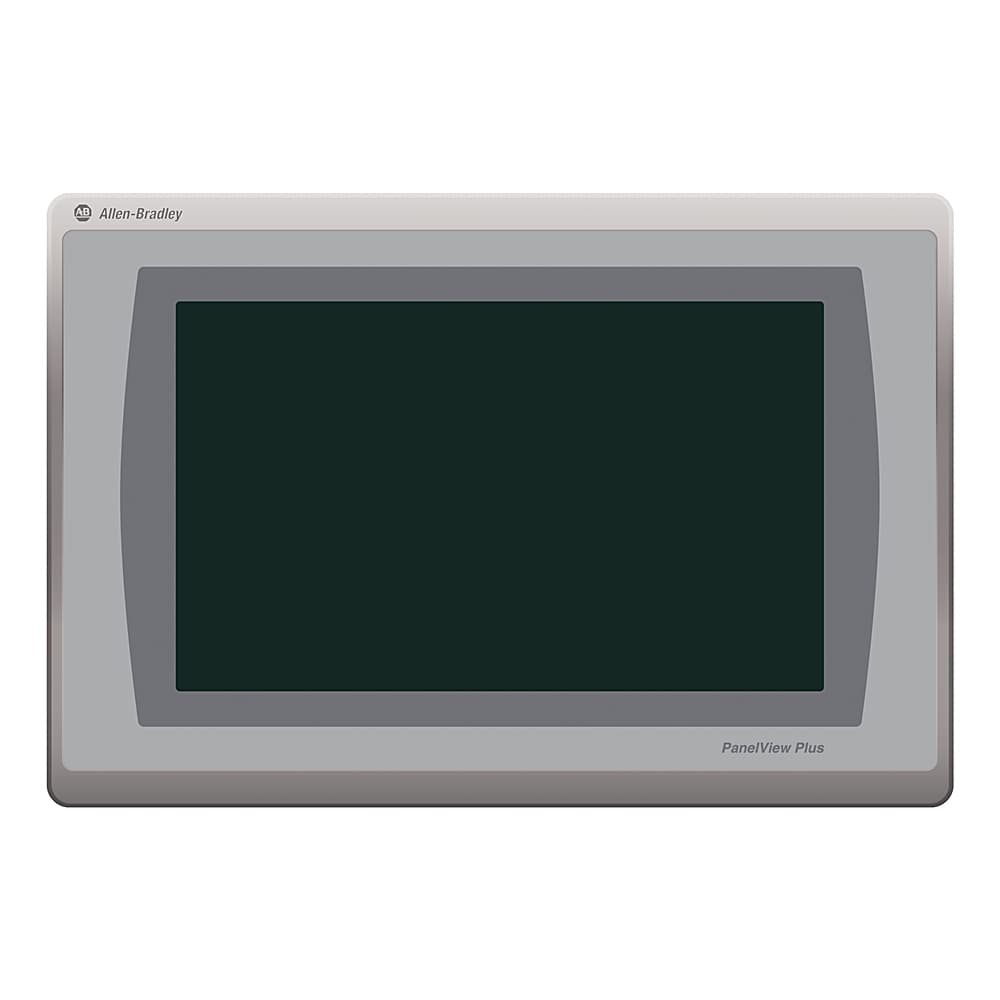

2711P-T9W22D9P
Product ID:231161
Updated: 2026/7/14
Key Features
- 11. Hygienic Stainless Steel Body: The terminal is constructed from 316 stainless steel with a hygienic no. 4A finish, making it suitable for environments requiring high cleanliness standards.;
- 22. High-Resolution Touchscreen: Equipped with a 9-inch TFT color touchscreen featuring 800x480 display resolution, providing clear and vibrant visuals for efficient operation.;
- 33. Dual DLR Ethernet Ports: The terminal includes two Ethernet ports with 10/100Base-T and auto MDI/MDI-X technology, supporting device level ring (DLR) and linear or star network topologies.;
- 44. Enhanced HMI Capabilities: Supports FactoryTalk View Studio for Machine Edition and FactoryTalk Viewpoint version 2.6 or later software, ensuring superior monitoring and human-machine interface capabilities.;
- 55. Reliable Power Supply: Operates within a nominal input voltage of 24V DC, with an operating voltage range of 18-30V DC, ensuring reliable performance in various power conditions.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Weight | 2.42 | Stock Status | STOCKED |
| Dimension Length | 35.9 | Dimension Width | 30.5 |
| Lead Time | 5 | Dimension Height | 18.3 |
| Quick Turnaround | false | Preferred Availability | true |
| Repairable | REPAIRABLE | Input Signal | 24V DC |
| Image Brightness | 300 nits |
Specifications may be subject to change without notice
