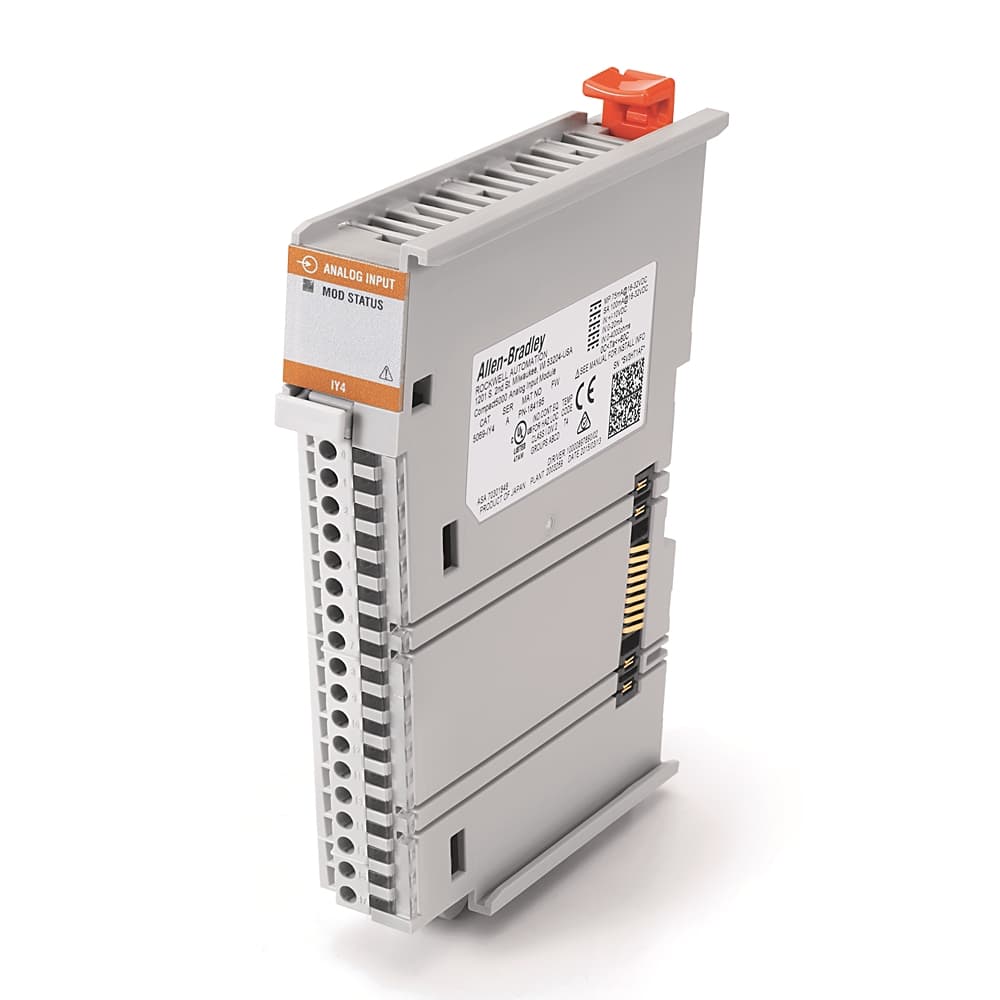

5069-IY4
Product ID:227865
Updated: 2026/4/3
Key Features
- 11. Versatile Input Options: The 5069-IY4 supports differential and single-ended, non-isolated input channels for current, voltage, RTD, and thermocouple inputs, catering to a wide range of applications.;
- 22. High-Speed Communication: Equipped with a high-speed backplane, this module facilitates fast packet transfer rates of 4.4 μs, ensuring efficient data exchange in real-time applications.;
- 33. Robust Design: Designed to operate in a variety of environments, the 5069-IY4 meets IEC 60079-0 and IEC 60079-7 standards for use in Zone 2 classified areas, ensuring reliability in potentially explosive atmospheres.;
- 44. Compact and Durable: With a low footprint of 22mm, this module allows for higher density of I/O in a smaller space, making it ideal for space-constrained installations.;
- 55. Enhanced Module Functions: The module offers enhanced functions such as simple counting, events, scheduled output, and time stamping, enhancing its utility in complex control systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Stock Status | STOCKED | Dimension Length | 13.462 |
| Dimension Width | 18.796 | Lead Time | 5 |
| Dimension Height | 5.08 | Quick Turnaround | false |
| Preferred Availability | true | Repairable | NOT_REPAIRABLE |
| IECEx temp code | T4 | ATEX temp code | T4 |
| Isolation voltage | 250V (continuous), basic insulation type, 50V Functional isolation between SA power and input ports, No isolation between individual input ports | Input impedance | Voltage: >1 M?, Current: 90 ? typical, 70â¦110 ? range, RTD: >1 M?, Thermocouple/mvolt: >1 M? |
| DIN rail | Compatible zinc-plated chromate-passivated steel DIN rail, You can use the EN50022 - 35 x 7.5 mm (1.38 x 0.30 in) | Slot width | 1 |
| Shock | Operating: 30 G, Non operating: 50 G | Vibration | 5 G @ 10...500 Hz |
| Weight | 0.24 | RTB keying | None |
| MOD power passthrough, max | 9.55A @ 18...32V DC | MOD power | 75mA @ 18...32V DC |
| SA power passthrough, max | 9.95A @ 18...32V DC | SA power | 100mA @ 18...32V DC |
| Voltage variation | 10 ms interruption on MOD power port | Nonoperating temperature | -40 °C |
| Radiated RF immunity | 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz | Surge transient immunity | ±1 kV line-line (DM) and ±2 kV line-earth (CM) on power ports, ±2 kV line-earth (CM) on shielded input ports |
| Conducted RF immunity | 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz | Relative humidity | 5...95% noncondensing |
| EFT/B immunity | ±4kV @ 5kHz on power ports, ±3kV @ 5kHz on shielded input ports | ESD immunity | 6 kV contact discharges, 8 kV air discharges |
| Emissions | IEC 61000-6-4 | Operating temperature | 0 °C |
| North American temperature code | T4 | Surrounding air temperature, max | 60 °C |
| Enclosure type | None (open-style) | Depth | 105.42 mm |
| Height | 144.57 mm | Width | 22 mm |
| Thermocouple type/temperature range | Thermocouple Type B: 21â¦1820 °C, 68â¦3308 °F, 293â¦2093 °K, 528â¦3768 °R, Thermocouple Type C: 0â¦2320 °C, 32â¦4208 °F, 273â¦2593 °K, 492â¦4668 °R, Thermocouple Type D: 0â¦2320 °C, 32â¦4208 °F, 273â¦2593 °K, 492â¦4668 °R, Thermocouple Type E: -270â¦1000 °C, -454â¦18 | RTD sensor types/temperature range | 100, 200, 500, 1000 ? PT 385: -200...870 °C, -328...1598 °F, 73...1143 °K, 132...2058 °R, 100, 200, 500, 1000 ? PT 3916: -200...630 °C, -328...1166 °F, 73...903 °K, 132...1626 °R, 10 ? CU 247: -200...260 °C, -328...500 °F, 73...533 °K, 132...960 °R, |
| CJC inputs | Two CJC sensors, 2 thermistors embedded in 5069-RTB14CJC-(screw or spring) RTB, -or- 2 thermistors wired to 5069-RTB18-(screw or spring) RTB, Thermistor type: Measurement specialties, Inc. 10K3A1A, (for thermocouple mode use only) | Resolution, RTD | (16 bit at 10 Hz notch filter) 3 wire mode: <7.9 m?/cnt in 1...500 ? mode, <15.8 m?/cnt in 2...1000 ? mode, <31.7 m?/cnt in 4...2000 ? mode, <63.4 m?/cnt in 8...4000 ? mode |
| Resolution, voltage | 16 bit at 10 Hz notch filter: ±10.5V: <320 μV/count (15 bit plus sign bipolar), 0...10.5V: <160 μV/count (16 bit unipolar), 0...5.25V: <80 μ/V count (16 bit unipolar) | Input type, RTD | 100, 200, 500, 1000 ? platinum, alpha=385, 100, 200, 500, 1000 ? platinum, alpha=3916, 120 ? nickel, alpha=672, 100, 120, 200, 500 ? nickel, alpha=618, 10 ? copper 427 |
| Open circuit detection time, nom | Voltage: + full scale, <2 s, Current: 4...20 mA range, <2 s, RTD: <2 s, Thermocouple / mvolt: + full scale, <10 s | Input notch filter (Hz) selections | 5, 10 (50/60 default), 15, 20, 50, 60, 100, 200, 500, 1000, 2500, 5000, 10000, 15625, 25000, 31250, 62500 |
| Resolution, current | 16 bit at 10 Hz notch filter: 0...21 mA: <0.32 μA/count (16 bit), 3.6...21 mA: <0.27 μA/count (16 bit) | Insulation stripping length | 5069-RTB18-SPRING connections: 10 mm (0.39 in.), 5069-RTB18-SCREW connections: 12 mm (0.47 in.) |
| HART handheld compliance | Add an external 250 ? resistor into the current loop for HART transmitter compliance | Wire impedance | 25 ? maximum for specified accuracy (3-wire RTD mode only) |
| Resolution, thermocouple / millivolt | 16 bit at 10 Hz notch filter: <3.1 μV/cnt in ±100 mV mode | Data value during overload condition | Full scale, overrange flag, Data uncertain / data bad |
| Calibration methods | Factory calibrated, User-performed (optional) | Input range, resistive | 1...500 ?, 2...1000 ?, 4...2000 ?, 8...4000 ? |
| Input digital filter | First order lag, 0 msâ¦32,767 ms (32.767 s) | Normal mode noise rejection ratio | 65 dB @ 50/60 Hz, notch filter dependent |
| Input type, thermocouple | B, C, D, E, J, K, L (TXK/XK), N, R, S, T | Notch filter at minimum RPI | 62.5 kHz (0.2 ms, 1 channel enabled) |
| Input range, voltage | ±10V @ 0...10V, 0...5V | Overcurrent protection, max | Current mode: ±30 mA |
| Common mode noise rejection ratio | 130 dB @ 50/60 Hz | Input range, thermocouple / millivolt | ±100 mV |
| Thermocouple linearization | ITS-90 | Real-time channel sampling | Yes |
| Scaling to engineering units | Yes | Onboard data alarming | Yes |
| Input anti-aliasing filter cutoff frequency, typical | 500 Hz | Notch filter frequency at RPI of 2.5 ms, min | 10 khz |
| Suitable for safety functions | No | Calibrated accuracy | Voltage: 0.100% full scale @ 25 °C Current: 0.100% full scale @ 25 °C RTD: 0.100% full scale @ 25 °C Thermocouple/mvolt: 0.100% full scale @ 25 °C |
| Wire size | 5069-RTB18-SPRING and 5069-RTB14CJCSPRING connections: 0.5...1.5 mm2 (22...16 AWG) solid or stranded shielded copper wire rated at 105 °C (221 °F), or greater, 2.9 mm (0.11 in.), max diam including insulation, single wire connection only, 5069-RTB18-S | Inputs | 4 differential |
| Input Total Unadjusted Error (TUE) | Voltage: 0.300% full Scale, Current: 0.400% full Scale, RTD: 0.300% full Scale, Thermocouple/mvolt: 0.300% full Scale | Accuracy drift with temperature | Voltage: 0.200% full scale, Current: 0.300% full scale, RTD: 0.200% full scale, Thermocouple/mvolt: 0.200% full scale |
| Thermal dissipation, max | Voltage mode: 6.1 BTU/hr, Current mode: 7.2 BTU/hr, RTD mode: 7.2 BTU/hr, Thermocouple/mvolt: 6.1 BTU/hr | Indicators | 1 green/red module status indicator, 4 yellow/red I/O status indicators, 2 yellow/red CJC status indicators |
| Power dissipation, max | Voltage mode: 1.8 W, Current mode: 2.1 W, RTD mode: 2.1 W, Thermocouple / mvolt mode: 1.8 W | Wire category | 2 - shielded input ports, 2 - power ports, 1 wire per terminal for each signal port |
| Data format | IEEE 32-bit floating point | Common mode voltage | ±10V (Current mode and 3-wire RTD mode), ±2V (Voltage mode) |
| Overvoltage protection, max | Voltage, current, RTD, and thermocouple/mV modes: ±30V DC | RTB torque | 5069-RTB18-SCREW, 5069-RTB14CJC-SCREW: 0.4 Nm (3.5 lbin) |
| Module conversion method | Sigma-Delta, One 24-bit multiplexed ADC | Step response time to 63% of value | 7.5 ms (Notch filter 10 kHz) |
| Scan time | Per channel: 625 μs, Per group: 2.5 ms | Module keying | Electronic keying via progming software |
| RTD excitation current | 600 μA, 3 wire mode, 100 μA, 2 wire mode | Remote CJC sensor accuracy | Based on specified thermistor: ±0.3 °C |
| Input range, current | 0...20mA @ 4....20mA | Local CJC sensor accuracy | ±0.3 °C |
| Type of electric connection | Screw-/spring clA connection | Analogue outputs configurable | No |
| Analogue inputs configurable | Yes | Output, voltage | No |
| Output, current | No | Input, thermocouple | Yes |
| Input, resistance thermometer | Yes | Input, resistor | Yes |
| Input, voltage | Yes | Input, current | Yes |
| Number of analogue inputs | 4 | Output Signal | Analog |
| Number Of Channels | 4 Channel |
Specifications may be subject to change without notice
